Product Details

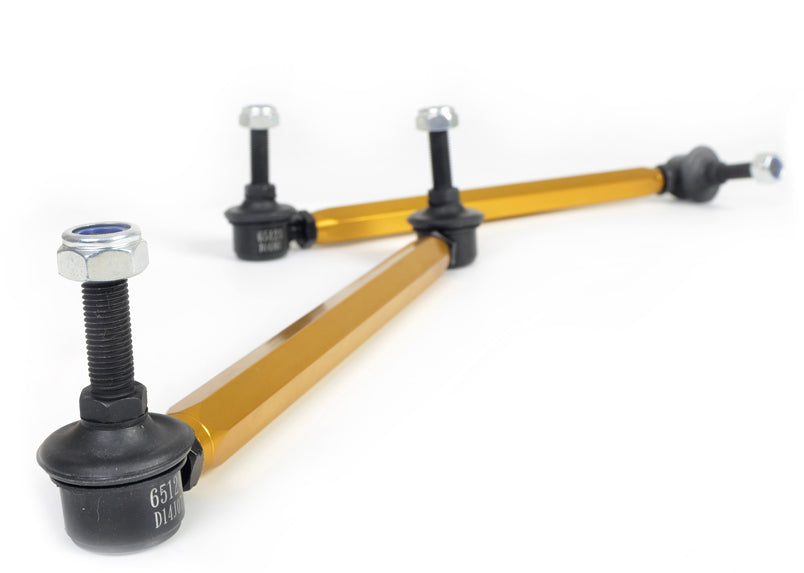

This Whiteline Adjustable Front Sway Bar Link fits the 2012-2018 Ford Focus. Placement: front. Whiteline part number: KLC163. In the box: 2 links.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Expect a moderate job of about 1 hour. No alignment is needed afterward. Working on the same car? We also list Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and Front Sway Bar Link for the Focus.
Features
- Anodized alloy: The alloy is anodized, adding a durable protective layer.
- Install guide: Step-by-step installation instructions come with it.
- Construction: The body is made from high-grade alloy for strength without added weight.
- Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
- Rigid design: A stiffer design than the factory part gives a more immediate response.
Specifications
| Part Number | KLC163 |
| Part Name | Sway Bar Link |
| Vehicle | 2012-2018 Ford Focus |
| Chassis Code | C346 |
| Drivetrain | FWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 270-295 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Length 270-295mm. Bolt Diameter 10mm. |
Fitment for Focus sway bar links
Fits the 2012-2018 Ford Focus. Each model year is listed below.
