Product Details

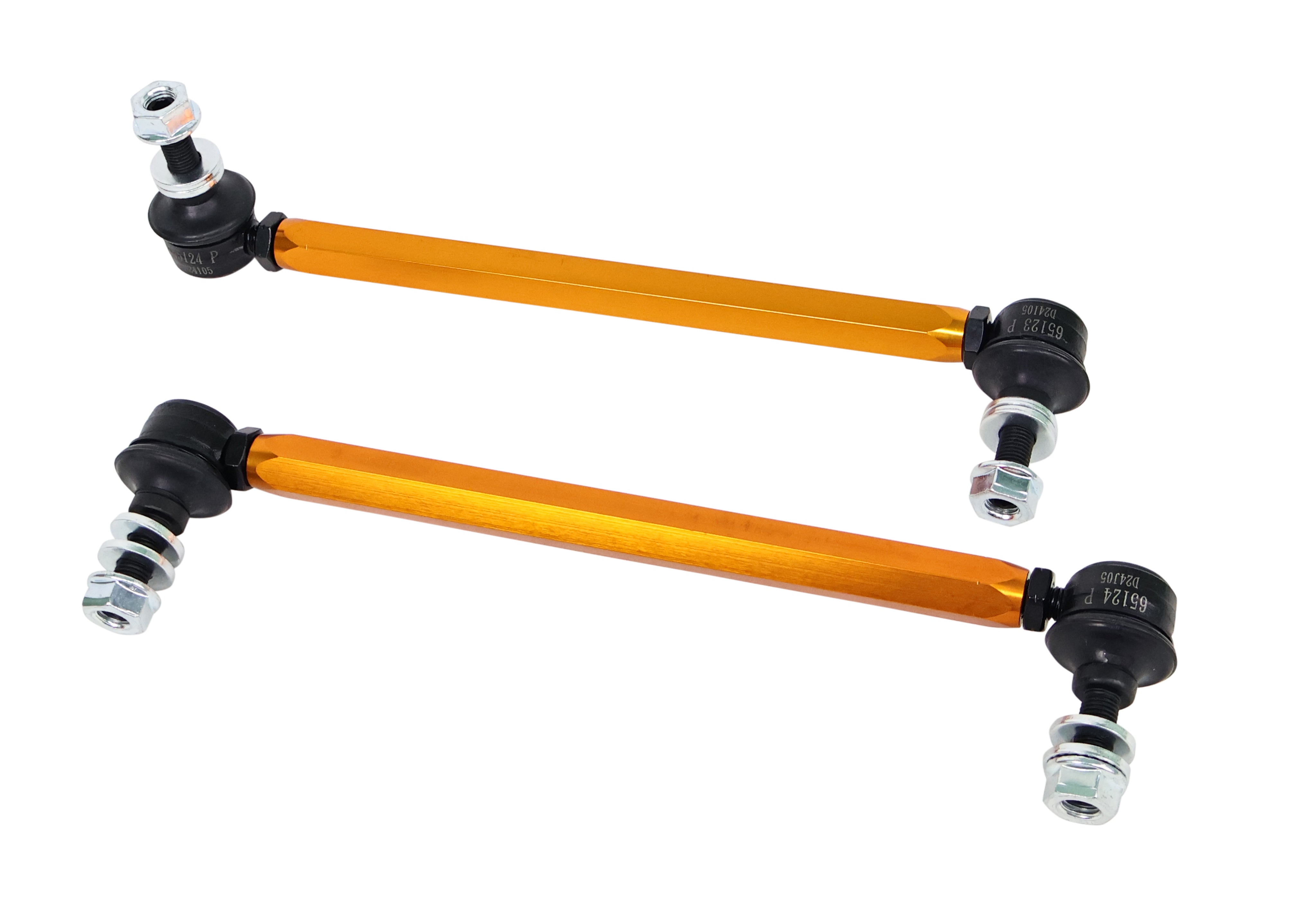

This Whiteline Adjustable Front Sway Bar Link fits the 2003-2008 BMW Z4 (E85/E86). The kit contains 2 links. Whiteline part number: KLC163. Position: front.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. Other Whiteline parts we list for the BMW Z4: Adjustable Rear Sway Bar Link, Rear Trailing Arm Lower Front Bushing, and Rear Sway Bar Mount Bushing Kit.

Features

  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
Specifications
Part Number KLC163
Part Name Sway Bar Link
Vehicle 2003-2008 BMW Z4
Chassis Code E85/E86
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003BMWZ4RWDLength 270-295mm. Bolt Diameter 10mm.
2004BMWZ4RWDLength 270-295mm. Bolt Diameter 10mm.
2005BMWZ4RWDLength 270-295mm. Bolt Diameter 10mm.
2006BMWZ4RWDLength 270-295mm. Bolt Diameter 10mm.
2007BMWZ4RWDLength 270-295mm. Bolt Diameter 10mm.
2008BMWZ4RWDLength 270-295mm. Bolt Diameter 10mm.
