Product Details

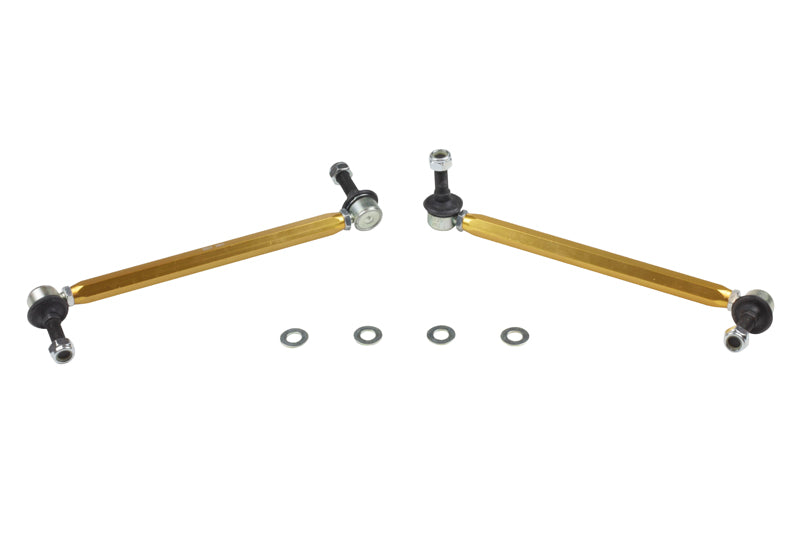

This Whiteline Adjustable Front Sway Bar Link fits the 2020-2023 Subaru Outback (BT). Chassis code: BT. This part is for the front of the vehicle. Part number KLC175. Application note: Adjustable Extra Heavy Duty. The kit contains 2 links.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the Outback, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and Rear Trailing Arm Lower Front Bushing.
Features
- Anodized alloy: The alloy carries an anodized finish for durability.
- Hardware: Hardware supplied: locking nuts and washers.
- Construction: Made from strong, light alloy.
- Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
- Preload-free setup: Setting the length on the car lets the bar rest without preload.
- Install guide: An install guide comes in the box.
Specifications
| Part Number | KLC175 |
| Part Name | Sway Bar Link |
| Vehicle | 2020-2023 Subaru Outback |
| Chassis Code | BT |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 285-305 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 285-305mm. Bolt Diameter 12mm. |
Fitment for Outback sway bar links
Fits the 2020-2023 Subaru Outback (BT). Each model year is listed below.
