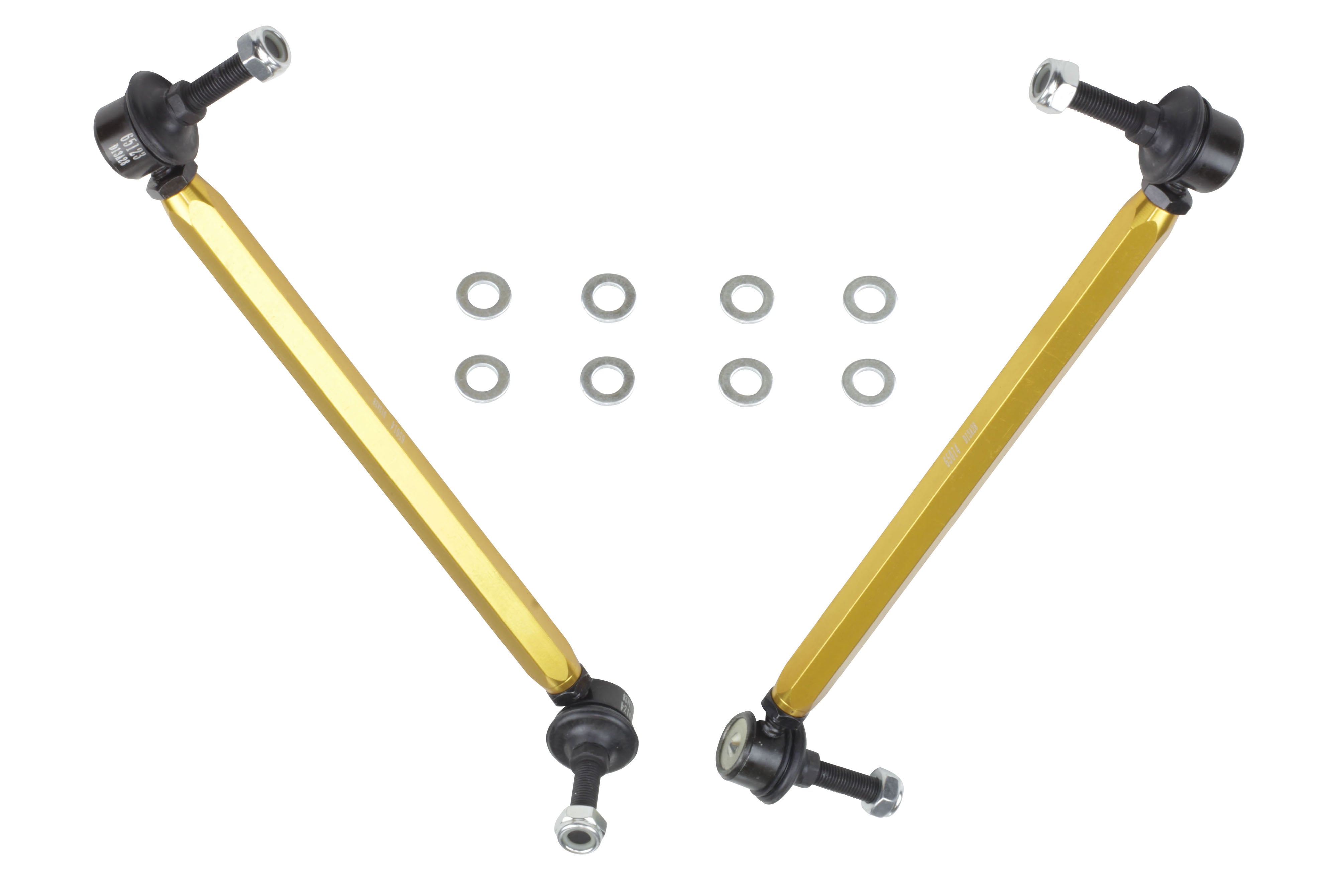

This Whiteline Adjustable Front Sway Bar Link fits the 2007-2008 BMW 335xi 3 Series (E90/E91/E92/E93). Whiteline part number: KLC154. Whiteline's note for this fit: Adjustable extra heavy duty. Chassis code: E90/E91/E92/E93. In the box: 2 links and 8 washers. Position: front.
Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. To go with it on the 335xi 3 Series, see Rear Subframe Mount Bushing, Rear Differential Mount Bushing, and Front Lower Radius Arm Bushing.
Features
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Install guide: Instructions for fitting are packed in the box.
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Construction: Alloy construction keeps the weight down while handling the loads.
Specifications
| Part Number | KLC154 |
| Part Name | Sway Bar Link |
| Vehicle | 2007-2008 BMW 335xi 3 Series |
| Chassis Code | E90/E91/E92/E93 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 8 Washers |
| Length | 290-315 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm. |
