Product Details

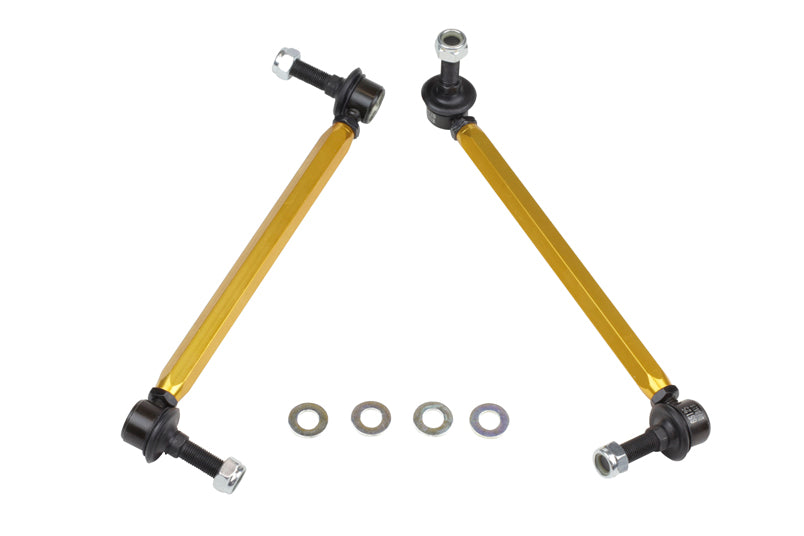

This Whiteline Adjustable Front Sway Bar Link Adjustable fits the 2014-2019 Toyota Corolla (E170/E180). Order it as part number KLC169. Application note: Adjustable Extra Heavy Duty. Position: front. Included: 2 links.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. Other Whiteline parts we list for the Corolla: 17mm Adjustable Front Camber Bolts, Front Lower Inner Rear Control Arm Bushing Kit, and 22.2mm Front Sway Bar Mount Bushing Kit.

Features

  • Hardware: Also in the box: locking nuts and washers.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Install guide: Instructions for fitting are packed in the box.
Specifications
Part Number KLC169
Part Name Sway Bar Link
Vehicle 2014-2019 Toyota Corolla
Chassis Code E170/E180
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 270-295 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2014ToyotaCorollaFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2015ToyotaCorollaFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2016ToyotaCorollaFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2017ToyotaCorollaFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2018ToyotaCorollaFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
2019ToyotaCorollaFWDAdjustable Extra Heavy Duty. Length 270-295mm. Bolt Diameter 10mm.
