Product Details

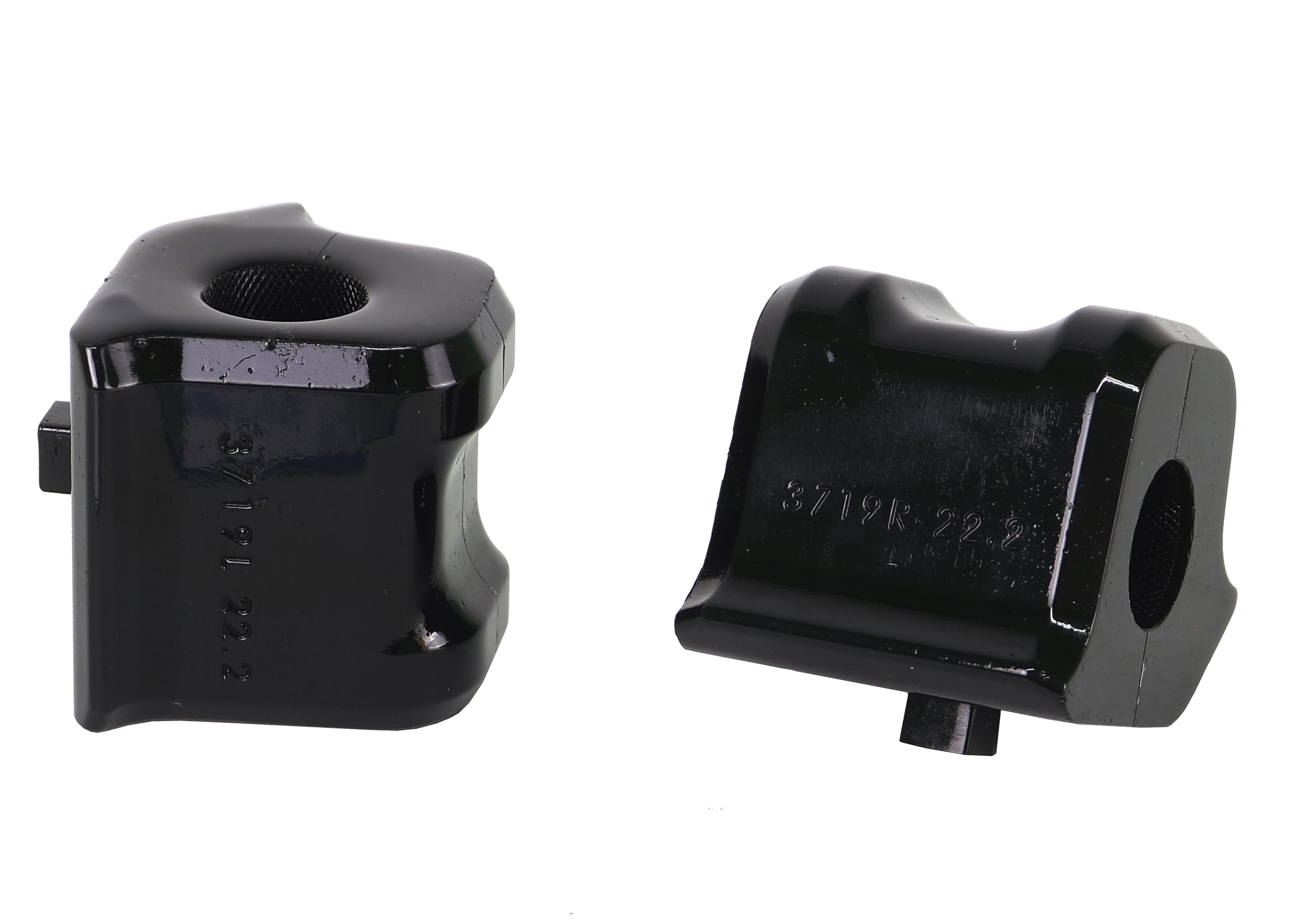

This Whiteline 22.2mm Front Sway Bar Mount Bushing Kit fits the 2014-2019 Toyota Corolla. The part number is W23807. Position: front. In the box: 2 bushings.
A bar that moves in its mounts is a bar that is not working. Replacing soft or worn mount bushings keeps it centered and lets it start resisting body roll from the first degree of lean. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. Working on the same car? We also list Front Sway Bar Link Assembly, Front Lower Inner Rear Control Arm Bushing Kit, and 17mm Adjustable Front Camber Bolts for the Corolla.
Features
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Serviceable: A grease fitting lets the part be serviced later.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Install guide: Written install instructions are included with the part.
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
Specifications
| Part Number | W23807 |
| Part Name | Sway Bar Bushings |
| Vehicle | 2014-2019 Toyota Corolla |
| Chassis Code | E170/E180 |
| Bar Diameter | 22.2 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 2 |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | Yes |
| Inside Diameter | 22.2 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bushings |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | - |
