Product Details

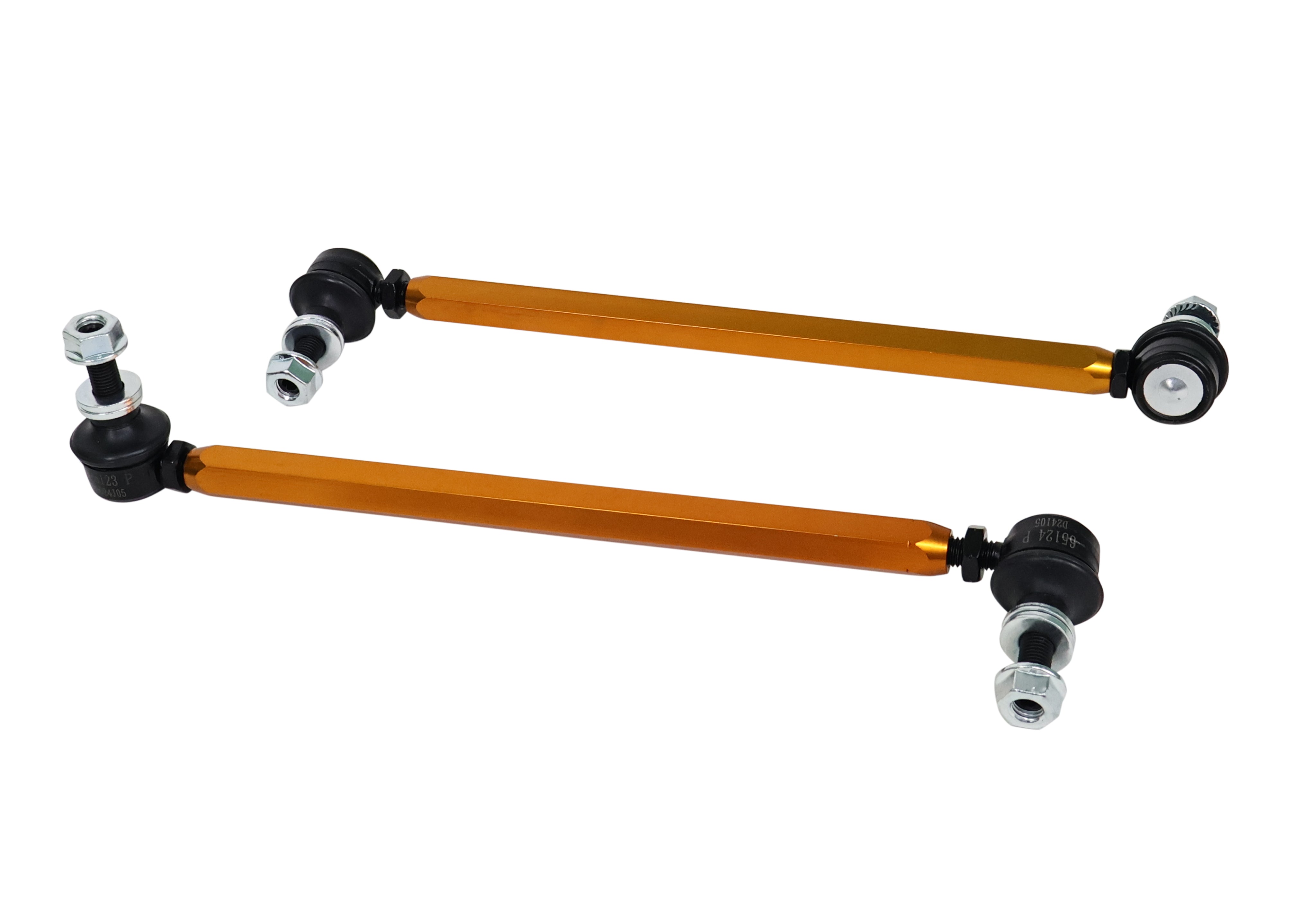

This Whiteline Adjustable Front Sway Bar Link Adjustable fits the 2009-2014 Honda Fit (GE). The kit contains 2 links. Application note: Adjustable extra heavy duty. The part number is KLC176. Placement: front. Chassis code: GE.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. We also list 14mm Adjustable Front Camber Bolts and Rear Lower Inner Control Arm Bushing Kit for the Honda Fit.

Features

  • Hardware: Also in the box: locking nuts and washers.
  • Construction: Alloy construction keeps the weight down while handling the loads.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Install guide: An install guide comes in the box.
Specifications
Part Number KLC176
Part Name Sway Bar Link
Vehicle 2009-2014 Honda Fit
Chassis Code GE
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 310-335 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 310-335mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009HondaFitFWDAdjustable extra heavy duty. Length 310-335mm. Bolt Diameter 10mm.
2010HondaFitFWDAdjustable extra heavy duty. Length 310-335mm. Bolt Diameter 10mm.
2011HondaFitFWDAdjustable extra heavy duty. Length 310-335mm. Bolt Diameter 10mm.
2012HondaFitFWDAdjustable extra heavy duty. Length 310-335mm. Bolt Diameter 10mm.
2013HondaFitFWDAdjustable extra heavy duty. Length 310-335mm. Bolt Diameter 10mm.
2014HondaFitFWDAdjustable extra heavy duty. Length 310-335mm. Bolt Diameter 10mm.
