Product Details

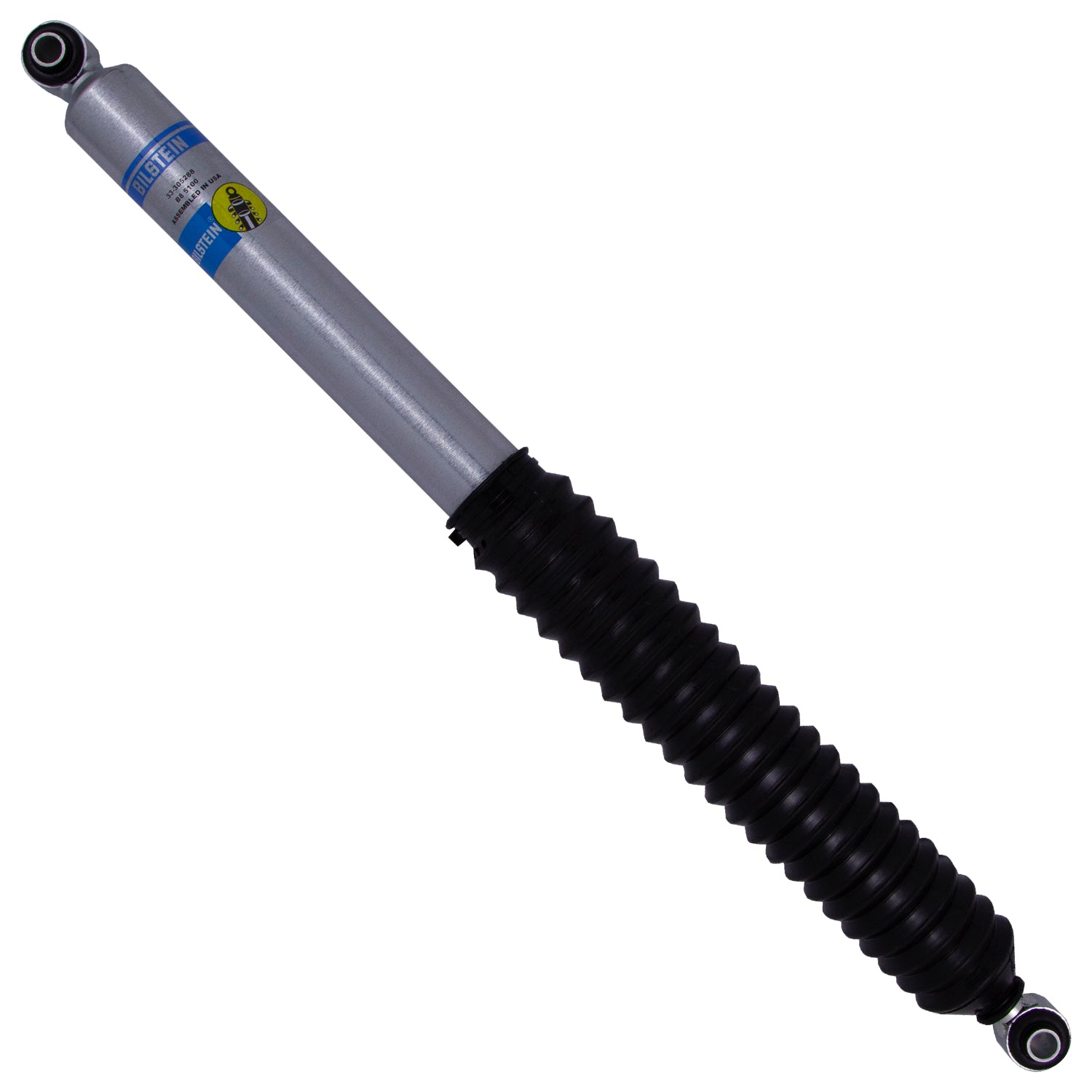

Lifting or leveling a 2020-2026 Jeep Gladiator (JT) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Specifications
| Part Number | 33-305288 |
| Part Name | Shock Absorber |
| UPC | 651860865089 |
| Vehicle | 2020-2026 Jeep Gladiator |
| Chassis Code | JT |
| Drivetrain | 4WD |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length | 17.91 in. (455mm) |
| Extended Length | 28.41 in. (721.7mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1mm |
| Piston Diameter | 46mm |
| Vehicle Placement | Rear |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 5100 |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 10.5 in. (266.7mm) |
| Upper Mount Type | Eye 14.1mm |
| Notes | Fits Vehicles With 1.5-2.5" Rear Lift; Requires appropriate bump stop extensions |
