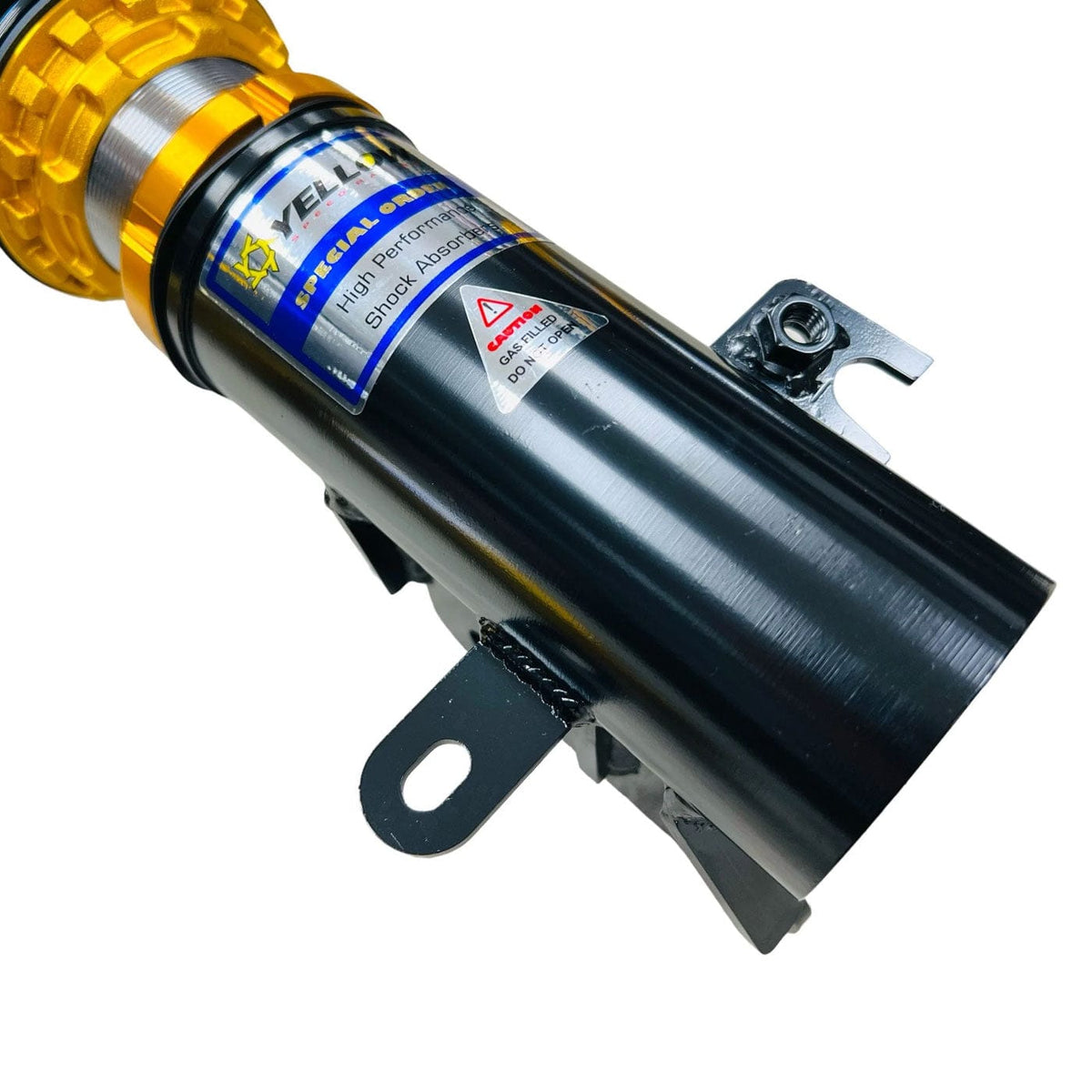

Yellow Speed Racing Gravel Rally coilovers for the BMW 3 Series

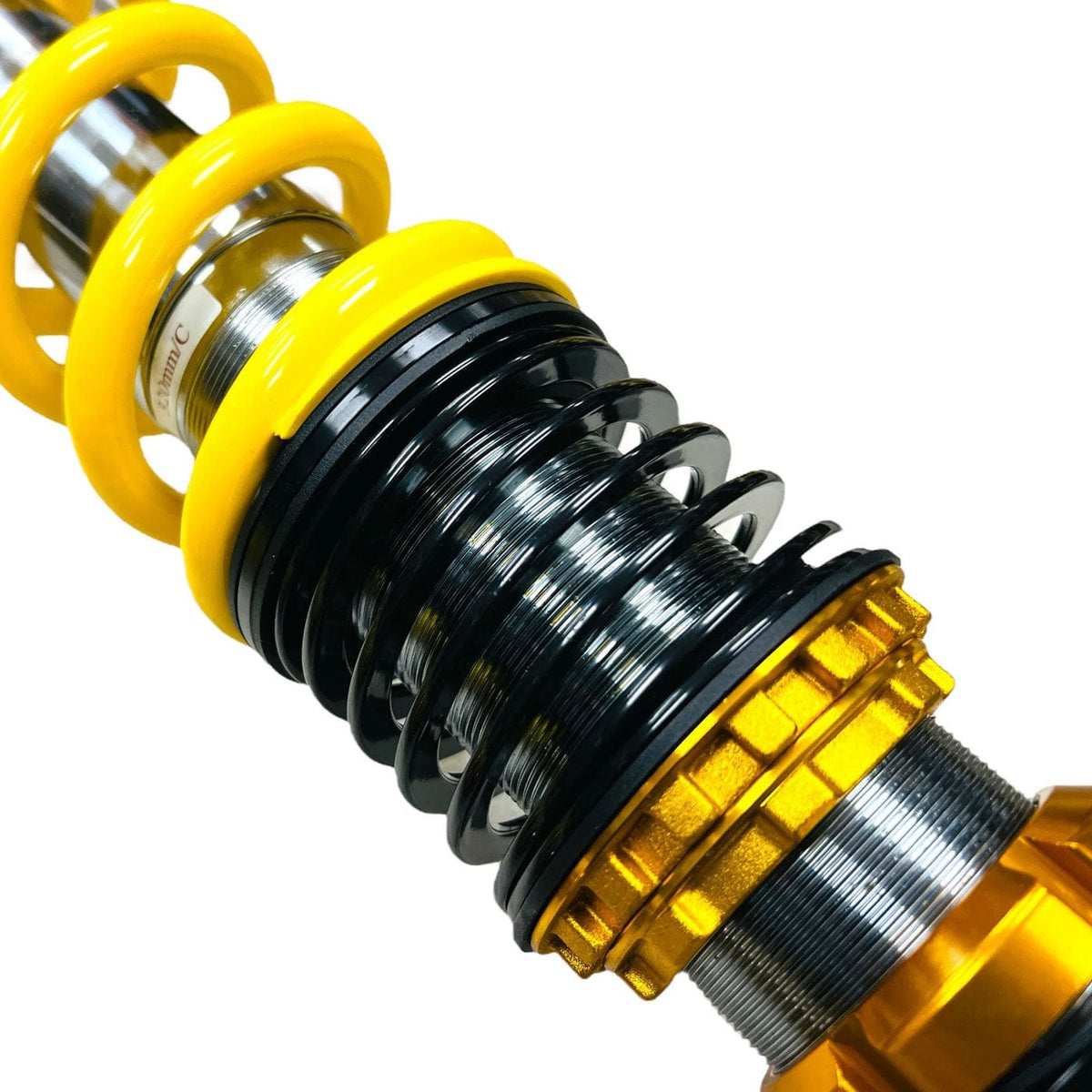

Yellow Speed Racing Gravel Rally coilovers for the BMW 3 Series, spring and height adjuster

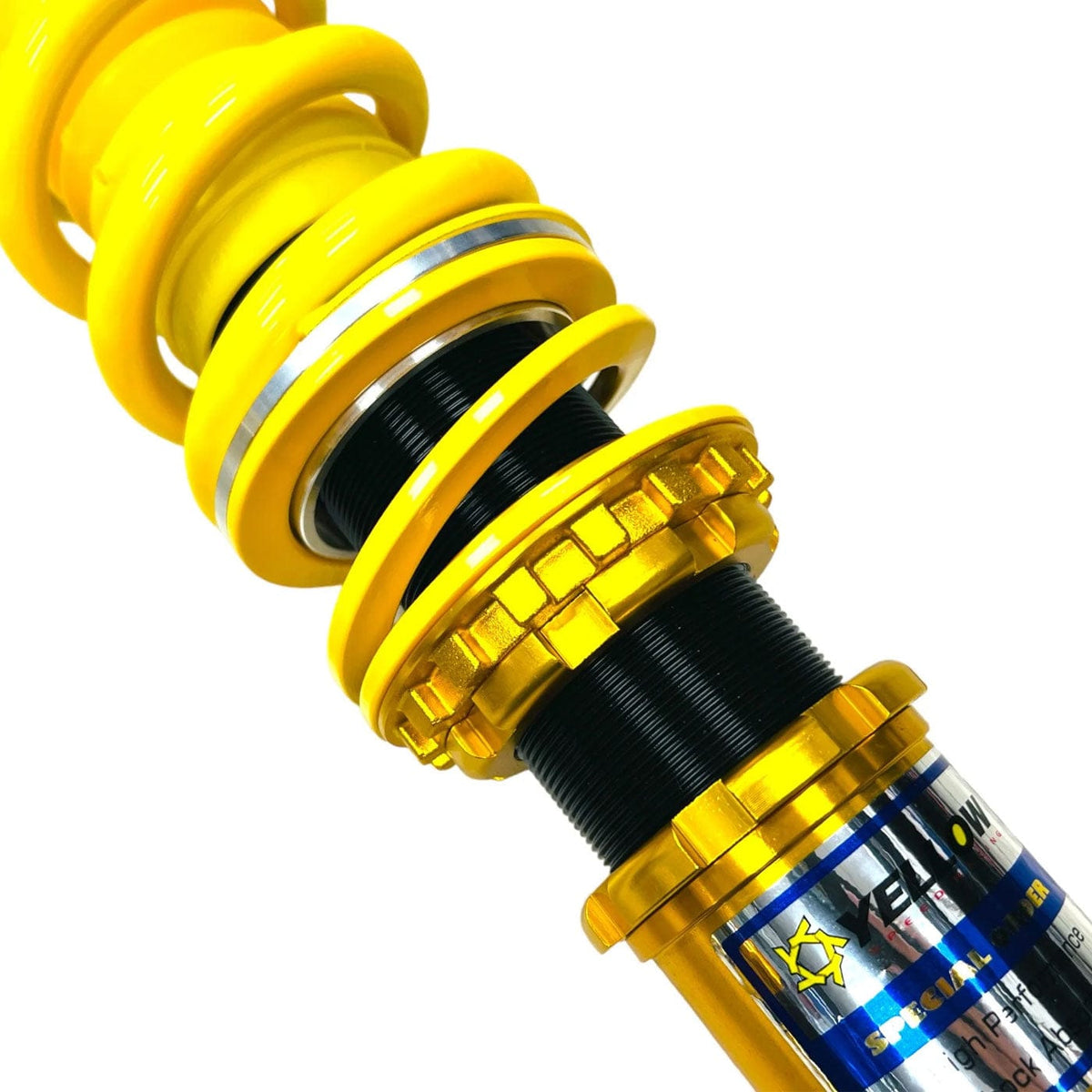

Yellow Speed Racing Gravel Rally coilovers for the BMW 3 Series, spring and height adjuster

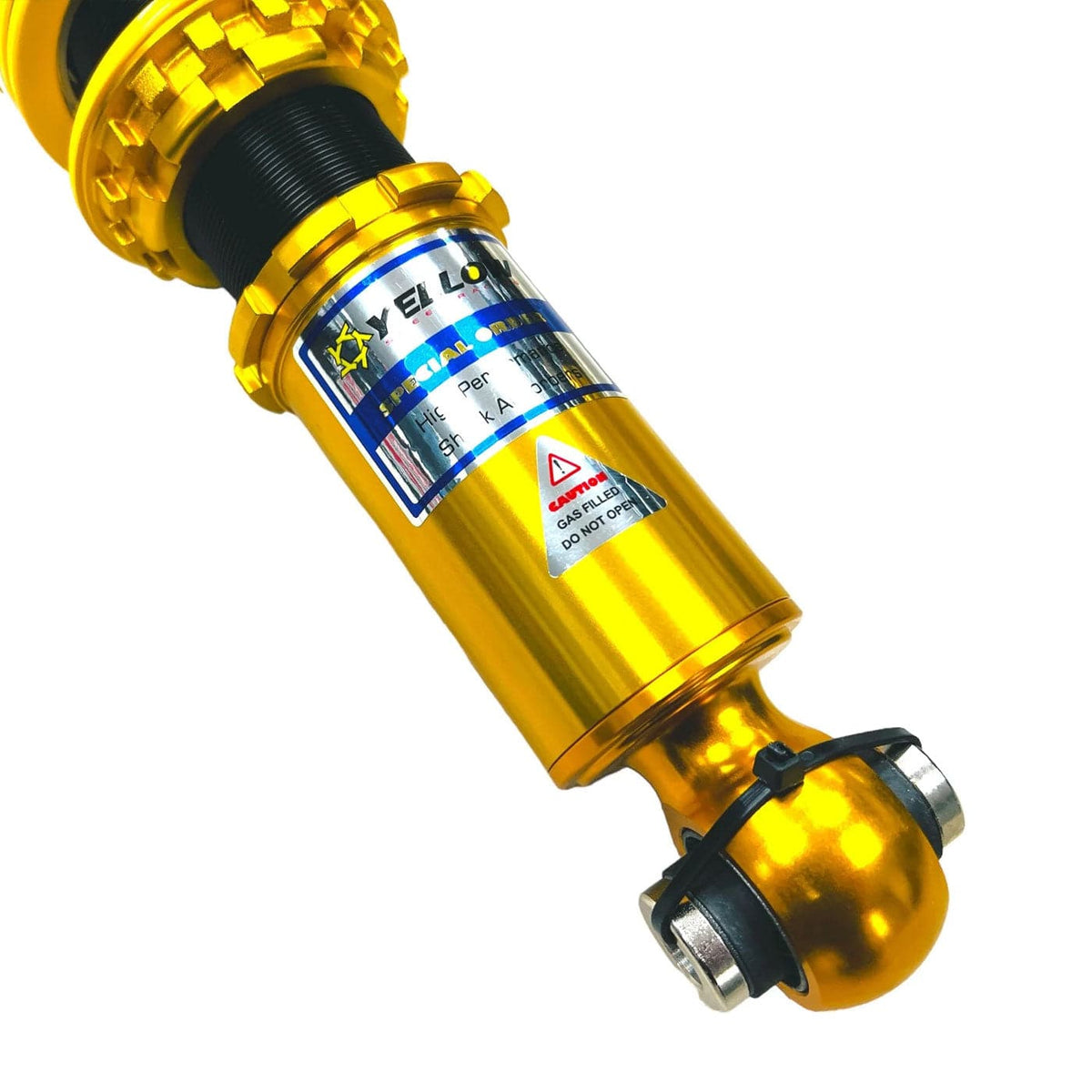

Yellow Speed Racing Gravel Rally coilovers for the BMW 3 Series

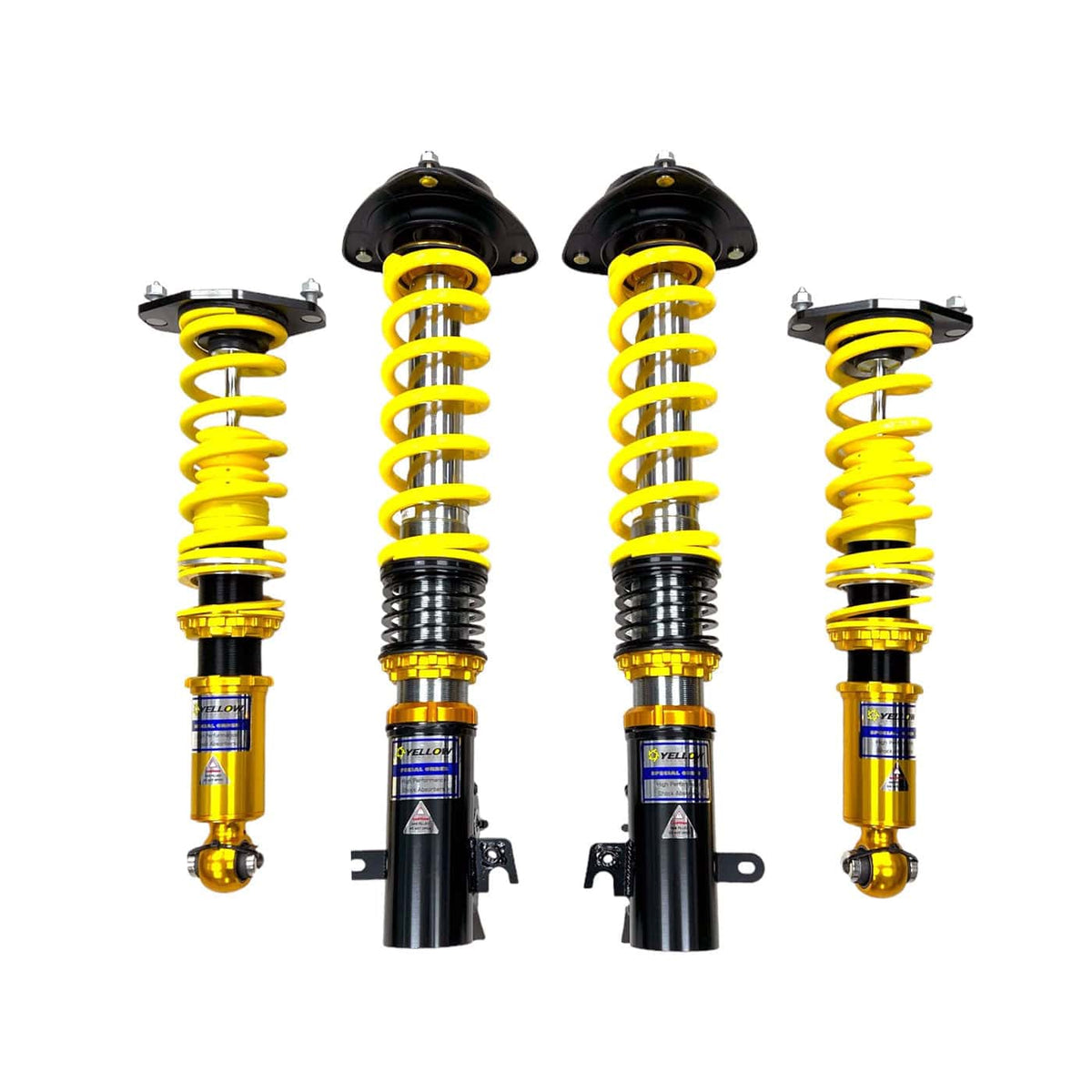

Yellow Speed Racing Gravel Rally coilovers for the BMW 3 Series

Yellow Speed Racing

|

SKU: YS01-BM-1GR014

Yellow Speed Gravel Rally Coilovers for 2012-2018 BMW 3 Series AWD Camber Plate (F30/F31) 5 Bolt Front Upper Mount, (1GR014)

$1,975.00

MSRP $2,280.00 You save $305.00

Ask a question
Built to Order

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Tariff Notice

Please note that effective August 29, this product will be subject to a tariff if out of stock or special order, as it will be shipping from the manufacturer in Taiwan. Any applicable tariff charges will be billed by the shipping carrier and must be paid by the customer prior to delivery.

Suspension of Duty-Free De Minimis Treatment

Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In Stock: 1 business day
  • Out of Stock: 2-3 weeks
  • Custom-Builds: 2-4 weeks
  • Special Order: 2-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

1-Year Manufacturer Warranty

All Yellow Speed Racing coilovers, air suspension kits, big brake kits, and accessories are for offroad use or Motorsports use only. Our products are not to be installed on vehicles that will be driven on public roadways. The YSR USA warranty is limited to the United States and Canada. Shipping cost for warranty items is not covered under our limited warranty. YSR USA warranties its products to the original retail customer against defects in workmanship and material.

More Information

Product Details

These Yellow Speed Gravel Rally coilovers fit the 2012-2018 BMW 3 Series AWD Camber Plate 5 Bolt Front Upper Mount, (1GR014). They are purpose-built for gravel rally competition and demanding off-road conditions. Featuring additional lower mount reinforcement, thicker upper mounts when applicable, and approximately 2 inches or more of additional ride height over factory setting with similar to OEM suspension travel, this system is engineered to withstand the extreme demands of rally stages.

The Gravel Rally system offers 1-way damping adjustment, allowing drivers to fine-tune compression and rebound characteristics to match varying terrain conditions. Full-length ride height adjustment via the lower bracket allows stance and weight distribution tuning without compromising suspension travel.

Each Yellow Speed Racing Gravel Rally coilover system is built to order, ensuring precise assembly and quality control for every application.

Features

  • 1-way damping adjustment for terrain-specific tuning
  • Reinforced lower mounts for gravel rally durability
  • Thicker upper mounts when applicable for increased strength
  • Approximately 2" or more additional ride height over factory setting
  • Similar to OEM suspension travel maintained
  • Full-length ride height adjustment via lower bracket
  • High-rigidity SAE9254 steel springs for long-term durability
  • Built to order for precise fitment and quality assurance

Specifications

Part Number YS01-BM-1GR014
Part Name Yellow Speed Gravel Rally Coilovers
Vehicle 2012-2018 BMW 3 Series AWD
Chassis Code F30/F31
Drivetrain AWD
Suspension Design - Front Inverted / True Coilover
Suspension Design - Rear Standard / True Coilover
Upper Mount - Front Standard: Rubber Upper Mount
Optional: Pillowball Upper Mount with Camber Plate
Upper Mount - Rear Steel Upper Mount
Spring Rate - Front 5 Kg/mm
Spring Rate - Rear 5 Kg/mm
Damping Adjustment 1-Way
Custom Spring Rates Available upon request
Notes AWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012BMW320iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2012BMW328dAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2012BMW328iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2012BMW330iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2012BMW335iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2012BMW340iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2013BMW320iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2013BMW328dAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2013BMW328iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2013BMW330iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2013BMW335iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2013BMW340iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2014BMW320iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2014BMW328dAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2014BMW328iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2014BMW330iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2014BMW335iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2014BMW340iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2015BMW320iAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
2015BMW328dAWDAWD, X-Drive; 5 bolts on front upper mount; EDC equipped models; cancellation kit needed to prevent dash light; Rear shock & spring combined (True Coilover); Current lead time is around 4-6 weeks
