Product Details

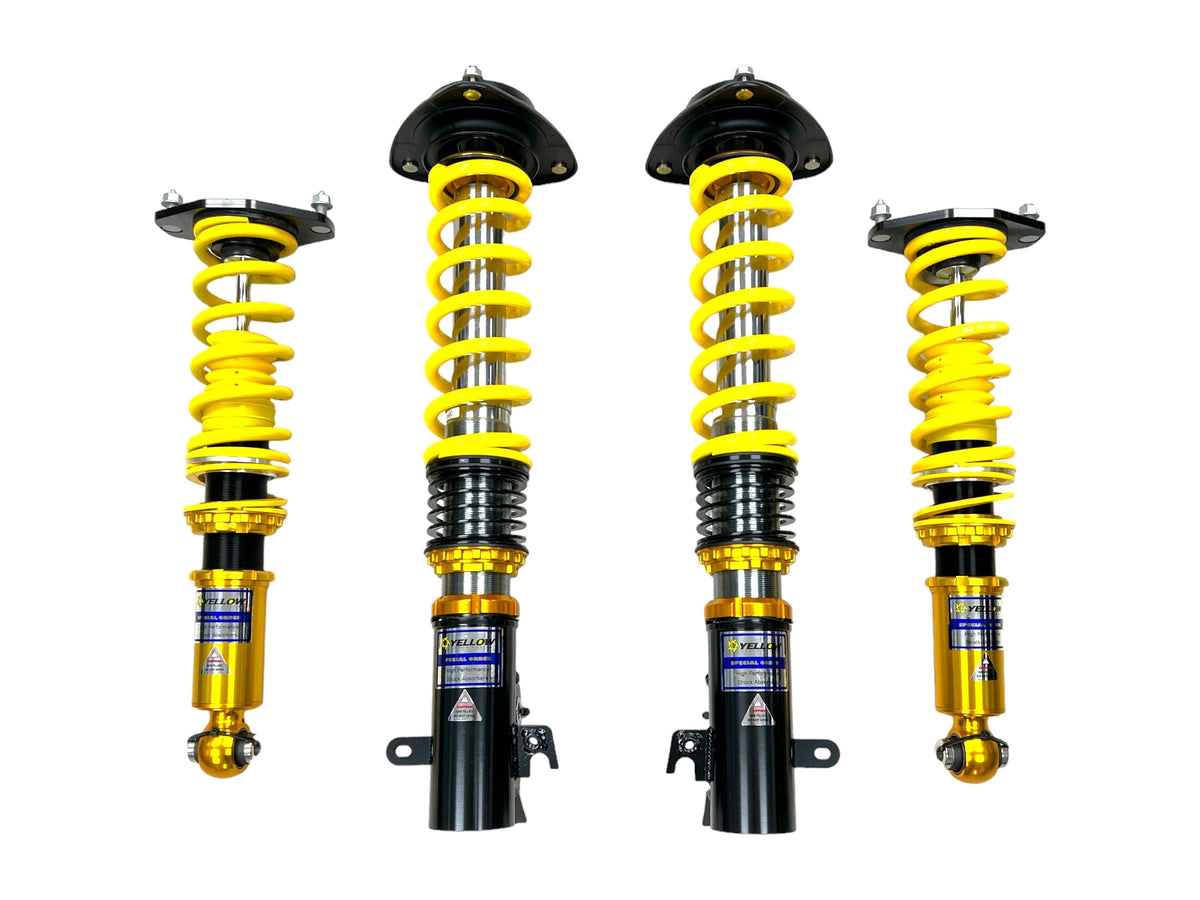

Yellow Speed Racing Dynamic Pro Gravel Rally Coilovers for the 1995-1999 BMW M3 (E36) are an affordable coilover option for drivers who prefer off-road racing to normal track racing. This is part number YS01-BM-1GR003-PBU2.
The kit has long shock travel similar to the OEM travel, and raises the vehicle 1.5 inches or more above factory height at the tallest setting, depending on the application. The lower bracket is designed for added rigidity and strength. On MacPherson strut applications an inverted monotube design reduces heat transfer from the brake system to the damping oil. Each application is test fit and road tested.
Features
- 33 levels of damping force adjustment
- Long shock travel, similar in length to OEM travel
- Raises the vehicle 1.5 inches or more over factory height at the tallest setting, depending on the application

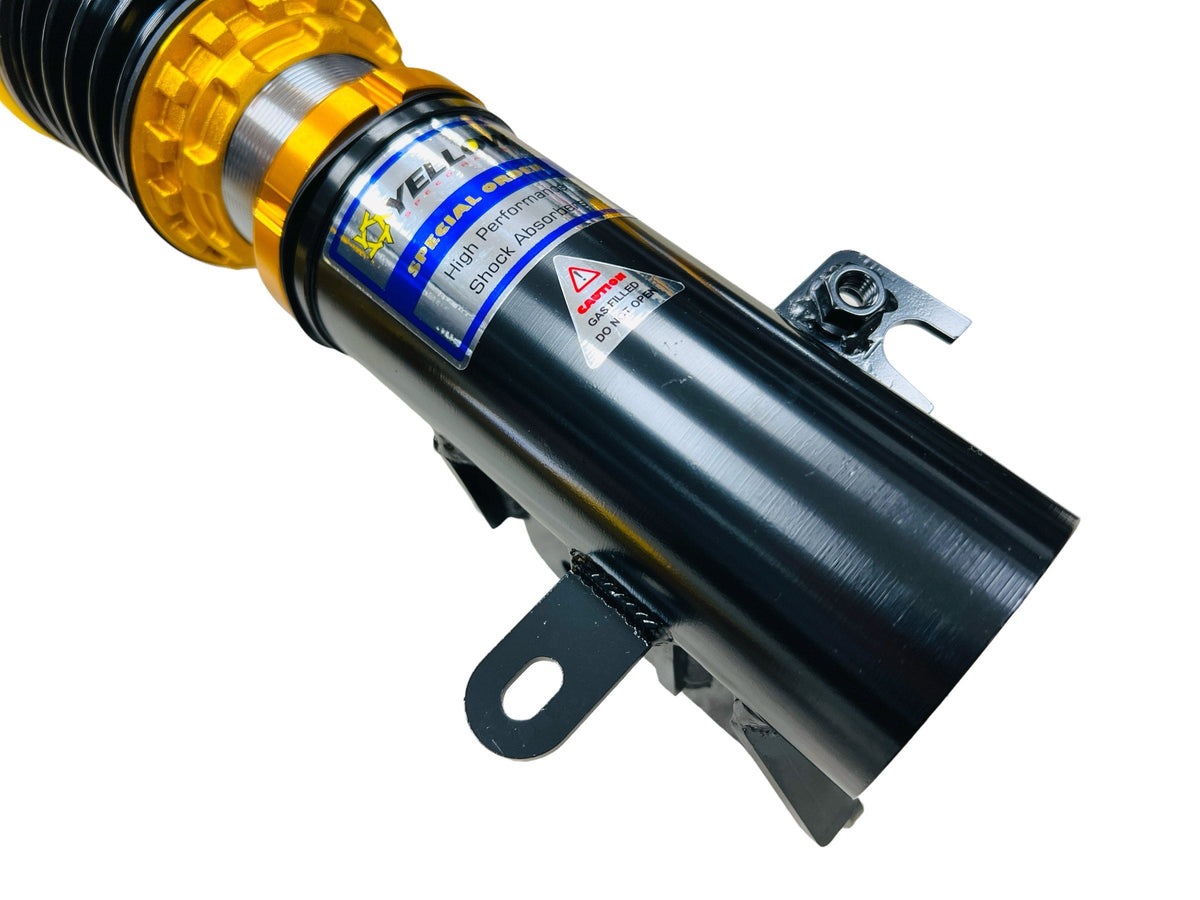

- Lower bracket designed for added rigidity and strength
- 55mm shock bodies with a monotube inverted shock insert
- Hand built and made to order
Specifications
| Part Number | YS01-BM-1GR003-PBU2 |
| Part Name | Yellow Speed Gravel Rally Coilovers |
| Vehicle | 1995-1999 BMW M3 |
| Drivetrain | RWD |
| Placement | Front & Rear |
| Chassis Code | E36 |
| Damping Adjustment | 1-Way (33 levels) |
| Spring Rate - Front | 5 kg/mm |
| Spring Rate - Rear | 5 kg/mm |

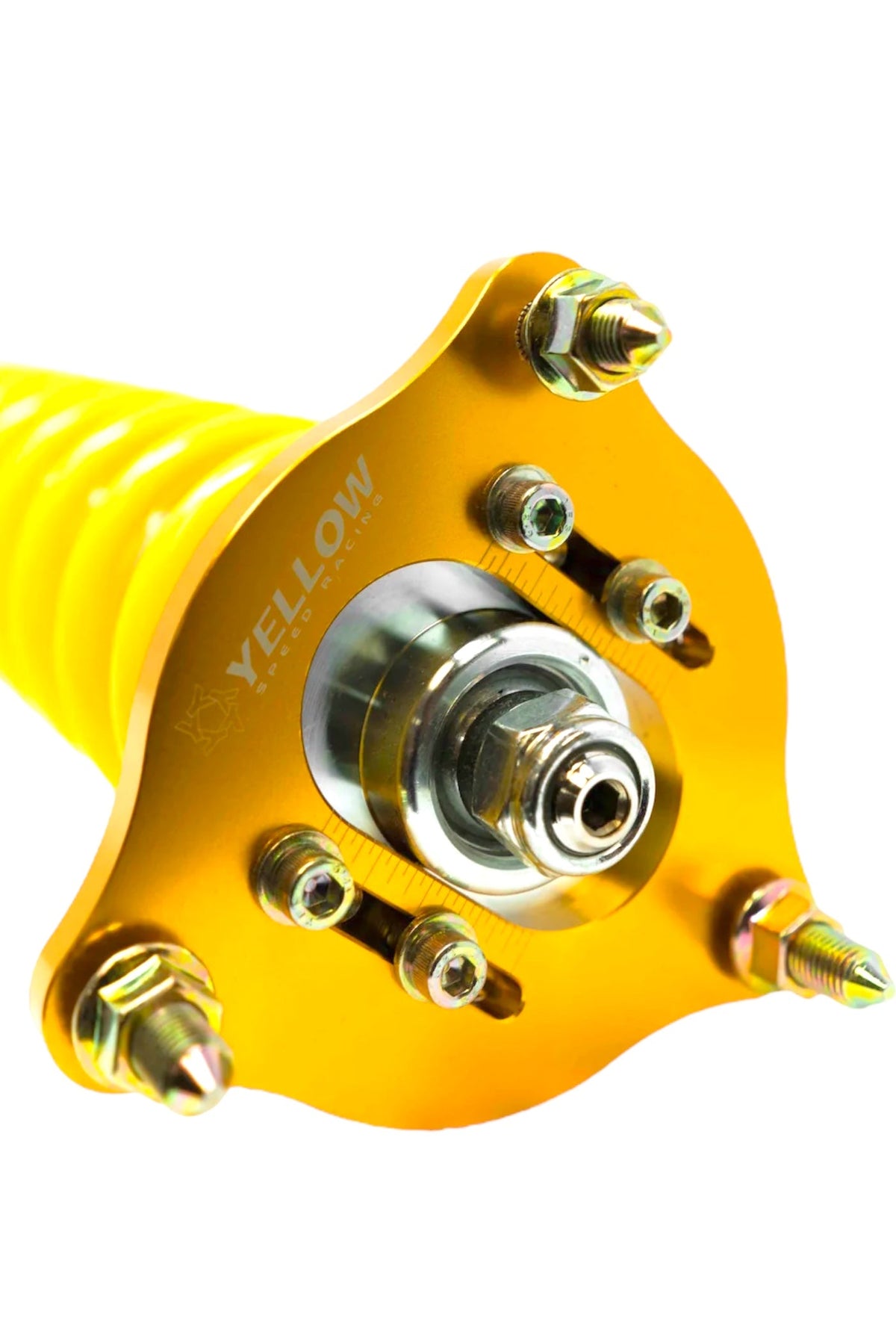

| Top Mounts - Front | Aluminum Pillowball Upper Mount with Camber Plate |

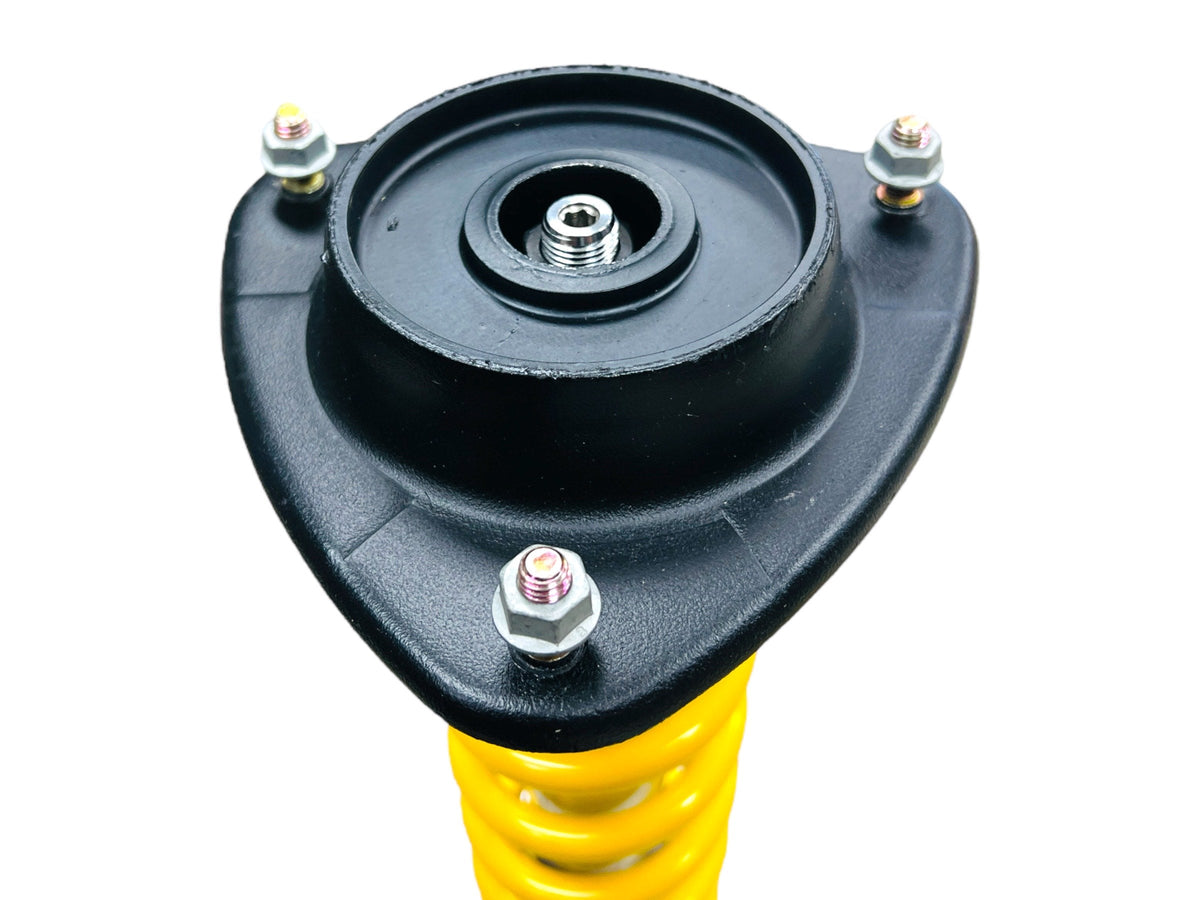

| Top Mounts - Rear | Aluminum Pillowball Upper Mount |
| Suspension Design - Rear | True Coilover |
| Strut Type - Front | Inverted |
| Strut Type - Rear | Sustech Upside-Down |
| Notes | Rear shock & spring combined (True Coilover) |
