Product Details

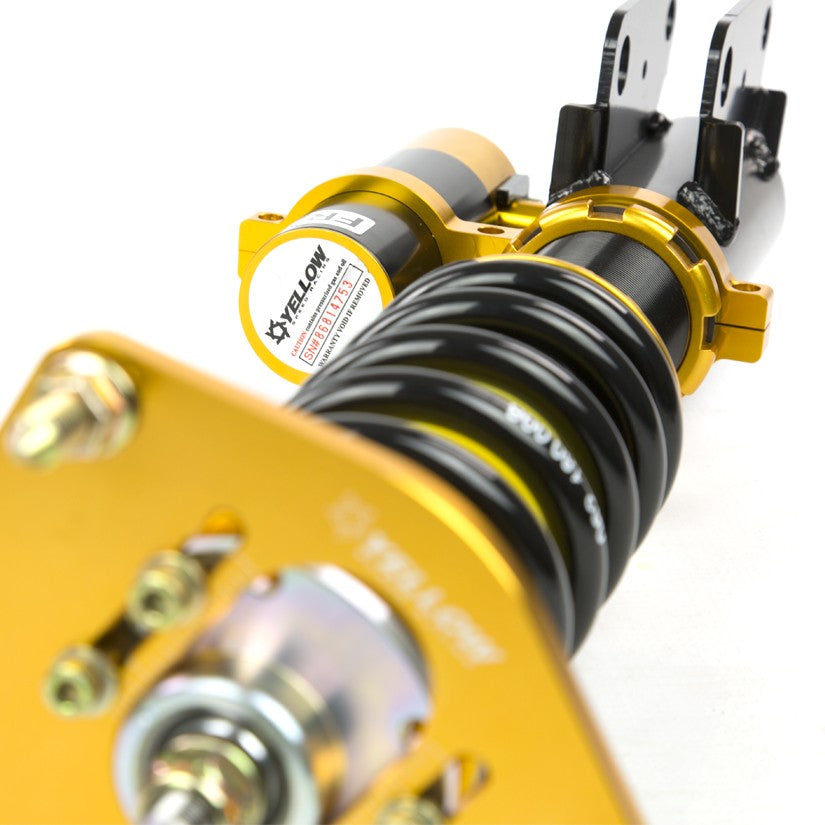

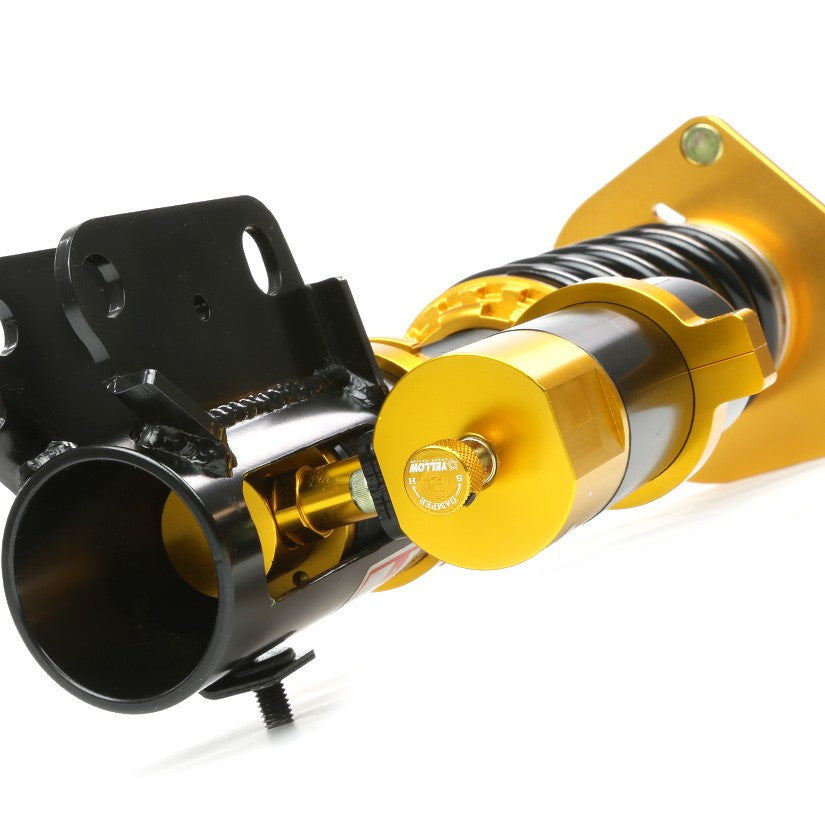

Yellow Speed Racing Club Performance 2-Way Coilovers for the 2018+ Suzuki Jimny (JB64W/JB74W) are for drivers who join occasional track days, weekend race events, or less aggressive road courses and still want adjustable damping for daily driving. This is part number YS01-SU-CP005.
Club Performance coilovers have independent compression and rebound damping settings and full-length ride height adjustment. An external reservoir adds oil capacity to dissipate heat and keep damping consistent over long sessions, and the reservoir bottom is 7075 alloy with an anodized finish. Radial bearings are included on MacPherson style suspension, and the shock body is electroplated against corrosion.
Features
- 2-way adjustable damping with independent compression and rebound adjustment
- External reservoir for added oil capacity and heat dissipation
- Full-length ride height adjustment
- Radial bearings included on MacPherson style suspension at no additional charge
- Electroplated shock body against rust and corrosion
- Hand built and made to order
Specifications
| Part Number | YS01-SU-CP005 |
| Part Name | Yellow Speed Club Performance 2-Way Coilovers |
| Vehicle | 2018+ Suzuki Jimny |
| Drivetrain | 4WD |
| Placement | Front & Rear |
| Chassis Code | JB64W/JB74W |
| Damping Adjustment | 2-Way |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 2.7 kg/mm |
| Spring Rate - Rear | 3.35 kg/mm |
| Notes | Ride height is fixed at 3" taller than OEM (unadjustable) |
