Product Details

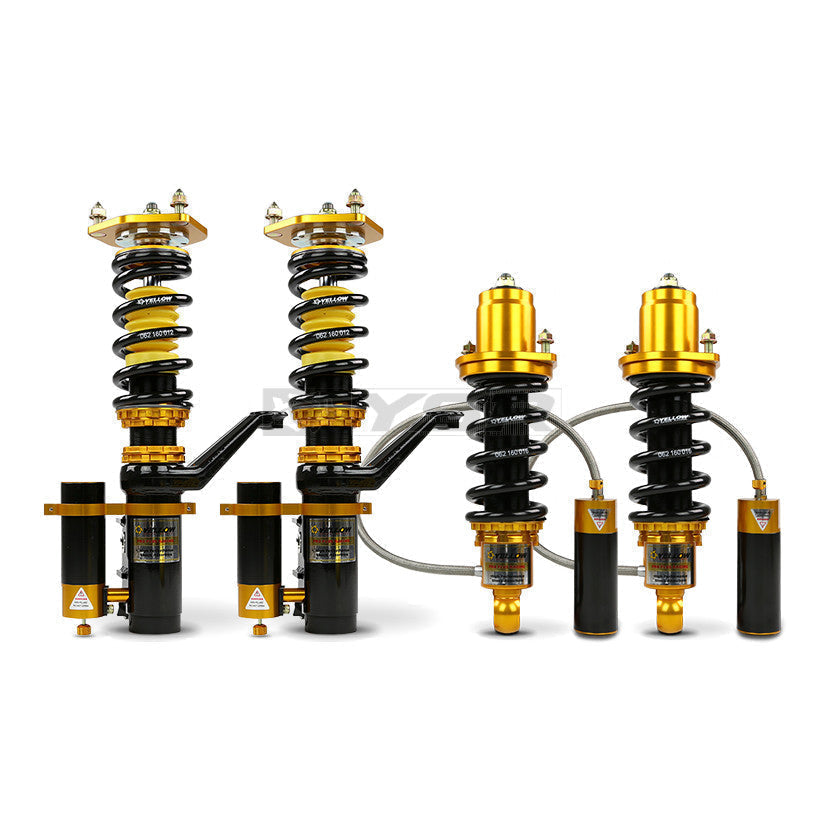

Yellow Speed Racing Advanced Pro Plus Circuit Spec 2-Way Coilovers for the 2004-2011 Proton Gen-2 Hatchback are a motorsport-grade suspension developed for competitive circuit racing. This is part number YS01-PT-ASCR001.

Each kit is built to order with vehicle-specific valving and spring rates tailored to high-grip tarmac use. The system uses a monotube damper with a high-precision remote reservoir for added oil capacity and thermal stability, and CNC-machined components and aluminum shock bodies to reduce unsprung weight. It is not recommended for street use because of the stiffer valving and higher NVH.

Features

  • 2-way adjustable damping with independent compression and rebound adjustment
  • Monotube damper design with an external remote reservoir
  • Custom spring rates and valving
  • CNC-machined components and aluminum shock bodies to reduce unsprung weight

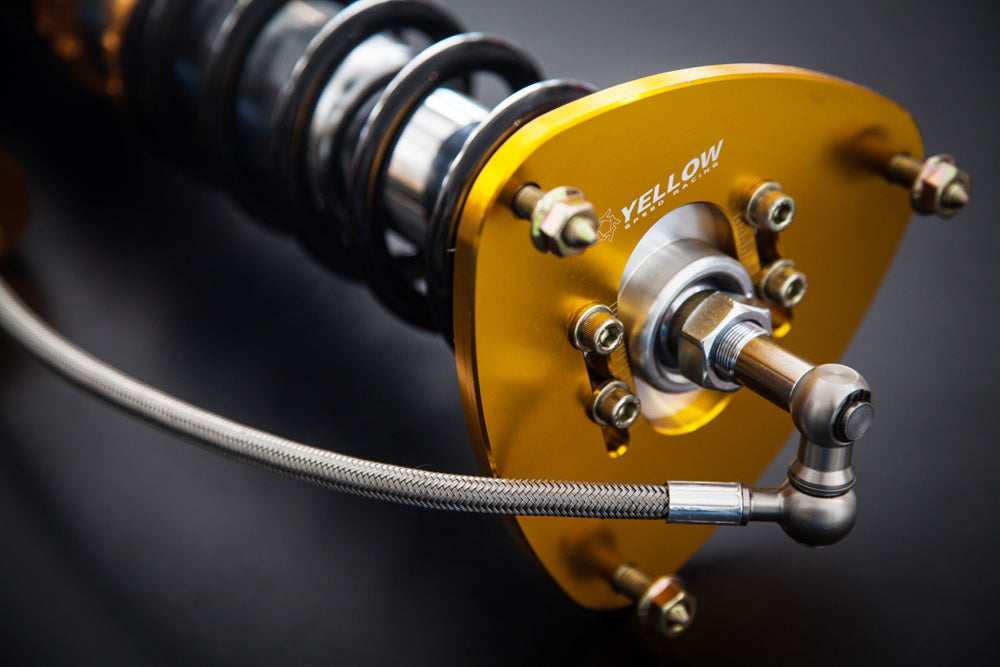

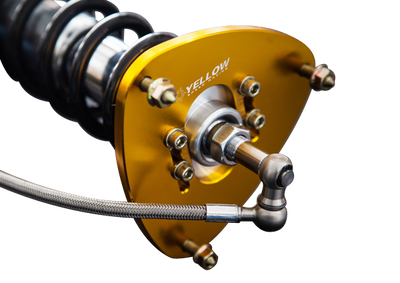

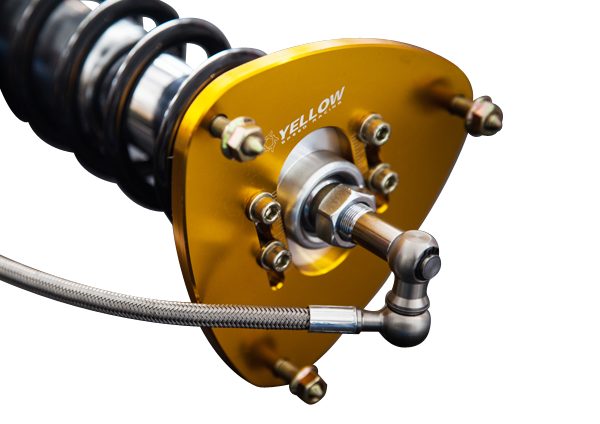

  • Camber adjustable top mounts on applicable models
  • Hand built and made to order
Specifications
Part Number YS01-PT-ASCR001
Part Name Yellow Speed Advanced Pro Plus Circuit Spec 2-Way Coilovers
Vehicle 2004-2011 Proton Gen-2 Hatchback
Drivetrain FWD
Placement Front & Rear
Damping Adjustment 2-Way
Spring Rate - Front 14 kg/mm
Spring Rate - Rear 12 kg/mm
Top Mounts - Front Aluminum Pillowball Upper Mount with Camber Plate
Top Mounts - Rear Aluminum Upper Mount (no pillowball) or Aluminum Pillowball Upper Mount (choose when ordering)
Strut Type - Front Inverted
Strut Type - Rear Standard
Notes Hatchback

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004ProtonGen-2FWDHatchback
2005ProtonGen-2FWDHatchback
2006ProtonGen-2FWDHatchback
2007ProtonGen-2FWDHatchback
2008ProtonGen-2FWDHatchback
2009ProtonGen-2FWDHatchback
2010ProtonGen-2FWDHatchback
2011ProtonGen-2FWDHatchback
