Product Details
This Wisefab Front Narrow Drift Angle Lock Kit fits the 2006-2013 BMW 3 Series.
The Wisefab Front Narrow Drift Angle Lock Kit for the 2006-2013 BMW 3 Series (E90/E92) transforms the front suspension into a purpose-built drift geometry delivering aggressive steering lock, corrected Ackermann, and precise self-alignment torque. Replacing the factory control arms, knuckles, and tie rods with motorsport-spec components, this E90/E92 angle kit unlocks competition steering range while keeping camber control and bump-steer stable across the full lock range.
Engineered in Estonia and proven across Formula Drift, club-level drift, and time attack, every Wisefab kit is fabricated from high-strength steel and CrMo with all components available as spares to keep you on track. Pair with the matching E90/E92 rear suspension kit for a complete Wisefab chassis overhaul.
Features
- Aggressive steering lock with Ackermann adjustment where applicable

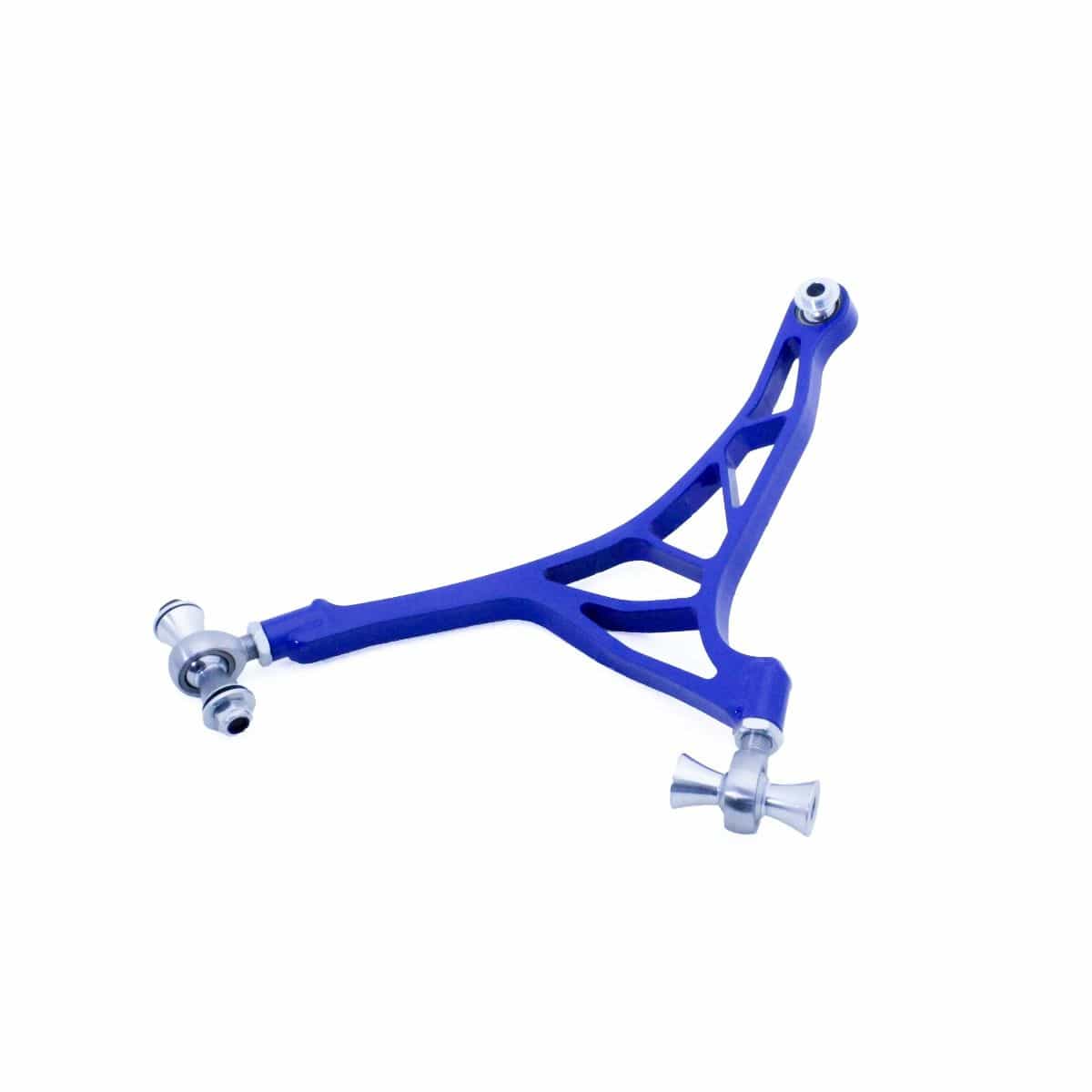

- One-piece or optimized lower control arm for drift-spec stiffness
- Revised knuckle geometry — raised roll center and improved camber control
- Minimal bump-steer across the full lock range
- Consistent self-alignment torque — no full-lock stick
- CrMo hardware and motorsport-grade fabrication
- Spare parts available for every component

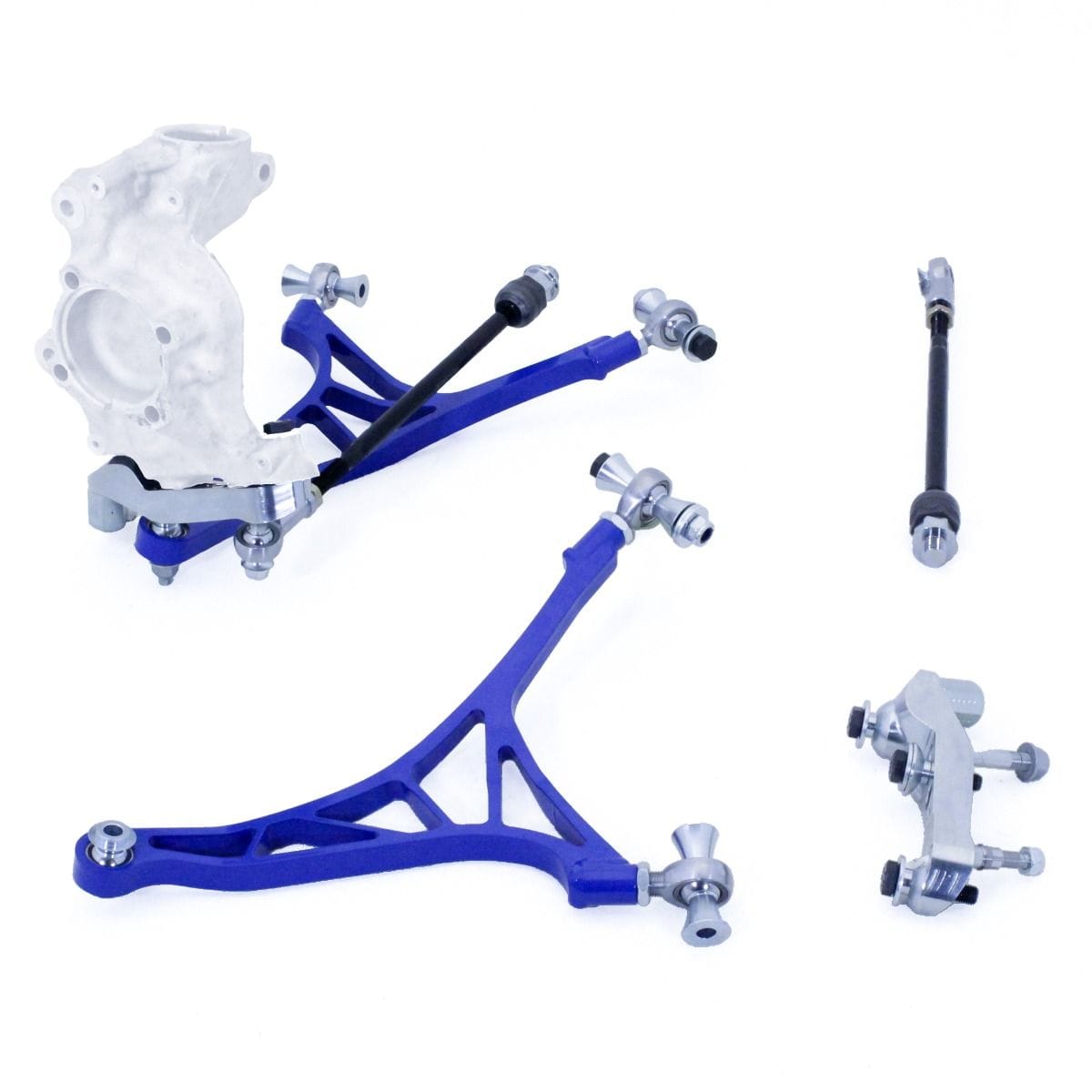

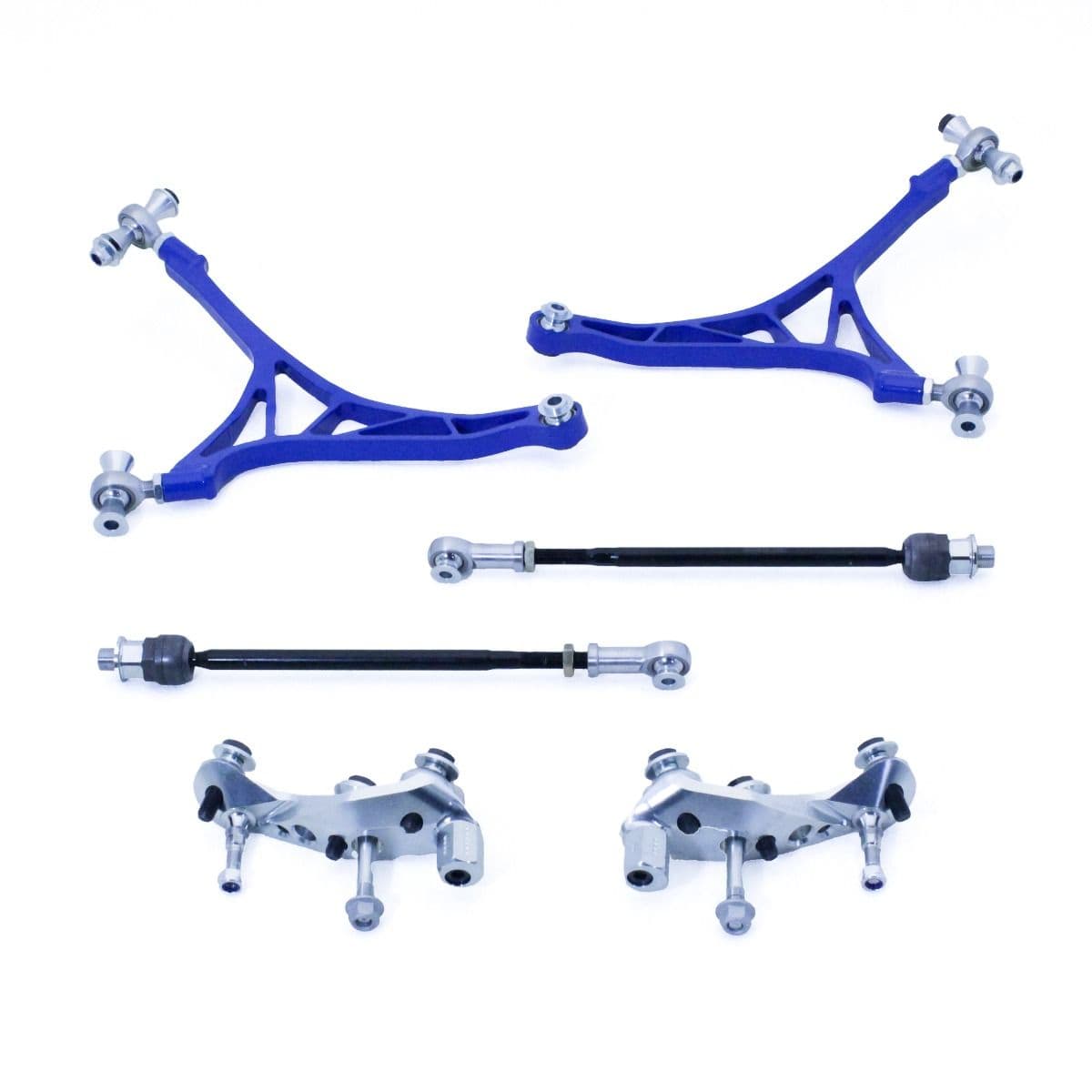

Kit Includes
- Pre-set upper and lower control arms (where applicable)

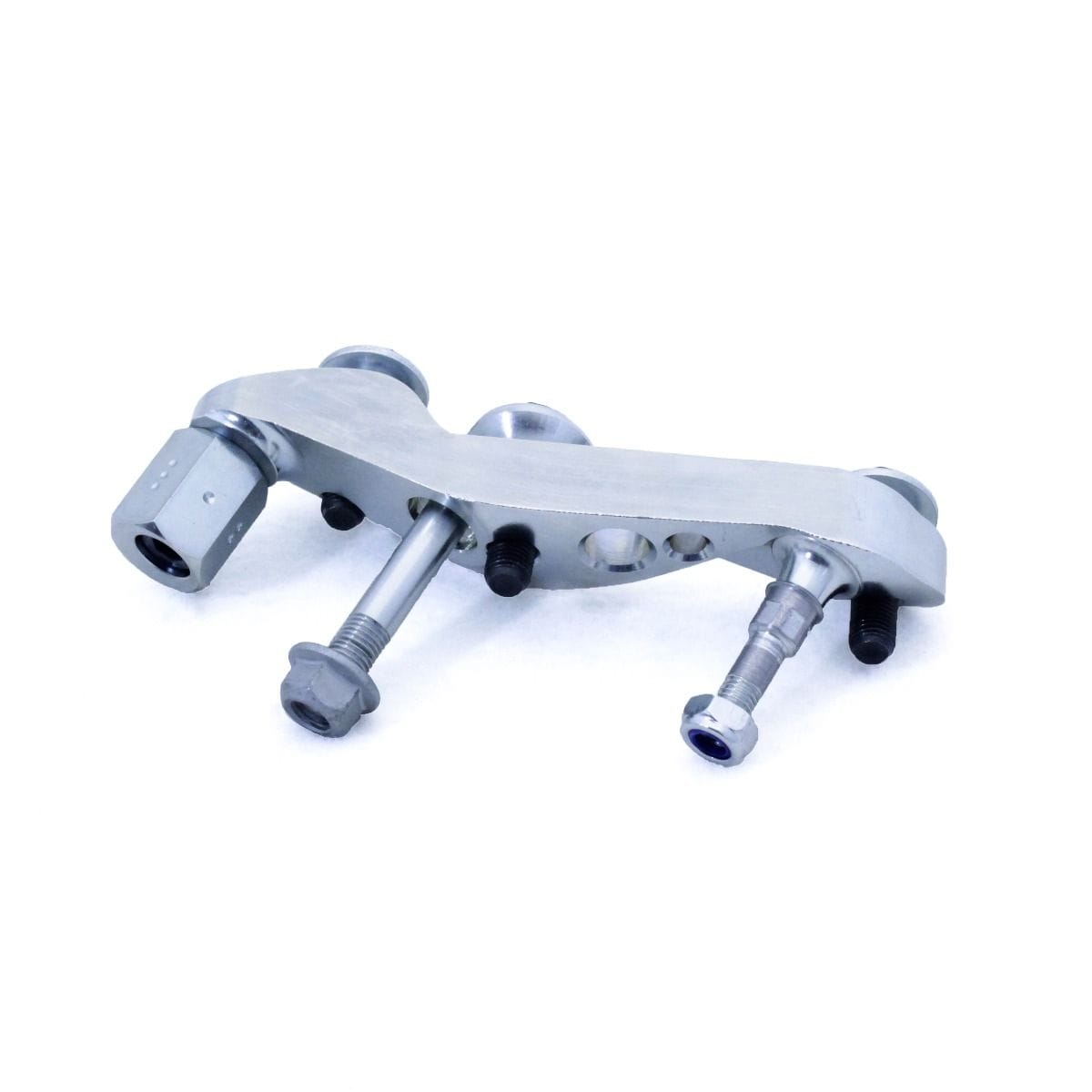

- Knuckles with hardware
- Assembled tie rods
- Installation guide
- Ackermann adjustment kit (where applicable)
Helpful Links
Specifications
| Part Number | WF900N |
| Part Name | Wisefab Front Narrow Drift Angle Lock Kit |
| Vehicle | 2006-2013 BMW 3 Series |
| Chassis Code | E90/E92 |
| Drivetrain | RWD |
| Placement | Front |
| Notes | Wisefab confirmed on 2026-10-22 that this part number applies to 3 Series (non-M) only. Wisefab states it does not fit M3 knuckles. |
