Product Details

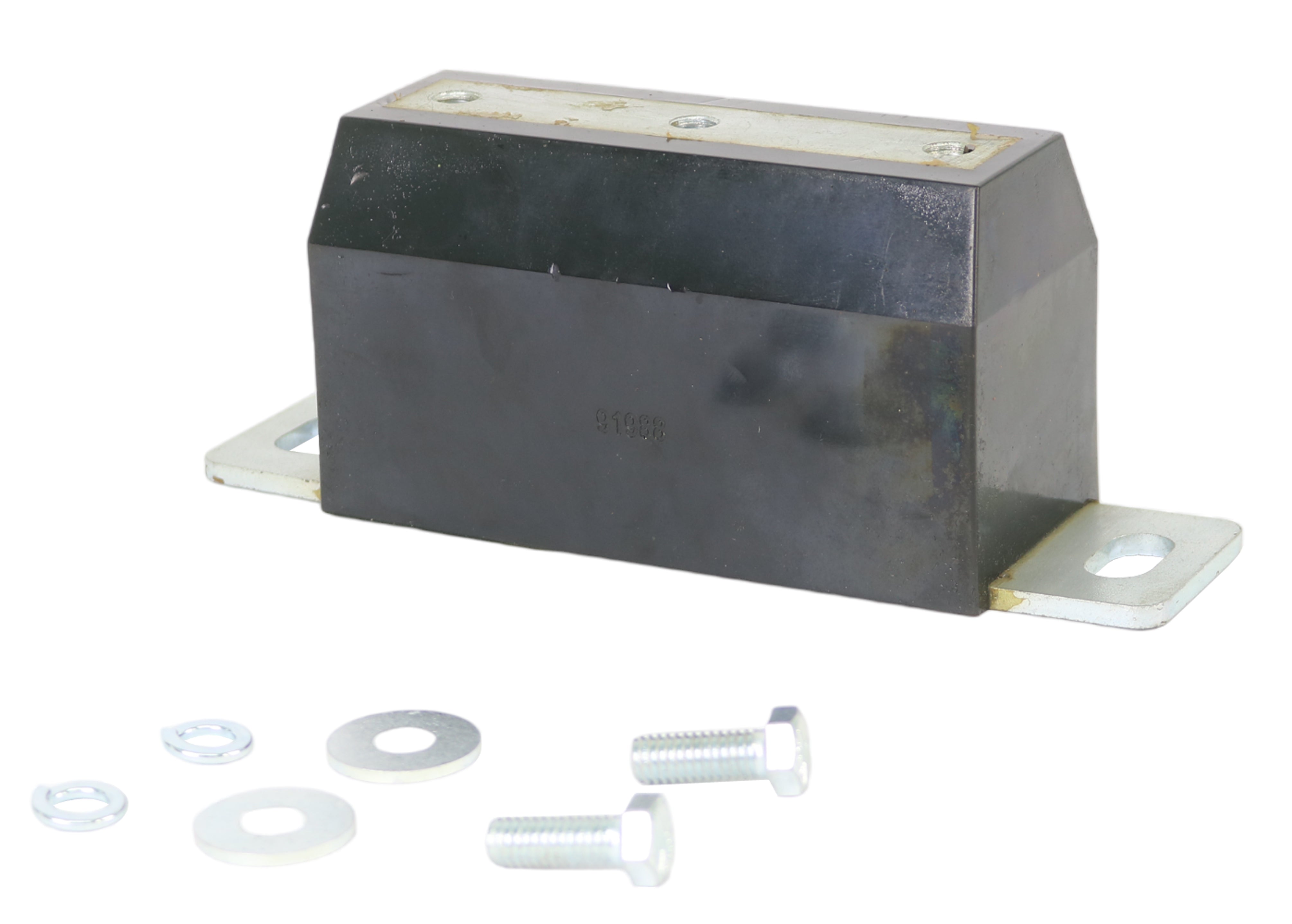

The Whiteline Transmission Mount Bushing fits the 1985-1999 GMC K1500 (GMT400). You receive 1 mount, 1 plate, 2 bolts, and 4 washers. Whiteline part number: W93472. Application note: Top center.
Gearbox mount bushings are an easy place for slack to build up. When the rubber compresses or splits, the transmission drops and moves under load, which can strain the driveline. Replacing it keeps the box located where it was designed to sit. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. To go with it on the K1500, see Body Mount Bushing Kit, Tie Rod Boot Kit, and Motor Mount Clamshell Insert.
Features
- Install guide: Written install instructions are included with the part.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Hardware: The kit includes mounting hardware.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
Specifications
| Part Number | W93472 |
| Part Name | Transmission Mount Bushing |
| Vehicle | 1985-1999 GMC K1500 |
| Chassis Code | GMT400 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 72 |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 1 Mount, 1 Plate, 2 Bolts, 4 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Wheel Alignment Required | No |
| Notes | Top center - center bolt holes 7.5 INCH |
