Product Details

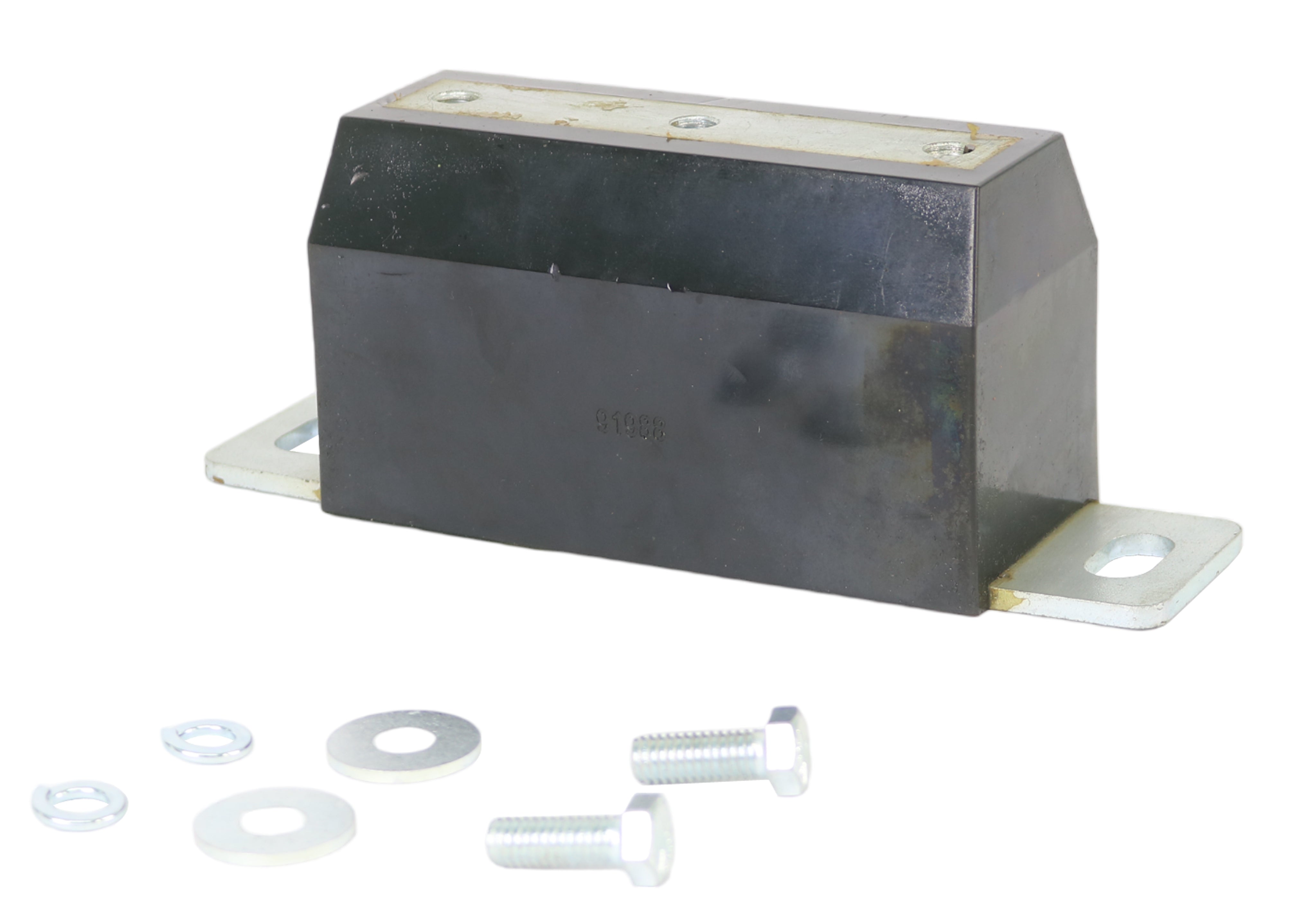

This Whiteline Transmission Mount Bushing fits the 1985-1986 GMC K3500. In the box: 1 mount, 1 plate, 2 bolts, and 4 washers. Order it as part number W93472. Whiteline's note for this fit: Top center. Chassis code: C/K.
Gearbox mount bushings are an easy place for slack to build up. When the rubber compresses or splits, the transmission drops and moves under load, which can strain the driveline. Replacing it keeps the box located where it was designed to sit. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a moderate job of about 1 hour. It does not require a wheel alignment. Other Whiteline parts we list for the K3500: Body Mount Bushing Kit and Front Sway Bar Link Bushing Kit.
Features
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Install guide: Written install instructions are included with the part.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Hardware: The kit includes mounting hardware.
Specifications
| Part Number | W93472 |
| Part Name | Transmission Mount Bushing |
| Vehicle | 1985-1986 GMC K3500 |
| Drivetrain | 4WD |
| Chassis Code | C/K |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 72 |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 1 Mount, 1 Plate, 2 Bolts, 4 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | Yes |
| Wheel Alignment Required | No |
| Notes | Top center - center bolt holes 7.5 INCH |
Fitment for K3500 transmission mount bushings
Fits the 1985-1986 GMC K3500. Each model year is listed below.
