Product Details

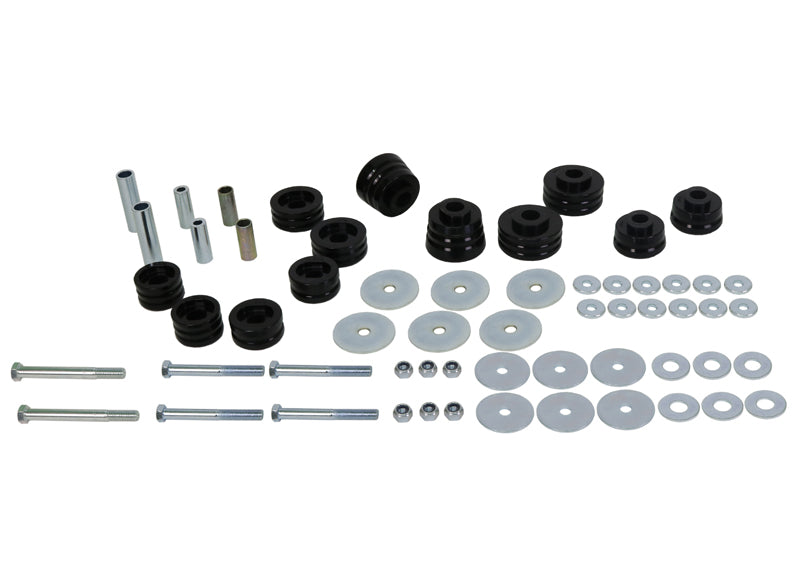

This Whiteline Subframe Mount Bushing Kit fits the 2002-2006 Mazda B2300. The part number is W93445. In the box: 12 bushings, 6 tubes, 6 bolts, 30 washers, 6 nuts, and an install guide. Chassis code: B-Series.
The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.
Whiteline rates the install as moderate and lists about 4 hours. Plan on a wheel alignment afterward.
Features
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Install guide: Whiteline packs an install guide with it.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
| Part Number | W93445 |
| Part Name | Subframe Mount Bushings |
| Vehicle | 2002-2006 Mazda B2300 |
| Chassis Code | B-Series |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 72 |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 4 |
| Kit Contents | 12 Bushings, 6 Tubes, 6 Bolts, 30 Washers, 6 Nuts, Install Guide |
| Universal or Specific Fit | Specific Fit |
| Wheel Alignment Required | Yes |
| Notes | - |
Fitment for B2300 subframe mount bushings
Fits the 2002-2006 Mazda B2300. Each model year is listed below.
