Product Details

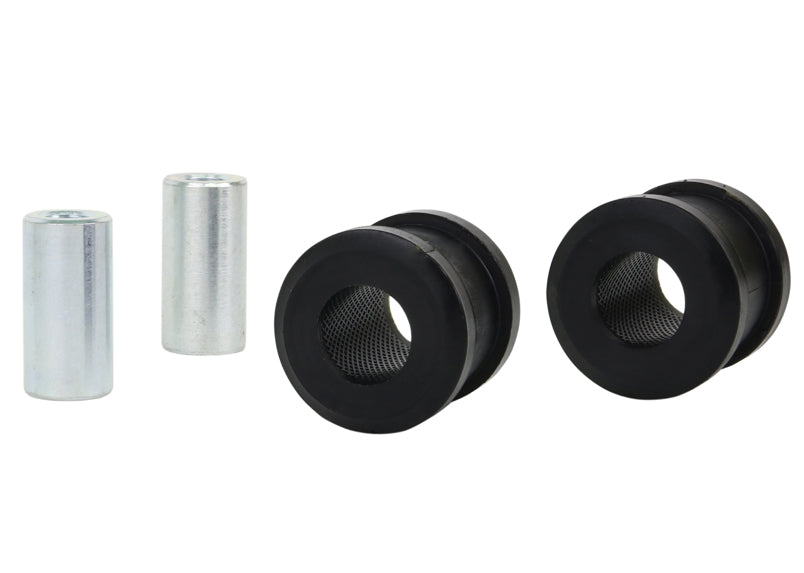

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2008-2012 Audi S3 (8P). Placement: rear. Whiteline part number: W63549. The kit contains 2 bushings and 2 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Audi S3: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Material: Made from polyurethane.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number W63549
Part Name Control Arm Bushing
Vehicle 2008-2012 Audi S3
Drivetrain AWD
Chassis Code 8P
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 2 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008AudiS3AWD
2009AudiS3AWD
2010AudiS3AWD
2011AudiS3AWD
2012AudiS3AWD
