Product Details

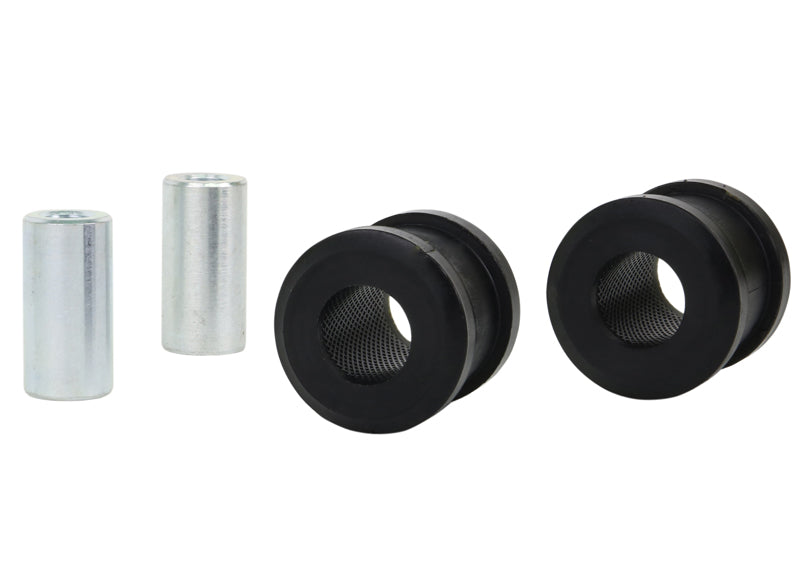

This Whiteline Rear Upper Inner Control Arm Bushing fits the 2005-2010 Volkswagen Passat. You receive 2 bushings and 2 tubes. Chassis code: B6. It goes on the rear of the vehicle. Order it as part number W63549.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. To go with it on the Passat, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.
Features
- Finish: The metal parts are powder coated for durability.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Material: Made from polyurethane.
Specifications
| Part Number | W63549 |
| Part Name | Control Arm Bushing |
| Vehicle | 2005-2010 Volkswagen Passat |
| Chassis Code | B6 |
| Drivetrain | AWD/FWD |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 40.3 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
