Product Details

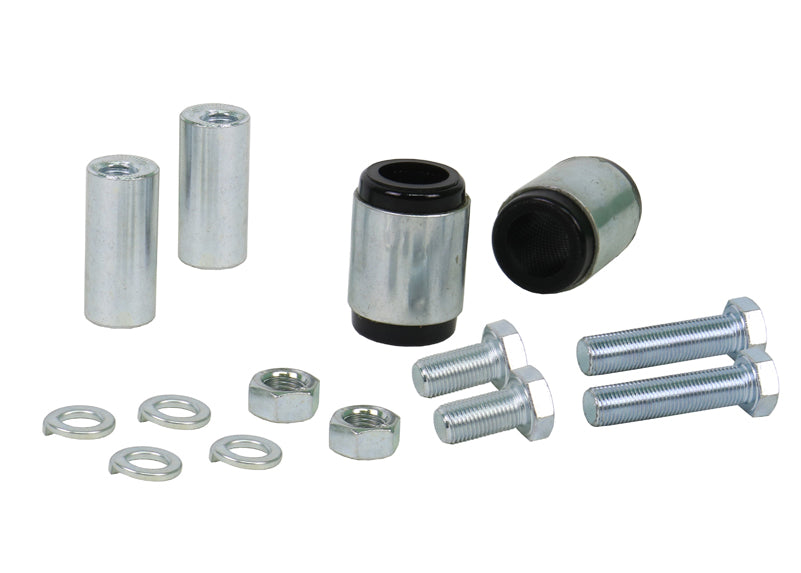

This Whiteline Rear Upper Inner Bushing Offset Camber Kit fits the 2007-2016 Jeep Compass. Application note: Adds +/- 0.5 degrees Camber. Whiteline part number: KCA329. It goes on the rear of the vehicle. Included: 2 shell bushings and 2 tubes.
Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.
Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Working on the same car? We also list Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link for the Compass.
Features
- Install guide: Instructions for fitting are packed in the box.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Material: The part is made of polyurethane.
Specifications
| Part Number | KCA329 |
| Part Name | Bushing Camber Kit |
| Vehicle | 2007-2016 Jeep Compass |
| Chassis Code | MK |
| Bushing 1 Inner Diameter | 12 mm |
| Bushing 1 Outer Diameter | 36.5 mm |
| Bushing 2 Outer Diameter | 36 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Performance |
| Inside Diameter | 12 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 36.5 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5Degree Camber |
