Product Details

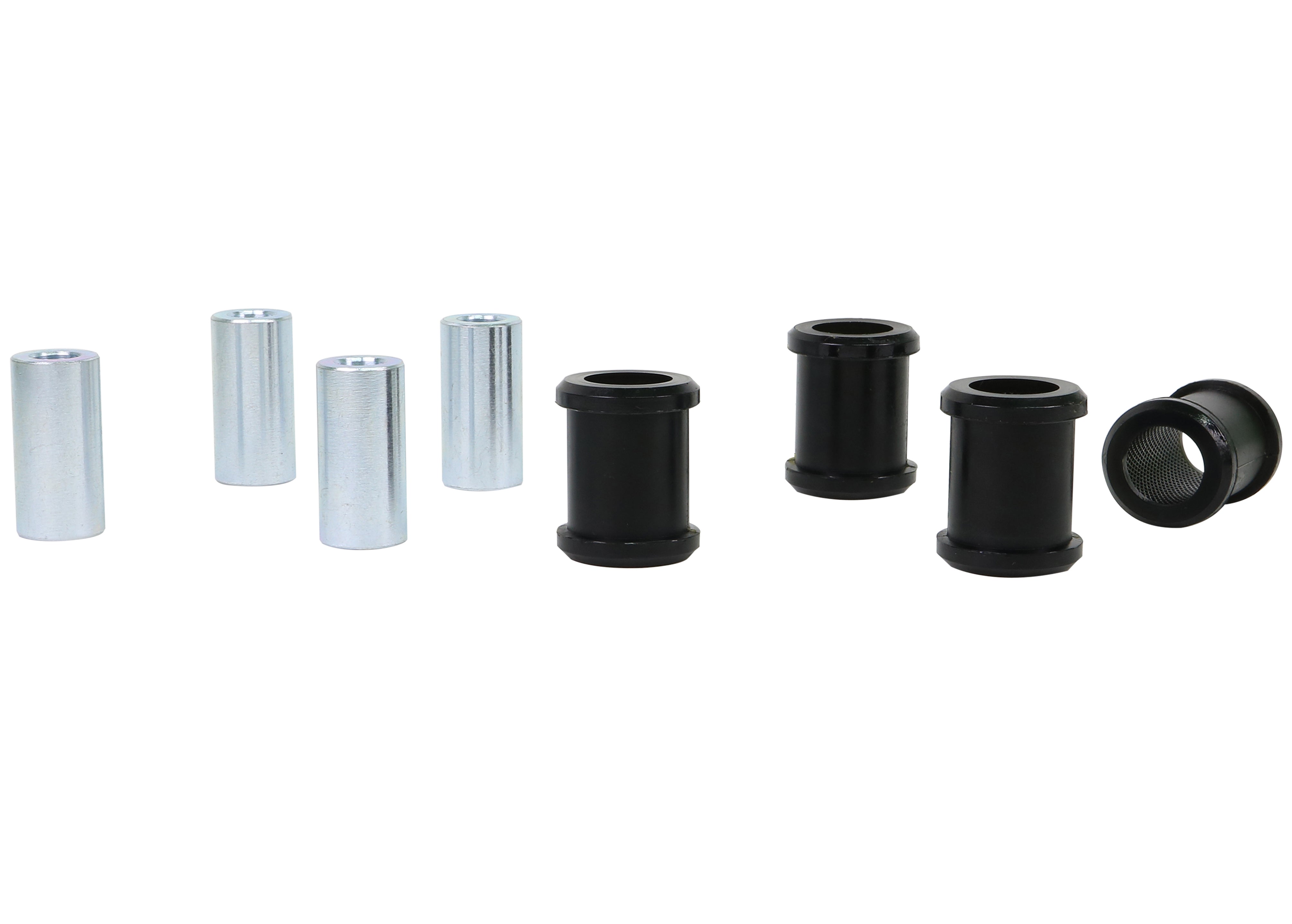

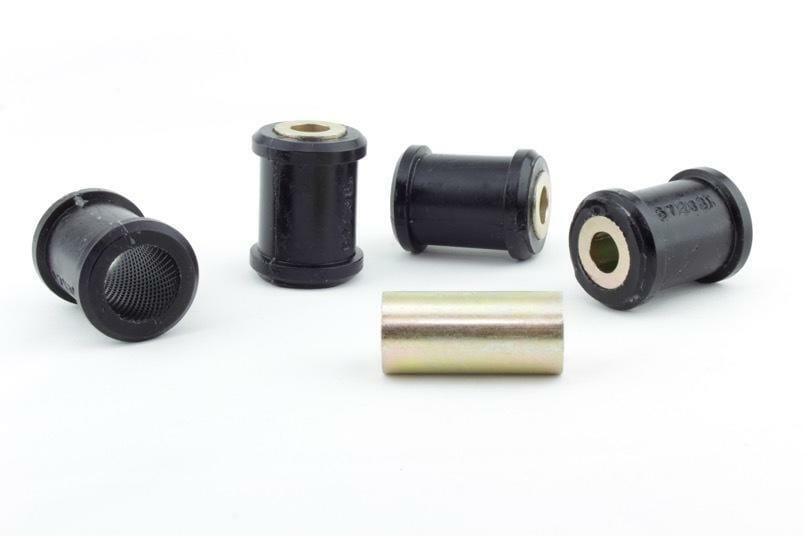

This Whiteline Rear Lower Trailing Arm Bushing fits the 2009-2011 Mazda RX-8 R3 (SE3P). Position: rear. Part number W63386. Included: 4 bushings, 4 tubes, and grease. Whiteline's note for this fit: Rear bushing located in hub.

Every time the wheel moves, the trailing arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit for the RX-8.

Features

  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Material: Built from polyurethane.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number W63386
Part Name Trailing Arm Bushing
Vehicle 2009-2011 Mazda RX-8 R3
Chassis Code SE3P
Bushing Color Black
Bushing Material Polyurethane
Color Black
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes, Grease
Material Polyurethane
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Rear bushing located in hub

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009MazdaRX-8RWDRear bushing located in hub
2010MazdaRX-8RWDRear bushing located in hub
2011MazdaRX-8RWDRear bushing located in hub
