Product Details

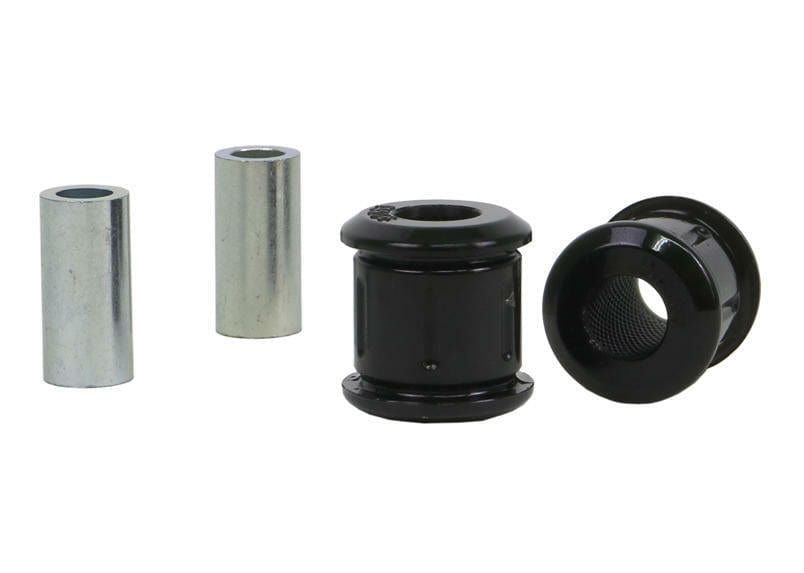

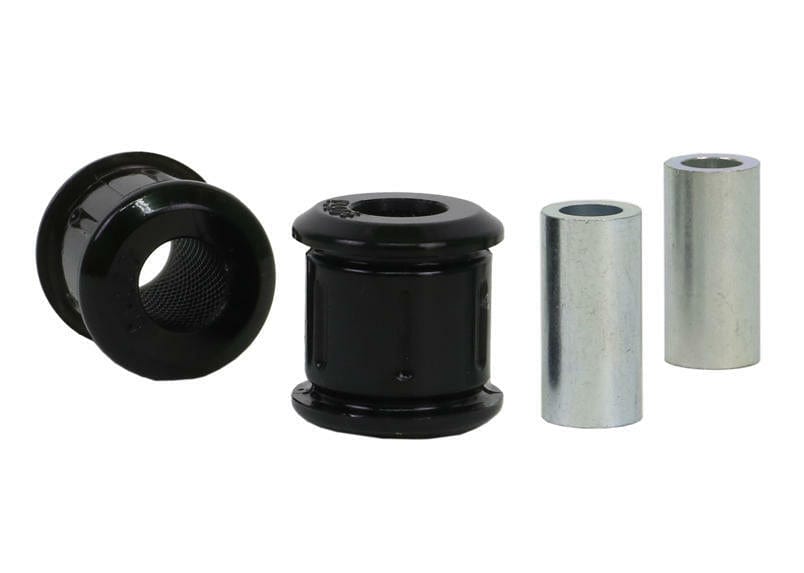

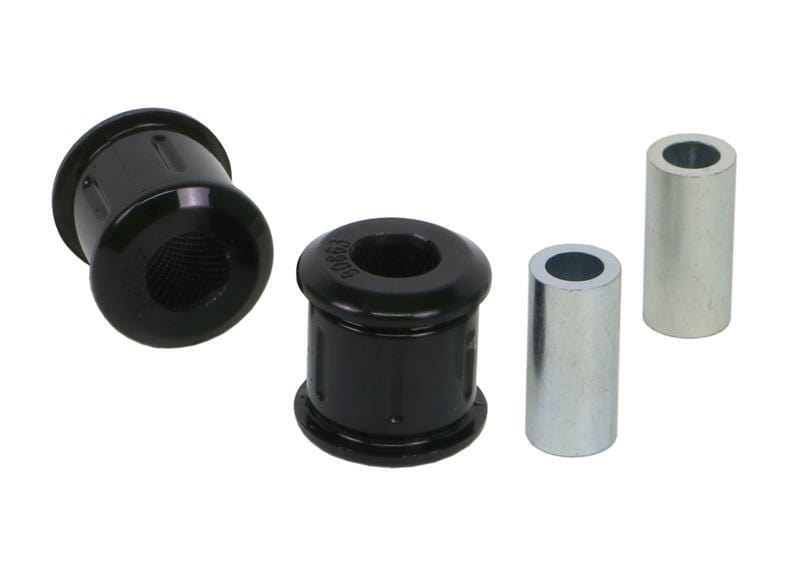

Fitted to the 2006-2013 Lexus IS350: the Whiteline Rear Trailing Arm Lower Front Bushing. The part number is W63586. You receive 2 bushings, 2 tubes, an install guide, and grease. It is listed for the XE20 chassis. Placement: rear.
Every time the wheel moves, the trailing arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. Working on the same car? We also list Front Control Arm Lower Inner Rear Bushing, Rear Differential Bushing - Front Mount Kit, and Heavy Duty Blade Adjustable 18mm Rear Sway Bar for the IS350.
Features
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Easy to fit: Designed so the install needs no specialized skills or tools.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
- Material: The part is made of polyurethane.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
| Part Number | W63586 |
| Part Name | Trailing Arm Bushing |
| Vehicle | 2006-2013 Lexus IS350 |
| Chassis Code | XE20 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes, Install Guide, Grease |
| Material | Polyurethane |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
