Product Details

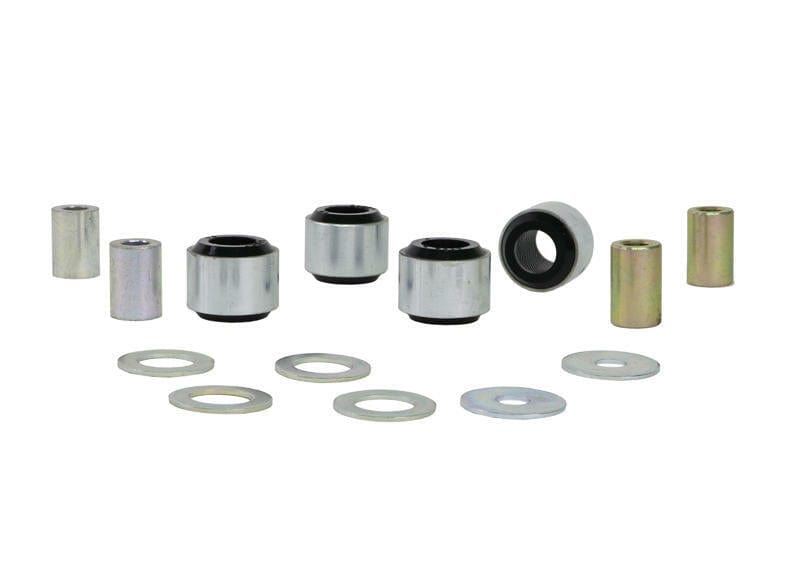

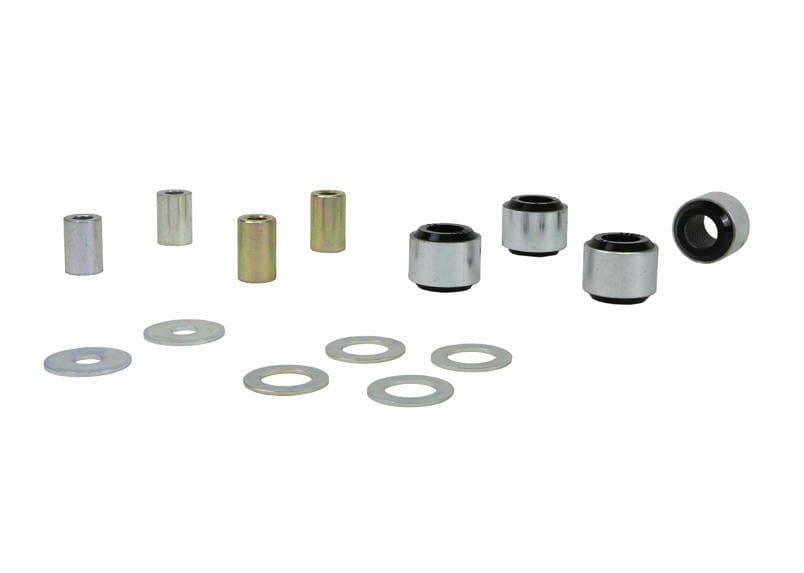

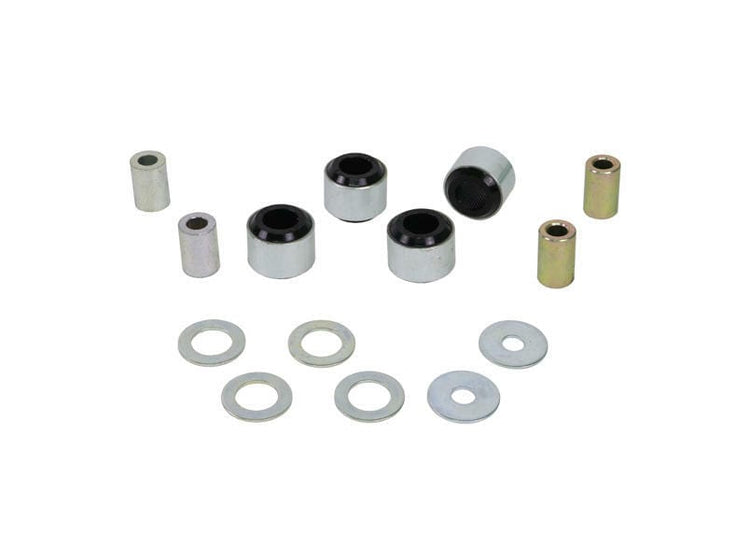

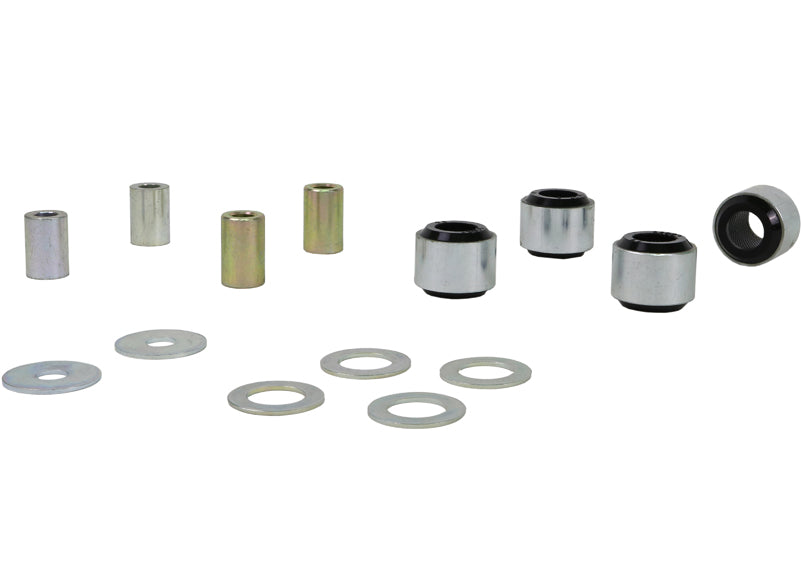

This Whiteline Rear Toe Link Bushing fits the 2009-2010 Dodge Challenger R/T, SE (LC). You receive 4 shell bushings, 4 tubes, and 6 washers. Position: rear. The part number is W63345.

Links in the rear suspension locate the wheel or axle, and each one pivots on a bushing. When the bushing is worn, the link moves more than it should, and alignment and stability change under load. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 4 hours. An alignment is required after installation. To go with it on the Challenger, see Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Subframe Mount Bushing.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Install guide: Whiteline packs an install guide with it.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Bonded design: A bonded design adds strength for high load applications.
Specifications
Part Number W63345
Part Name Toe Link Bushing
Vehicle 2009-2010 Dodge Challenger R/T, SE
Chassis Code LC
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing 2 Inner Diameter 12.2 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Shell Bushings, 4 Tubes, 6 Washers
Material Polyurethane
Mounting Hardware Included No
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009DodgeChallengerRWD
2010DodgeChallengerRWD
