Product Details

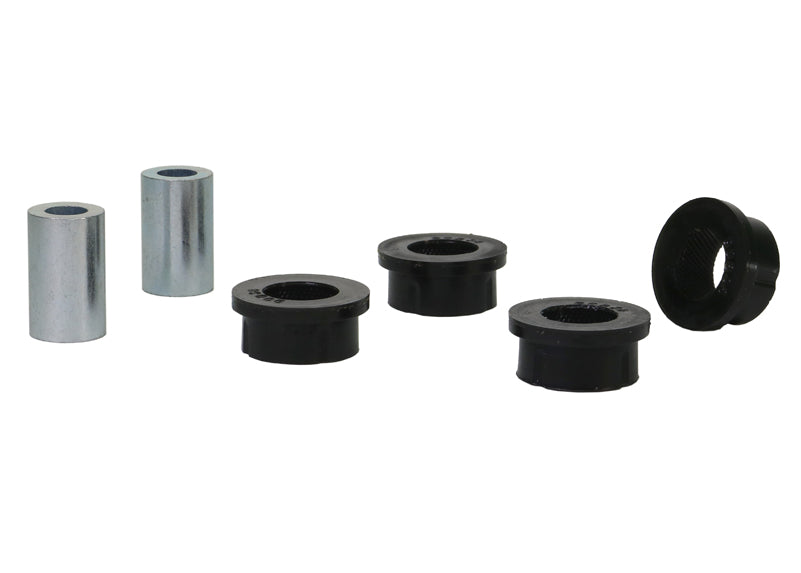

Owners of the 2009-2013 Subaru Forester X, X Limited, X Premium (SH) can fit the Whiteline Rear Toe Arm Inner Bushing. Position: rear. The listing names the X, X Limited, and X Premium trims. Part number W63583. Included: 4 bushings and 2 tubes.
A toe arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 2 hours. Plan on a wheel alignment afterward. Working on the same car? We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit for the Forester.
Features
- Material: Made from polyurethane.
- Easy to fit: Designed so the install needs no specialized skills or tools.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
| Part Number | W63583 |
| Part Name | Toe Arm Bushing |
| Vehicle | 2009-2013 Subaru Forester X, X Limited, X Premium |
| Chassis Code | SH |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 38 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
