Product Details

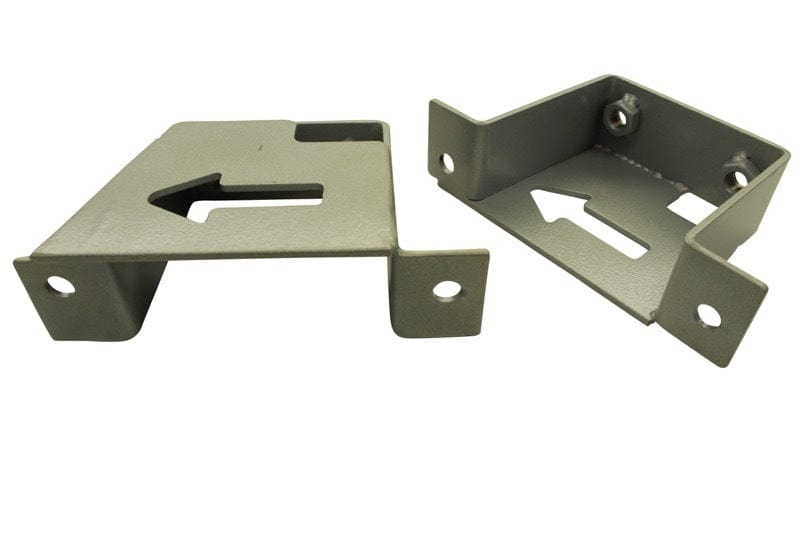

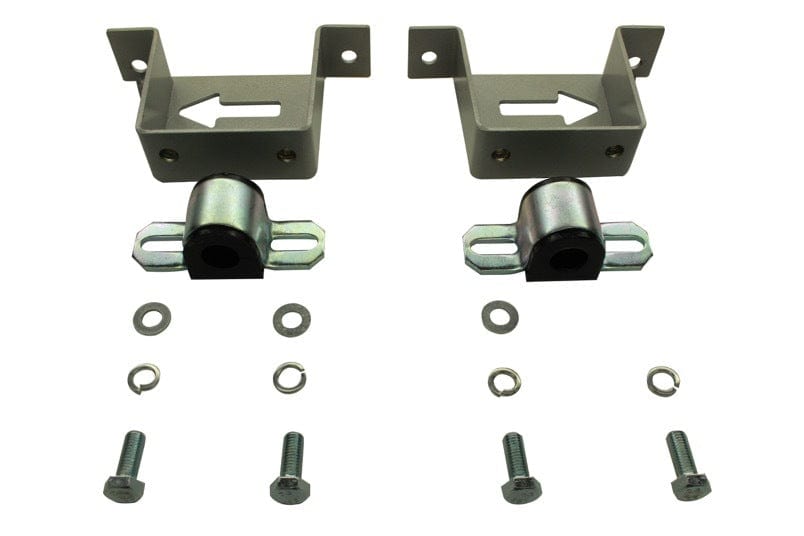

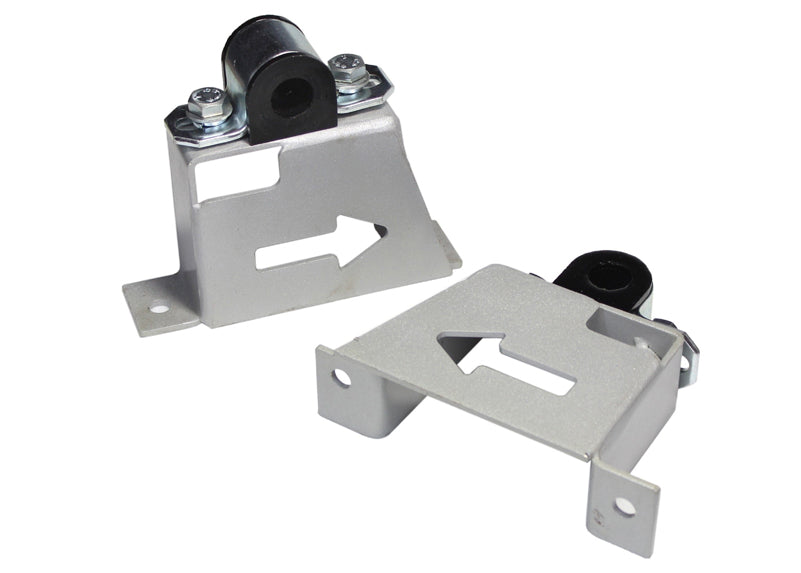

This Whiteline 22mm Rear Sway Bar Mount Kit fits the 2003-2008 Subaru Forester X (SG/SH). It goes on the rear of the vehicle. Included: 2 bushings, 2 mounts, 2 saddles, 4 bolts, and 8 washers. The part number is KBR18-22.
Sway bar mount bushings work as the bearings of the roll-control system. They need to hold the bar firmly without binding, and they have to cope with constant twisting. A new set restores that balance and quiets the knocks that worn ones make. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a moderate job of about 1 hour. A wheel alignment is not required. Other Whiteline parts we list for the Forester: Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and 14mm Adjustable Front Camber Bolts.
Features
- Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Compliance voids: Molded voids give the bushing room to flex where it needs to.
- Finish: The metal parts are powder coated for durability.
Specifications
| Part Number | KBR18-22 |
| Part Name | Sway Bar Mount |
| Vehicle | 2003-2008 Subaru Forester X |
| Chassis Code | SG/SH |
| Bar Diameter | 22 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 2 |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Inside Diameter | 22 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bushings, 2 Mounts, 2 Saddles, 4 Bolts, 8 Washers |
| Mounting Hardware Included | Yes |
| Outside Diameter | 34 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Included Steel Mounting and Suits 22mm Sway Bar |
