Product Details

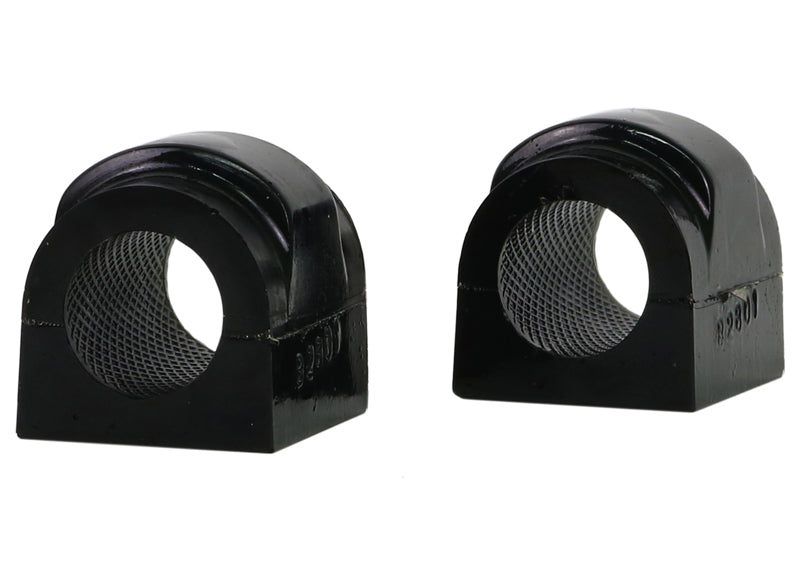

This Whiteline Rear Sway Bar Mount Bushing Kit fits the 1991 BMW 325iX 3 Series (E30). Included: 2 bushings. Position: rear. Order it as part number W22801.
A bar that moves in its mounts is a bar that is not working. Replacing soft or worn mount bushings keeps it centered and lets it start resisting body roll from the first degree of lean.
Installation is rated easy, with about 1 hour of work listed. A wheel alignment is not required. To go with it on the 325iX 3 Series, see Front Strut Tower Brace, Front Control Arm Lower Inner Rear Bushing, and Front Strut Tower Brace Quick Release Kit.
Features
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
| Part Number | W22801 |
| Part Name | Sway Bar Mount Bushing |
| Vehicle | 1991 BMW 325iX 3 Series |
| Chassis Code | E30 |
| Drivetrain | AWD |
| Bar Diameter | 20 mm |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Inside Diameter | 20 mm |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bushings |
| Mounting Hardware Included | No |
| Outside Diameter | 31.7 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | - |
