Product Details

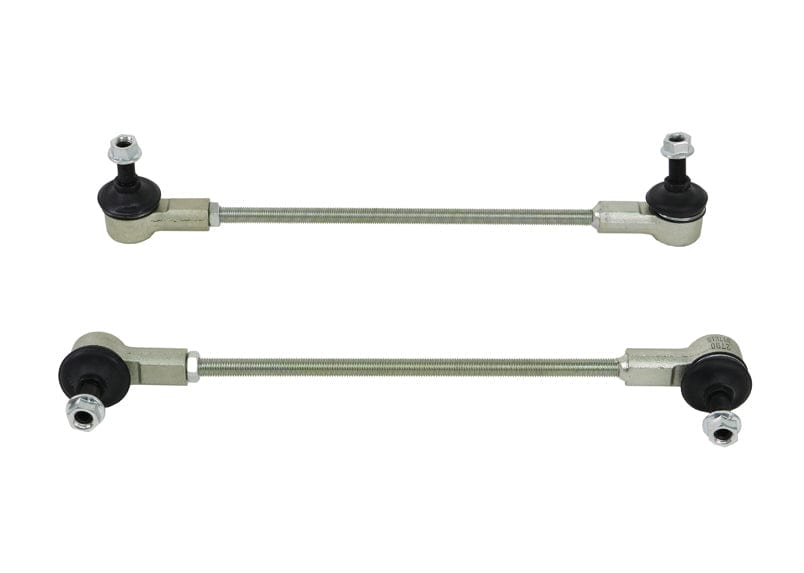

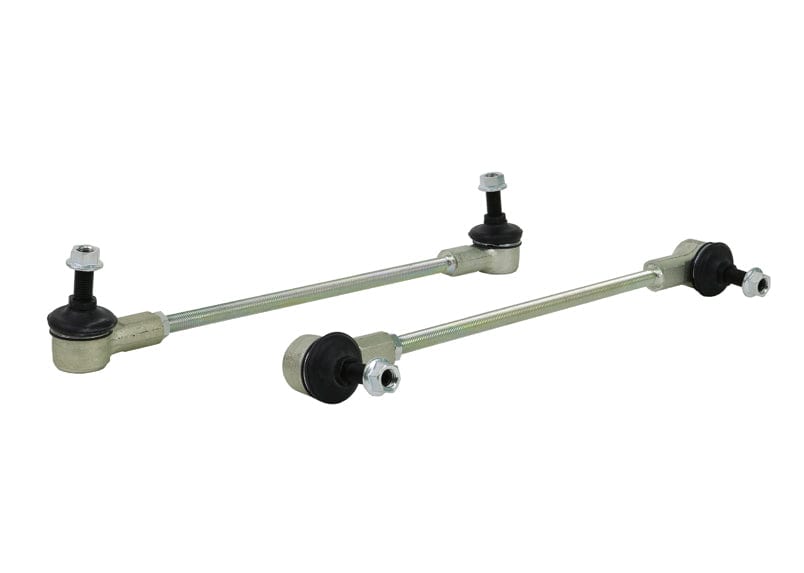

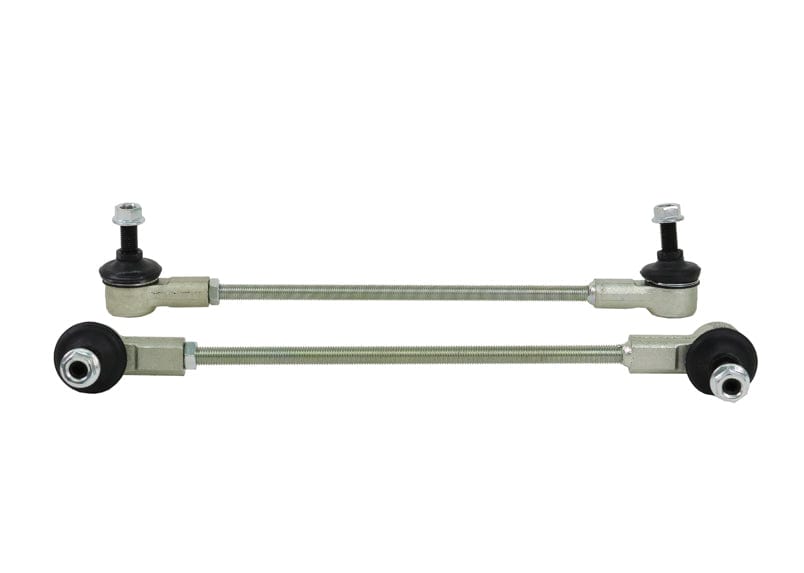

This Whiteline Rear Sway Bar Link fits the 2005 Hyundai Sonata GL (NF). The kit contains 2 links. Order it as part number W23180. This part is for the rear of the vehicle.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in.

Installation is rated easy, with about 1 hour of work listed. It does not require a wheel alignment. We also list Front Control Arm Lower Inner Rear Bushing for the Sonata.

Features

  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Install guide: Step-by-step installation instructions come with it.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Material: Steel construction.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
Specifications
Part Number W23180
Part Name Sway Bar Link
Vehicle 2005 Hyundai Sonata GL
Chassis Code NF
Bolt Thread Diameter 10 mm
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links
Length 80-320 mm
Material Steel
Vehicle Placement Rear
Wheel Alignment Required No
Notes Universal cut to length link - must cut to 76mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005HyundaiSonataFWDUniversal cut to length link - must cut to 76mm
