Product Details

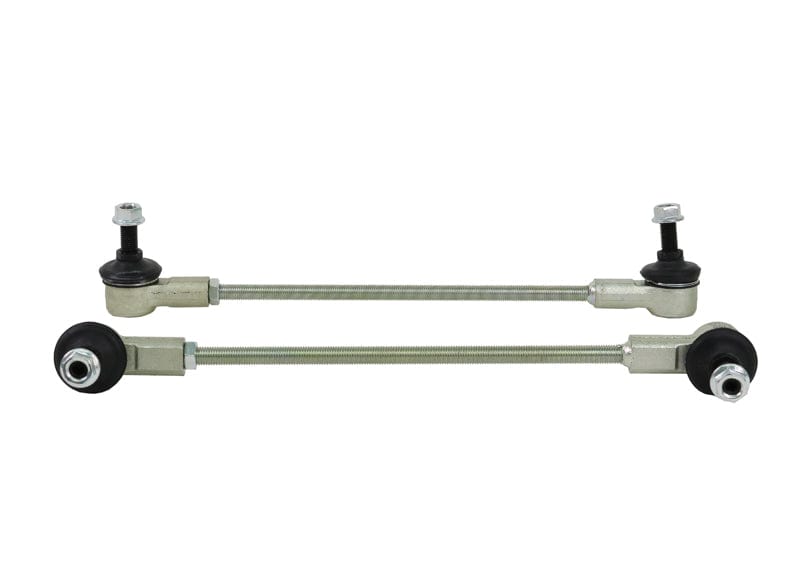

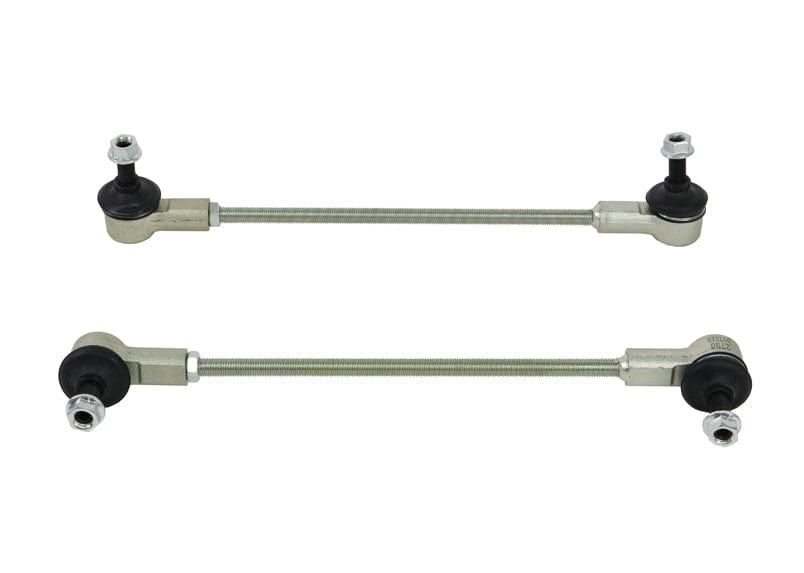

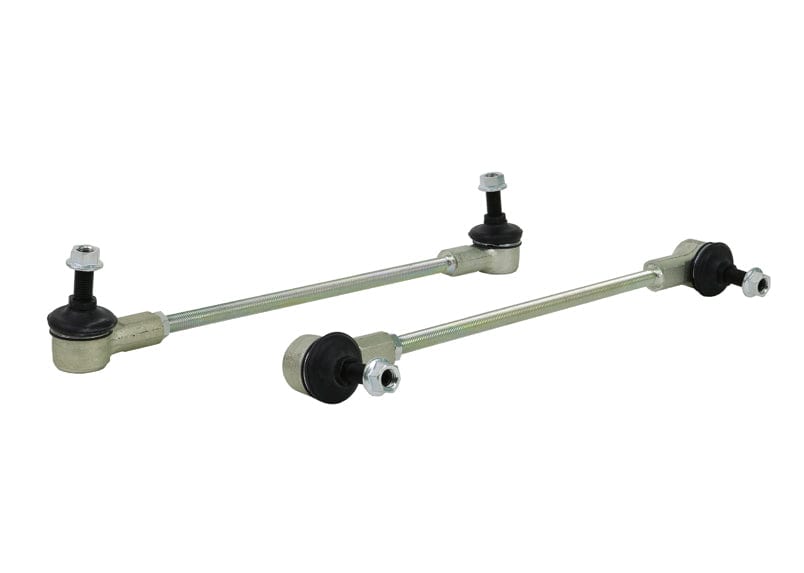

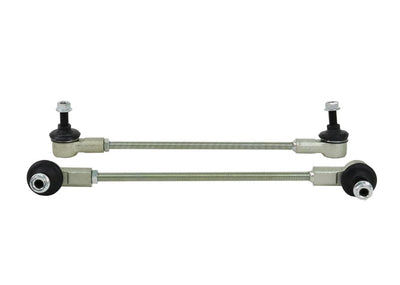

This Whiteline Rear Sway Bar Link fits the 2004-2006 Lexus RX330 (XU30). Position: rear. The part number is W23180. In the box: 2 links.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in.

Whiteline rates the install as easy and lists about 1 hour. A wheel alignment is not required. To go with it on the RX330, see 17mm Adjustable Front Camber Bolts and Front Control Arm Lower Inner Rear Bushing.

Features

  • Easy to fit: Designed so the install needs no specialized skills or tools.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Material: Steel construction.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
Specifications
Part Number W23180
Part Name Sway Bar Link
Vehicle 2004-2006 Lexus RX330
Drivetrain FWD/AWD
Chassis Code XU30
Bolt Thread Diameter 10 mm
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links
Length 80-320 mm
Material Steel
Vehicle Placement Rear
Wheel Alignment Required No
Notes Universal cut to length link - must cut to 76mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004LexusRX330FWDUniversal cut to length link - must cut to 76mm
2004LexusRX330AWDUniversal cut to length link - must cut to 76mm
2005LexusRX330FWDUniversal cut to length link - must cut to 76mm
2005LexusRX330AWDUniversal cut to length link - must cut to 76mm
2006LexusRX330FWDUniversal cut to length link - must cut to 76mm
2006LexusRX330AWDUniversal cut to length link - must cut to 76mm
