Product Details

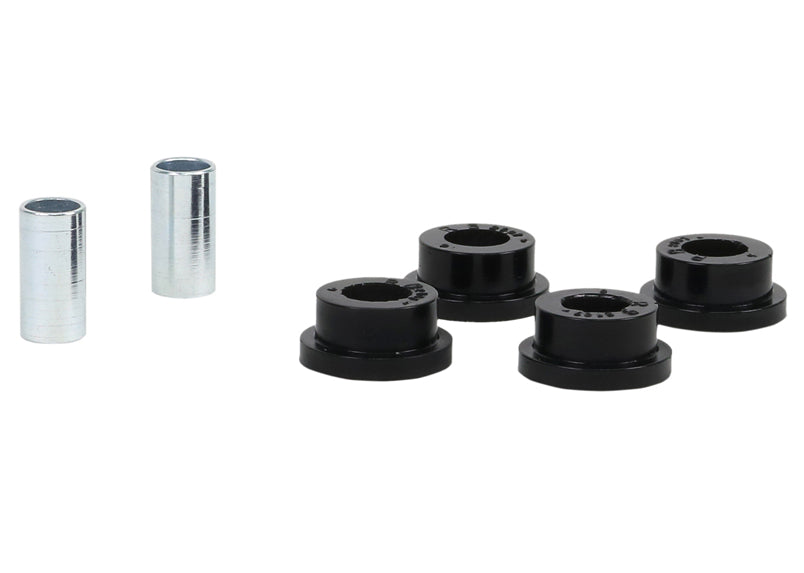

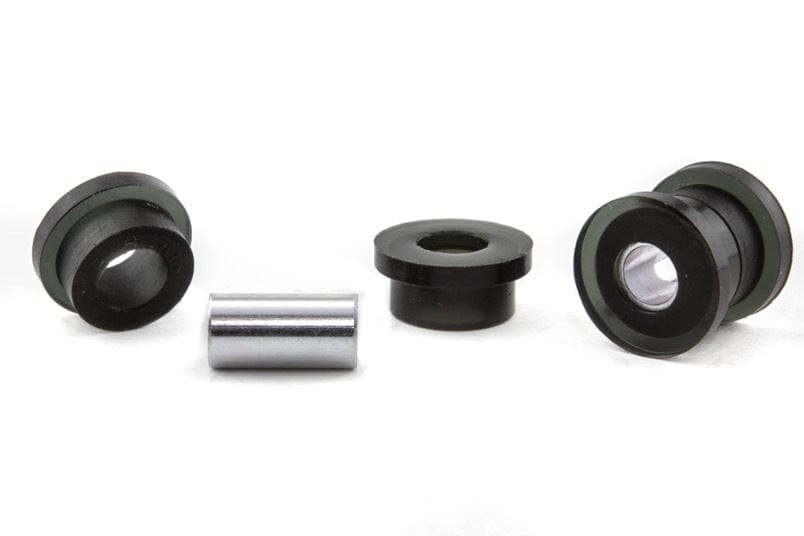

This Whiteline Rear Sway Bar Link Outer Bushing fits the 1998-2007 Lexus LX470 (J100). Included: 4 bushings and 2 tubes. Part number W22107. Placement: rear. Application note: Sway bar eyelet: 2 piece bushing design.
A sway bar link has a bushing at each end where it connects to the bar and the suspension, and those bushings let the link pivot. When they are soft or worn, the bar takes up slack before it begins resisting body roll, which feels like a delay in turn-in and shows up as clunking. Replacing them restores a firm connection. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as easy and lists about 1 hour. No alignment is needed afterward. We also list Front Steering Rack And Pinion Mount Bushing, Front Sway Bar Link Bushing (28.5mm OD), and Front Upper Shock Absorber Bushing Kit for the LX470.
Features
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
| Part Number | W22107 |
| Part Name | Sway Bar Link Bushing |
| Vehicle | 1998-2007 Lexus LX470 |
| Chassis Code | J100 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 72 |
| Grade Type | Regular |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Sway bar eyelet - 2 piece bushing design |
