Product Details

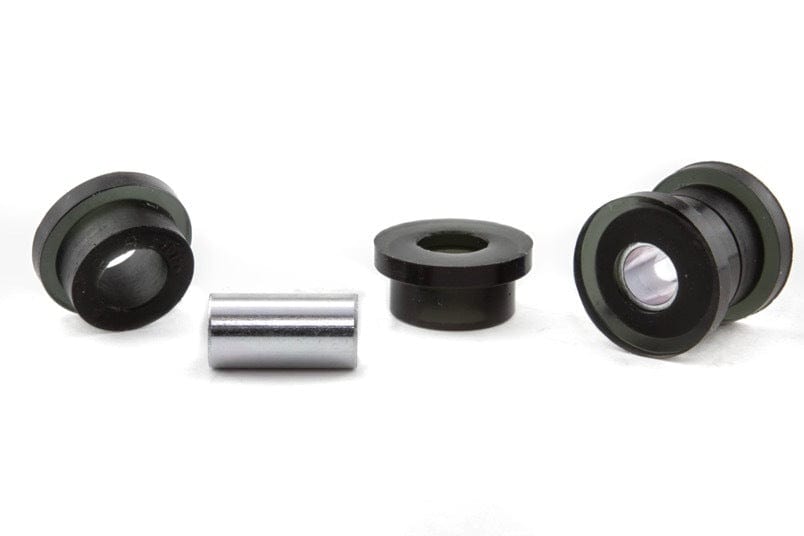

This Whiteline Rear Sway Bar Link Outer Bushing fits the 1991-2007 Toyota Land Cruiser Base (J80/J100/UZJ100W). Position: rear. Whiteline part number: W22107. In the box: 4 bushings and 2 tubes. Application note: Sway bar eyelet: 2 piece bushing design.

A sway bar link has a bushing at each end where it connects to the bar and the suspension, and those bushings let the link pivot. When they are soft or worn, the bar takes up slack before it begins resisting body roll, which feels like a delay in turn-in and shows up as clunking. Replacing them restores a firm connection. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect an easy job of about 1 hour. It does not require a wheel alignment. Other Whiteline parts we list for the Land Cruiser: Front Steering Rack And Pinion Mount Bushing, Rear Essential Vehicle Kit, and Heavy Duty Blade Adjustable 33mm Front Sway Bar.

Features

  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W22107
Part Name Sway Bar Link Bushing
Vehicle 1991-2007 Toyota Land Cruiser Base
Chassis Code J80/J100/UZJ100W
Bushing Color Black
Bushing Material Polyurethane
Durometer 72
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 1

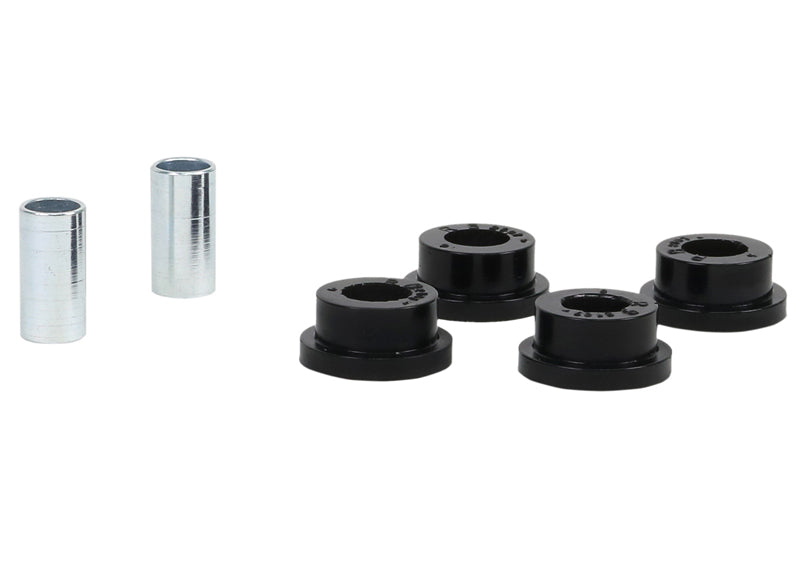

Kit Contents 4 Bushings, 2 Tubes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Sway bar eyelet - 2 piece bushing design

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1991ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
1992ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
1993ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
1994ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
1995ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
1996ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
1997ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
1998ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
1999ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
2000ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
2001ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
2002ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
2003ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
2004ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
2005ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
2006ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
2007ToyotaLand Cruiser4WDSway bar eyelet - 2 piece bushing design
