Product Details

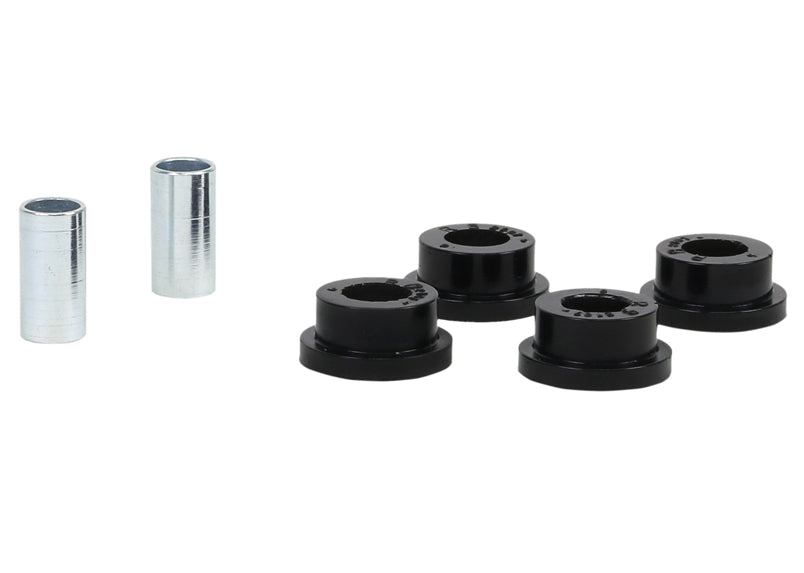

This Whiteline Rear Sway Bar Link Outer Bushing fits the 1987 Toyota Corolla FX, FX16, FX16 GTS (E80). In the box: 4 bushings and 2 tubes. Position: rear. Order it as part number W22107. Application note: Sway bar eyelet: 2 piece bushing design.
A sway bar link has a bushing at each end where it connects to the bar and the suspension, and those bushings let the link pivot. When they are soft or worn, the bar takes up slack before it begins resisting body roll, which feels like a delay in turn-in and shows up as clunking. Replacing them restores a firm connection. The polyurethane used here deflects much less than the original rubber under the same load.
Whiteline rates the install as easy and lists about 1 hour. A wheel alignment is not required. To go with it on the Corolla, see 12mm Adjustable Front Camber Bolts, Front Sway Bar Washer Kit, and Front Strut Tower Brace Quick Release Kit.
Features
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
| Part Number | W22107 |
| Part Name | Sway Bar Link Bushing |
| Vehicle | 1987 Toyota Corolla FX, FX16, FX16 GTS |
| Chassis Code | E80 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 72 |
| Grade Type | Regular |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Sway bar eyelet - 2 piece bushing design |
