Product Details

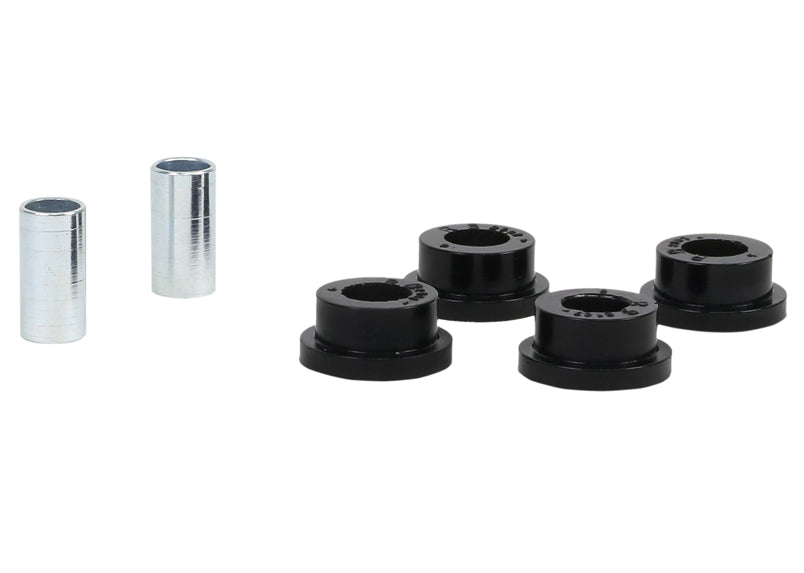

This Whiteline Rear Sway Bar Link Outer Bushing fits the 1980-1992 Toyota Corolla Base, DLX (E70/E80). The kit contains 4 bushings and 2 tubes. The part number is W22107. Position: rear. Whiteline's note for this fit: Sway bar eyelet: 2 piece bushing design.
The bar can only resist roll as well as its links are attached. A worn link bushing adds slack that the bar must take up before it works, so replacing it is a low-cost way to bring back sharp response. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated easy, with about 1 hour of work listed. No alignment is needed afterward. We also list 12mm Adjustable Front Camber Bolts, Front Sway Bar Washer Kit, and Front Strut Tower Brace Quick Release Kit for the Corolla.
Features
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
| Part Number | W22107 |
| Part Name | Sway Bar Link Bushing |
| Vehicle | 1980-1992 Toyota Corolla Base, DLX |
| Chassis Code | E70/E80 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 72 |
| Grade Type | Regular |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Sway bar eyelet - 2 piece bushing design |
