Product Details

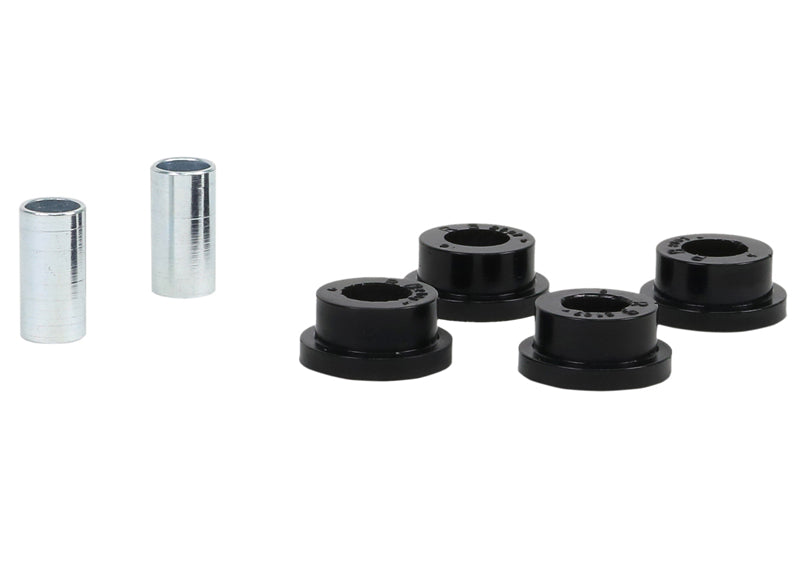

This Whiteline Rear Sway Bar Link Outer Bushing fits the 1980-1991 Toyota Corolla SR5 (E70/E80). Application note: Sway bar eyelet: 2 piece bushing design. This part is for the rear of the vehicle. Chassis code: E70/E80. Whiteline part number: W22107. You receive 4 bushings and 2 tubes.

The bar can only resist roll as well as its links are attached. A worn link bushing adds slack that the bar must take up before it works, so replacing it is a low-cost way to bring back sharp response. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as easy and lists about 1 hour. A wheel alignment is not required. To go with it on the Corolla, see 12mm Adjustable Front Camber Bolts, Front Sway Bar Washer Kit, and Front Strut Tower Brace Quick Release Kit.

Features

  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
Part Number W22107
Part Name Sway Bar Link Bushing
Vehicle 1980-1991 Toyota Corolla SR5
Chassis Code E70/E80
Bushing Color Black
Bushing Material Polyurethane
Durometer 72
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings, 2 Tubes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Sway bar eyelet - 2 piece bushing design

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1980ToyotaCorollaSway bar eyelet - 2 piece bushing design
1981ToyotaCorollaSway bar eyelet - 2 piece bushing design
1982ToyotaCorollaSway bar eyelet - 2 piece bushing design
1983ToyotaCorollaSway bar eyelet - 2 piece bushing design
1984ToyotaCorollaSway bar eyelet - 2 piece bushing design
1985ToyotaCorollaSway bar eyelet - 2 piece bushing design
1986ToyotaCorollaSway bar eyelet - 2 piece bushing design
1987ToyotaCorollaSway bar eyelet - 2 piece bushing design
1988ToyotaCorollaSway bar eyelet - 2 piece bushing design
1989ToyotaCorollaSway bar eyelet - 2 piece bushing design
1990ToyotaCorollaSway bar eyelet - 2 piece bushing design
1991ToyotaCorollaSway bar eyelet - 2 piece bushing design
