Product Details

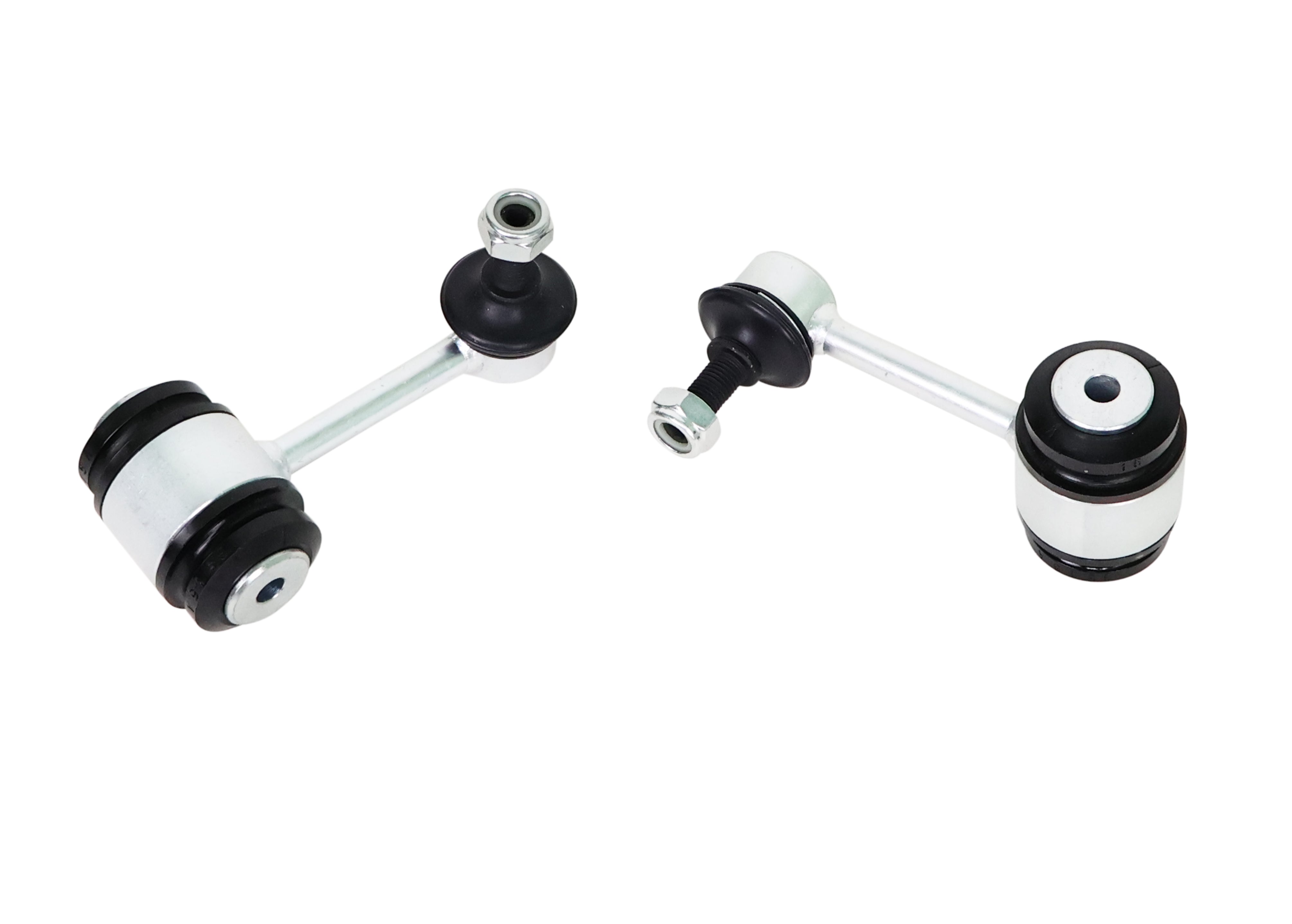

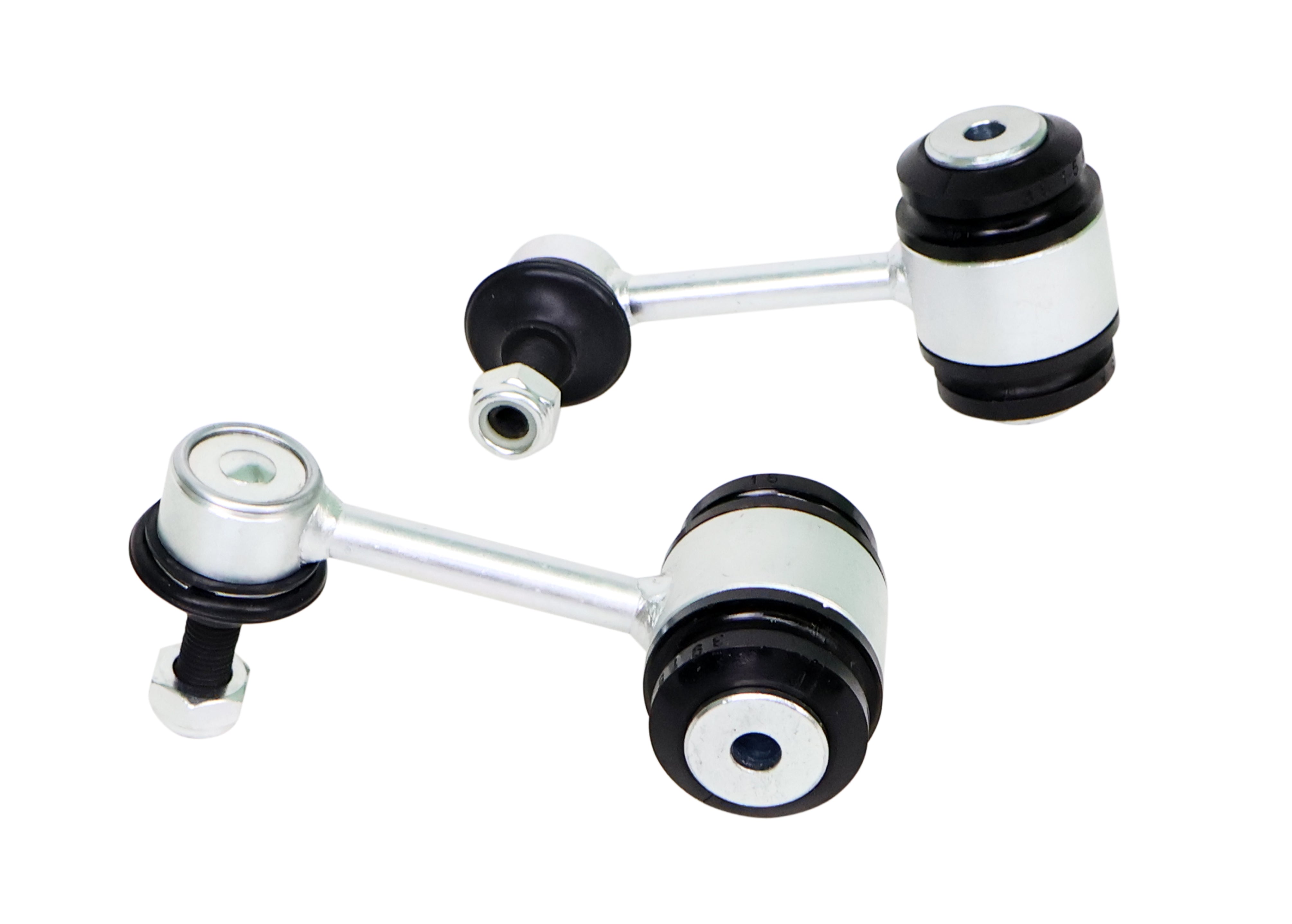

This Whiteline Rear Sway Bar Link Kit fits the 2018-2024 Volkswagen Tiguan. Position: rear. The kit contains 2 links. The part number is KLC251.
The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. It keeps a set length matched to the application, so there is nothing to measure or set during the install.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the Tiguan: Caster/Camber Offset Front Strut Mount Kit, 24mm Sway Bar Mount Bushing Kit, and Rear Lower Outer Control Arm Bushing Kit.
Features
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Hardware: Also in the box: locking nuts.
- Install guide: An install guide comes in the box.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
Specifications
| Part Number | KLC251 |
| Part Name | Sway Bar Links |
| Vehicle | 2018-2024 Volkswagen Tiguan |
| Chassis Code | AD1 |
| Adjustable | No |
| Bolt Thread Diameter | 10 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 94 mm |
| Locking Nuts Included | Yes |
| Pre-Greased | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | - |
