Product Details

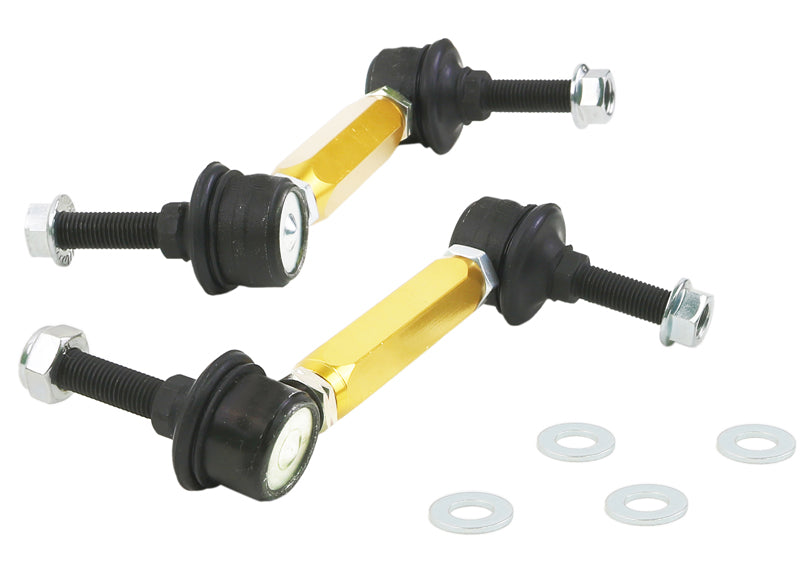

This Whiteline Rear Sway Bar Link Kit - 10mm Ball Stud fits the 2016-2019 BMW 420i Gran Coupe. The part number is KLC140-135. This part is for the rear of the vehicle. Included: 2 links. Whiteline's note for this fit: Adjustable extra heavy duty.
The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment.
Features
- Install guide: Instructions for fitting are packed in the box.
- Easy to fit: Made with the installer in mind, so it goes in without special equipment.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Hardware: Hardware supplied: locking nuts and washers.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
| Part Number | KLC140-135 |
| Part Name | Sway Bar Links |
| Vehicle | 2016-2019 BMW 420i Gran Coupe |
| Chassis Code | F36 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 135-160 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm |
