Product Details

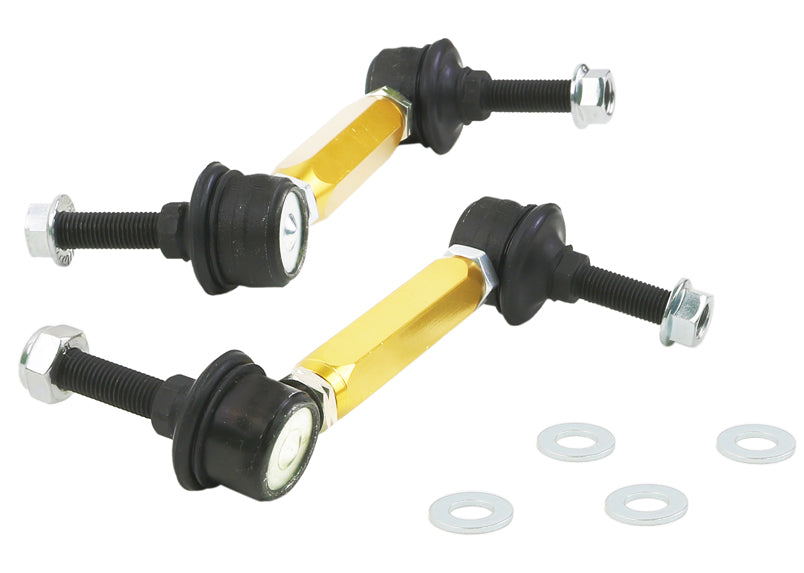

This Whiteline Rear Sway Bar Link Kit - 10mm Ball Stud fits the 2015-2020 BMW M4. Whiteline part number: KLC140-135. It is listed for the F82/F83 chassis. Position: rear. In the box: 2 links. Whiteline's note for this fit: Adjustable extra heavy duty.
The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Whiteline rates the install as moderate and lists about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the BMW M4: Front Sway Bar Link Assembly, Blade Adjustable 30mm Front Sway Bar, and 2-Point Adjustable 26mm Rear Sway Bar.
Features
- Material: Built from aluminum alloy.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Install guide: Written install instructions are included with the part.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
| Part Number | KLC140-135 |
| Part Name | Sway Bar Links |
| Vehicle | 2015-2020 BMW M4 |
| Chassis Code | F82/F83 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 135-160 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm |
