Product Details

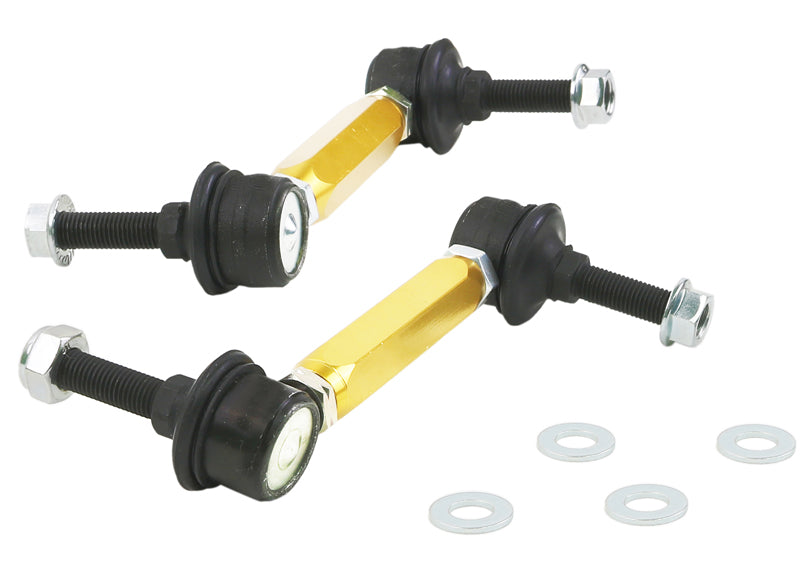

This Whiteline Rear Sway Bar Link Kit - 10mm Ball Stud fits the 2012-2019 BMW 118i. Part number KLC140-135. Included: 2 links. Whiteline's note for this fit: Adjustable extra heavy duty. Position: rear.
A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment.
Features
- Easy to fit: Made with the installer in mind, so it goes in without special equipment.
- Install guide: An install guide comes in the box.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Hardware: Hardware supplied: locking nuts and washers.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
Specifications
| Part Number | KLC140-135 |
| Part Name | Sway Bar Links |
| Vehicle | 2012-2019 BMW 118i |
| Chassis Code | F20/F21 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 135-160 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm |
