Product Details

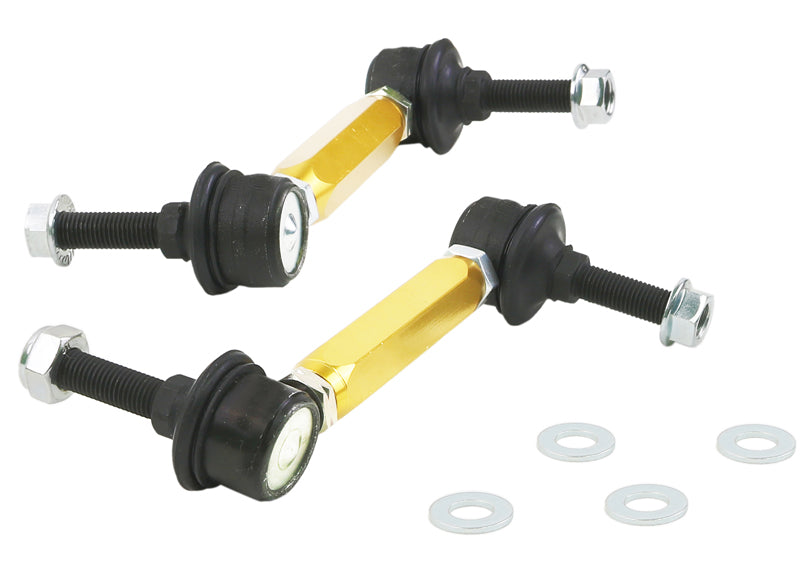

This Whiteline Rear Sway Bar Link Kit - 10mm Ball Stud fits the 2012-2016 BMW 328i xDrive. Application note: Adjustable extra heavy duty. The kit contains 2 links. Position: rear. The part number is KLC140-135.
The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. Other Whiteline parts we list for the 328i xDrive: Adjustable Sway Bar Vehicle Link Kit.
Features
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Material: Built from aluminum alloy.
- Install guide: Whiteline packs an install guide with it.
- Easy to fit: Designed so the install needs no specialized skills or tools.
- Hardware: Also in the box: locking nuts and washers.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
Specifications
| Part Number | KLC140-135 |
| Part Name | Sway Bar Links |
| Vehicle | 2012-2016 BMW 328i xDrive |
| Chassis Code | F30 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 135-160 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm |
