Product Details

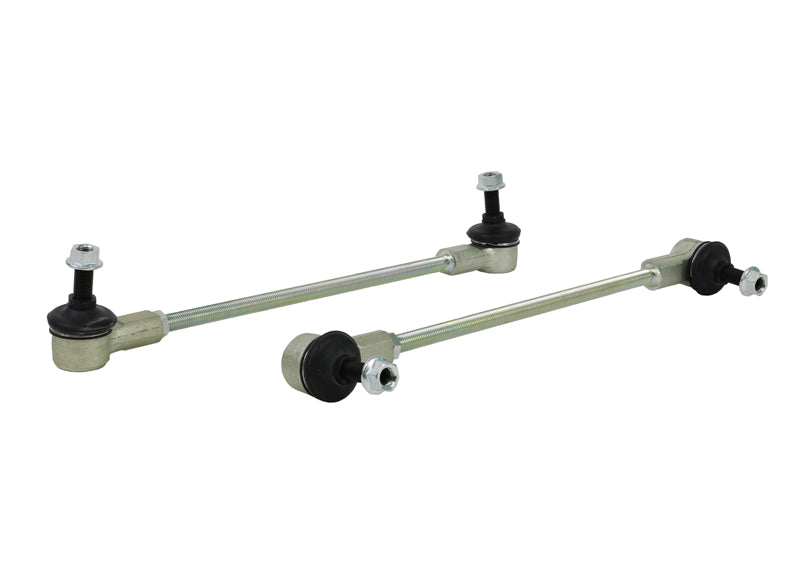

This Whiteline Rear Sway Bar Link fits the 2014-2016 BMW 435i xDrive 4 Series. This part is for the rear of the vehicle. Part number W23180. In the box: 2 links.
A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system.
Expect an easy job of about 1 hour. No alignment is needed afterward. Other Whiteline parts we list for the 435i xDrive 4 Series: Rear Subframe Mount Bushing, Rear Lower Trailing Arm Bushing, and Rear Differential Mount Bushing.
Features
- Install guide: Instructions for fitting are packed in the box.
- Material: Made from steel.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
Specifications
| Part Number | W23180 |
| Part Name | Sway Bar Link |
| Vehicle | 2014-2016 BMW 435i xDrive 4 Series |
| Chassis Code | F32/F33 |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 80-320 mm |
| Material | Steel |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Universal cut to length link - must cut to 76mm |
Fitment for 435i sway bar links
Fits the 2014-2016 BMW 435i xDrive 4 Series. Each model year is listed below.
