Product Details

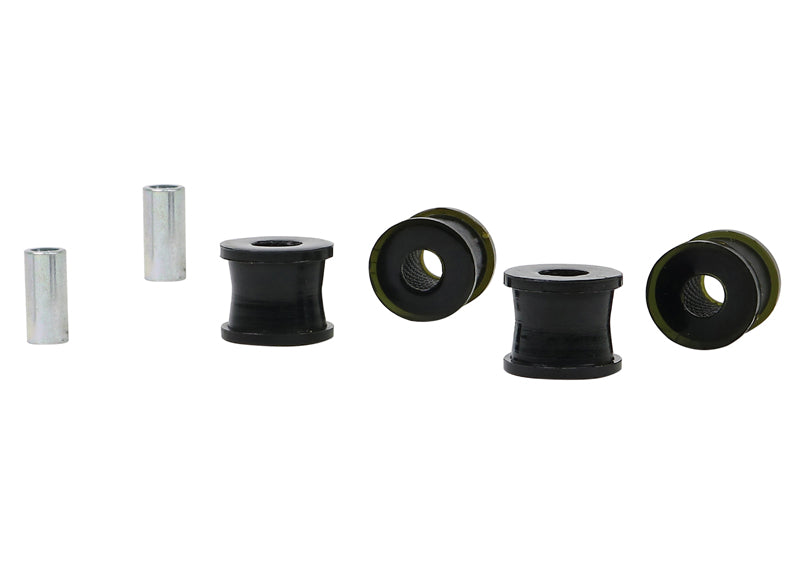

This Whiteline Rear Sway Bar Link Bushing fits the 2001-2006 BMW 325i 3 Series. Order it as part number W23394. Included: 4 bushings, 2 tubes, and grease. It goes on the rear of the vehicle.
A sway bar link has a bushing at each end where it connects to the bar and the suspension, and those bushings let the link pivot. When they are soft or worn, the bar takes up slack before it begins resisting body roll, which feels like a delay in turn-in and shows up as clunking. Replacing them restores a firm connection. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the 325i 3 Series, see Adjustable Front Sway Bar Link, Front Strut Tower Brace, and Rear Sway Bar Link.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
| Part Number | W23394 |
| Part Name | Sway Bar Link Bushing |
| Vehicle | 2001-2006 BMW 325i 3 Series |
| Chassis Code | E46 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 85 |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 4 Bushings, 2 Tubes, Grease |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | - |
