Product Details

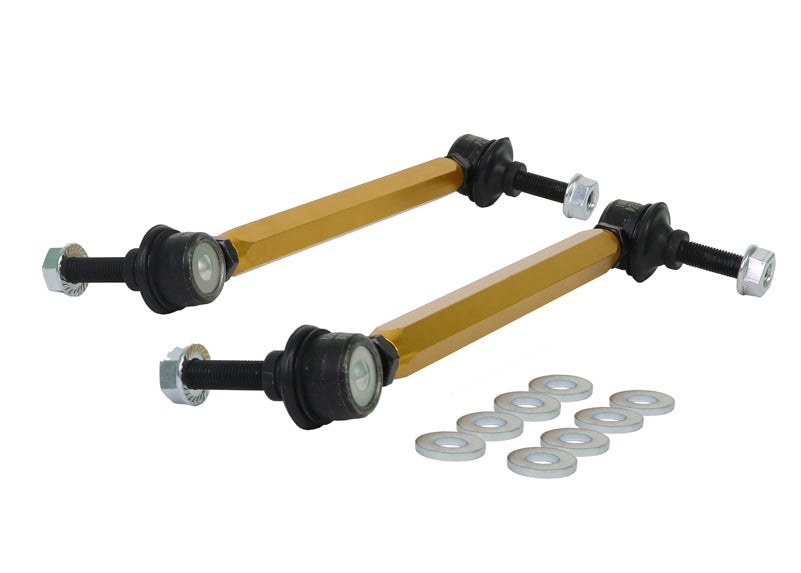

This Whiteline Front Sway Bar Link Assembly fits the 2016-2018 BMW 330i 3 Series. Whiteline's note for this fit: Adjustable extra heavy duty. The part number is KLC140-255. Position: front. Included: 2 links.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. To go with it on the 330i 3 Series, see Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Lower Trailing Arm Bushing.
Features
- Hardware: The kit includes locking nuts and washers.
- Install guide: An install guide comes in the box.
- Construction: High-strength alloy gives the strength needed without much weight.
- Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
- Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
Specifications
| Part Number | KLC140-255 |
| Part Name | Sway Bar Link |
| Vehicle | 2016-2018 BMW 330i 3 Series |
| Chassis Code | F30 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 250-275 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm. |
Fitment for 330i sway bar links
Fits the 2016-2018 BMW 330i 3 Series. Each model year is listed below.
