Product Details

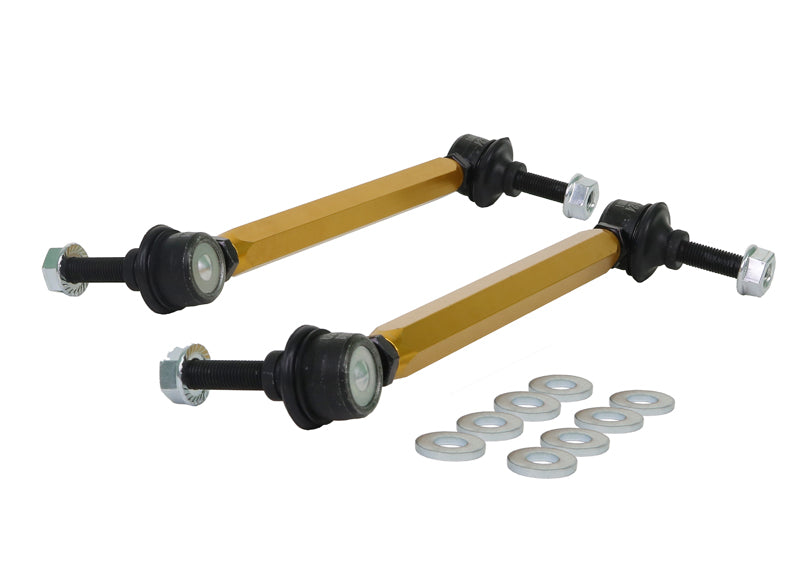

This Whiteline Front Sway Bar Link Assembly fits the 2016-2018 BMW 330e 3 Series. Whiteline's note for this fit: Adjustable extra heavy duty. The part number is KLC140-255. This part is for the front of the vehicle. You receive 2 links.
Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Expect a moderate job of about 1 hour. A wheel alignment is not required. To go with it on the 330e 3 Series, see Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Lower Trailing Arm Bushing.
Features
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Install guide: An install guide comes in the box.
- Construction: Alloy construction keeps the weight down while handling the loads.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Hardware: Hardware supplied: locking nuts and washers.
- Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
Specifications
| Part Number | KLC140-255 |
| Part Name | Sway Bar Link |
| Vehicle | 2016-2018 BMW 330e 3 Series |
| Chassis Code | F30 |
| Drivetrain | RWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 250-275 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm. |
Fitment for 330e sway bar links
Fits the 2016-2018 BMW 330e 3 Series. Each model year is listed below.
