Product Details

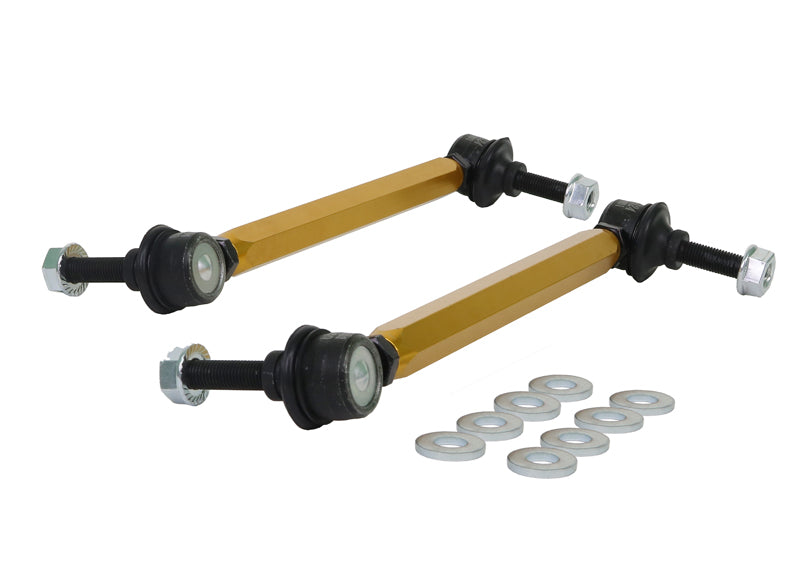

This Whiteline Front Sway Bar Link Assembly fits the 2014-2016 BMW 228i 2 Series. This part is for the front of the vehicle. Whiteline's note for this fit: Adjustable extra heavy duty. In the box: 2 links. Part number KLC140-255.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Expect a moderate job of about 1 hour. A wheel alignment is not required. Working on the same car? We also list Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Lower Trailing Arm Bushing for the 228i 2 Series.
Features
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
- Construction: Made from strong, light alloy.
- Hardware: The kit includes locking nuts and washers.
- Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
- Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
- Preload-free setup: Setting the length on the car lets the bar rest without preload.
Specifications
| Part Number | KLC140-255 |
| Part Name | Sway Bar Link |
| Vehicle | 2014-2016 BMW 228i 2 Series |
| Chassis Code | F22/F23 |
| Drivetrain | RWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 250-275 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm. |
Fitment for 228i sway bar links
Fits the 2014-2016 BMW 228i 2 Series. Each model year is listed below.
