Product Details

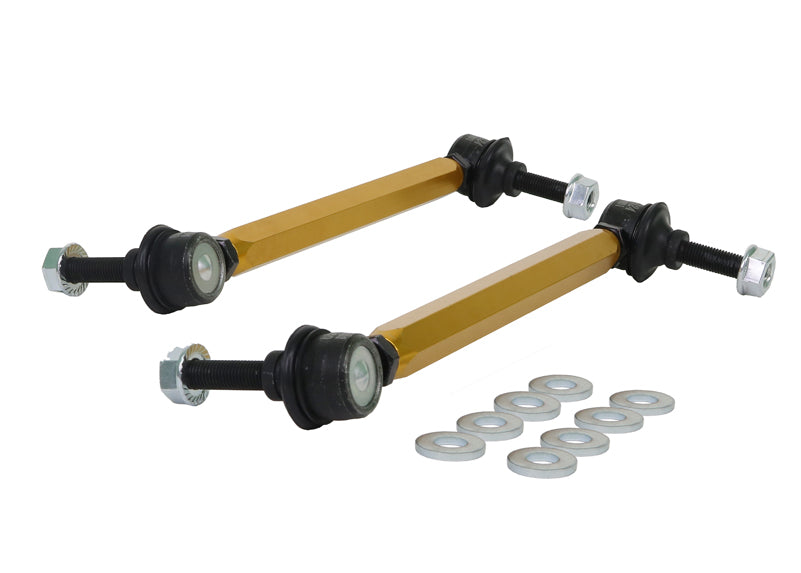

This Whiteline Front Sway Bar Link Assembly fits the 2012-2013 BMW 135i 1 Series. The part number is KLC140-255. Whiteline's note for this fit: Adjustable extra heavy duty. It goes on the front of the vehicle. Included: 2 links.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the 135i 1 Series, see Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Rear Lower Trailing Arm Bushing.
Features
- Install guide: An install guide comes in the box.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Hardware: Supplied with locking nuts and washers.
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
- Anodized alloy: The alloy is anodized, adding a durable protective layer.
- Construction: High-strength alloy gives the strength needed without much weight.
Specifications
| Part Number | KLC140-255 |
| Part Name | Sway Bar Link |
| Vehicle | 2012-2013 BMW 135i 1 Series |
| Chassis Code | E82/E88 |
| Drivetrain | RWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 250-275 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm. |
Fitment for 135i sway bar links
Fits the 2012-2013 BMW 135i 1 Series. Each model year is listed below.
