Product Details

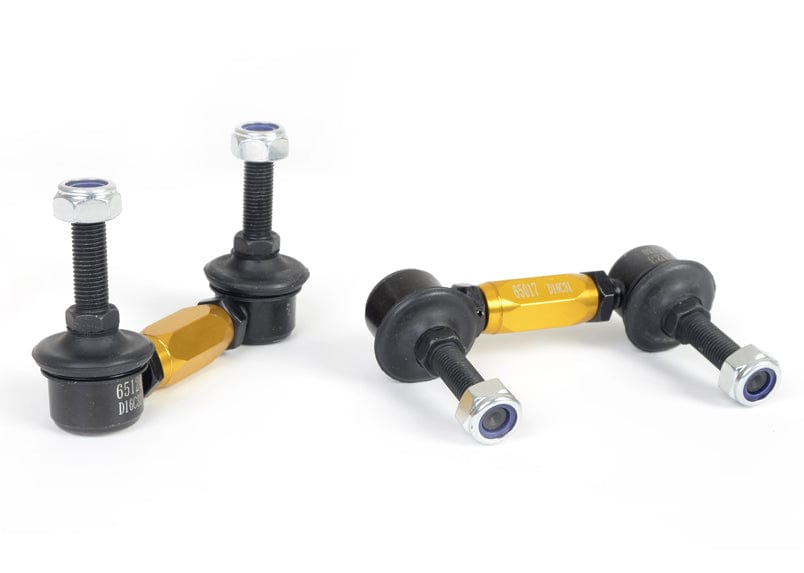

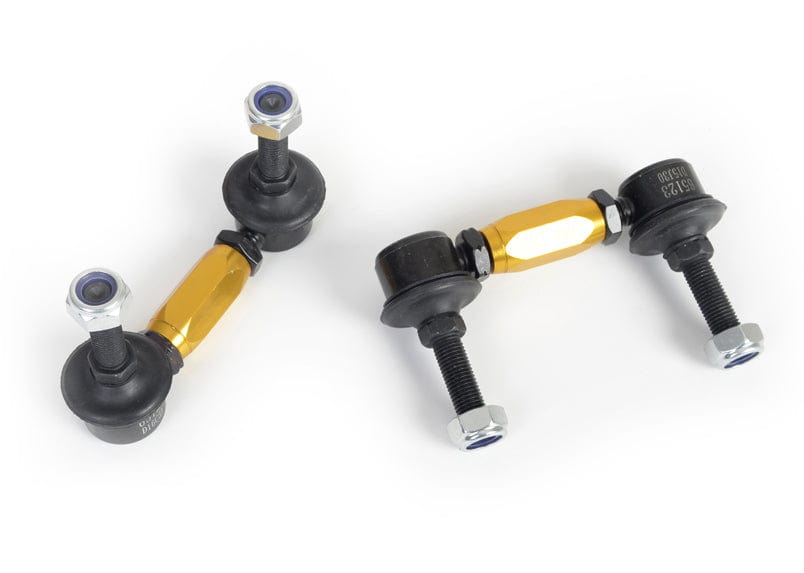

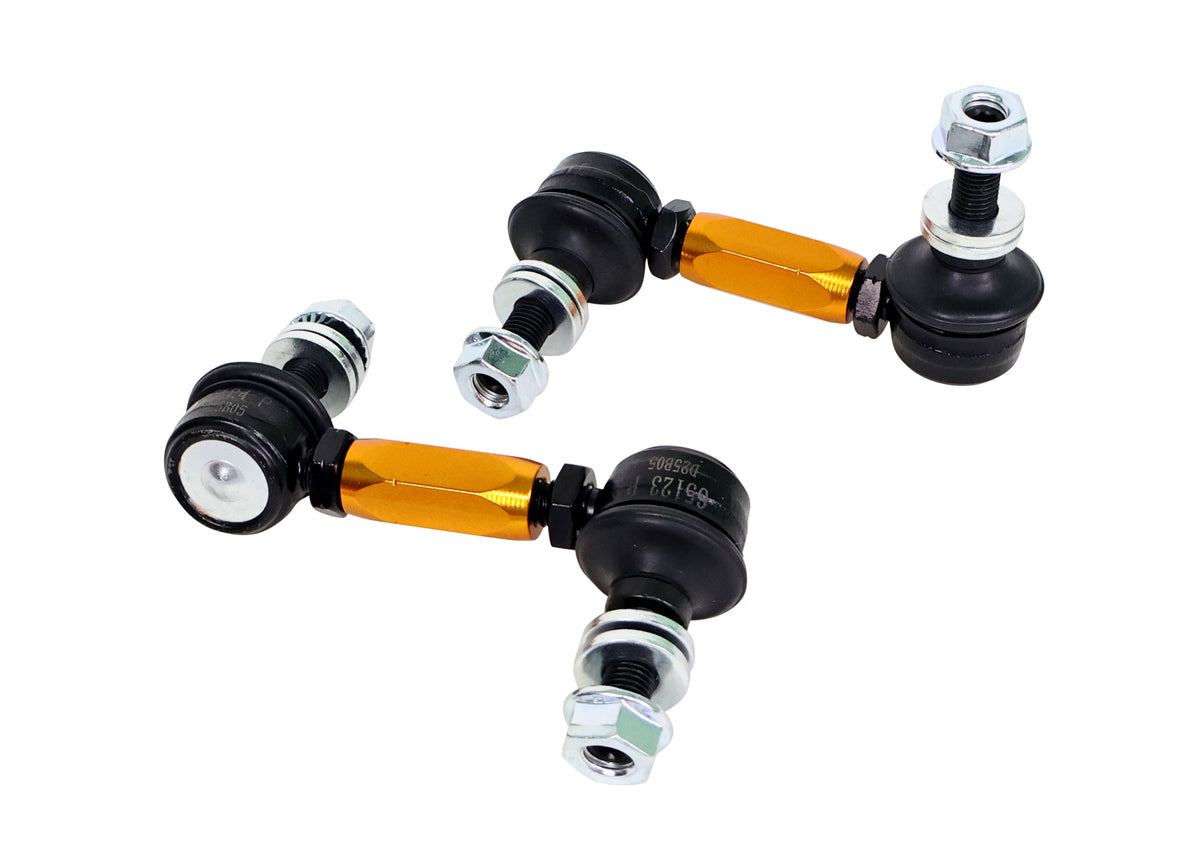

This Whiteline Adjustable Rear Sway Bar Link fits the 2010-2020 Dodge Journey Base (JC49). Chassis code: JC49. Application note: Adjustable Extra Heavy Duty. The kit contains 2 links. Position: rear. Order it as part number KLC144.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this rear link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. Other Whiteline parts we list for the Journey: 14mm Adjustable Front Camber Bolts, Adjustable Front Sway Bar Link, and Front Control Arm Lower Inner Rear Bushing.

Features

  • Install guide: Instructions for fitting are packed in the box.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Hardware: Hardware supplied: locking nuts and washers.
Specifications
Part Number KLC144
Part Name Sway Bar Link
Vehicle 2010-2020 Dodge Journey Base
Drivetrain FWD/AWD
Chassis Code JC49
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2010DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2011DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2011DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2012DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2012DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2013DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2013DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2014DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2014DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2015DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2015DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2016DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2016DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2017DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2017DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2018DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2018DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2019DodgeJourneyFWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2019DodgeJourneyAWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
