Product Details

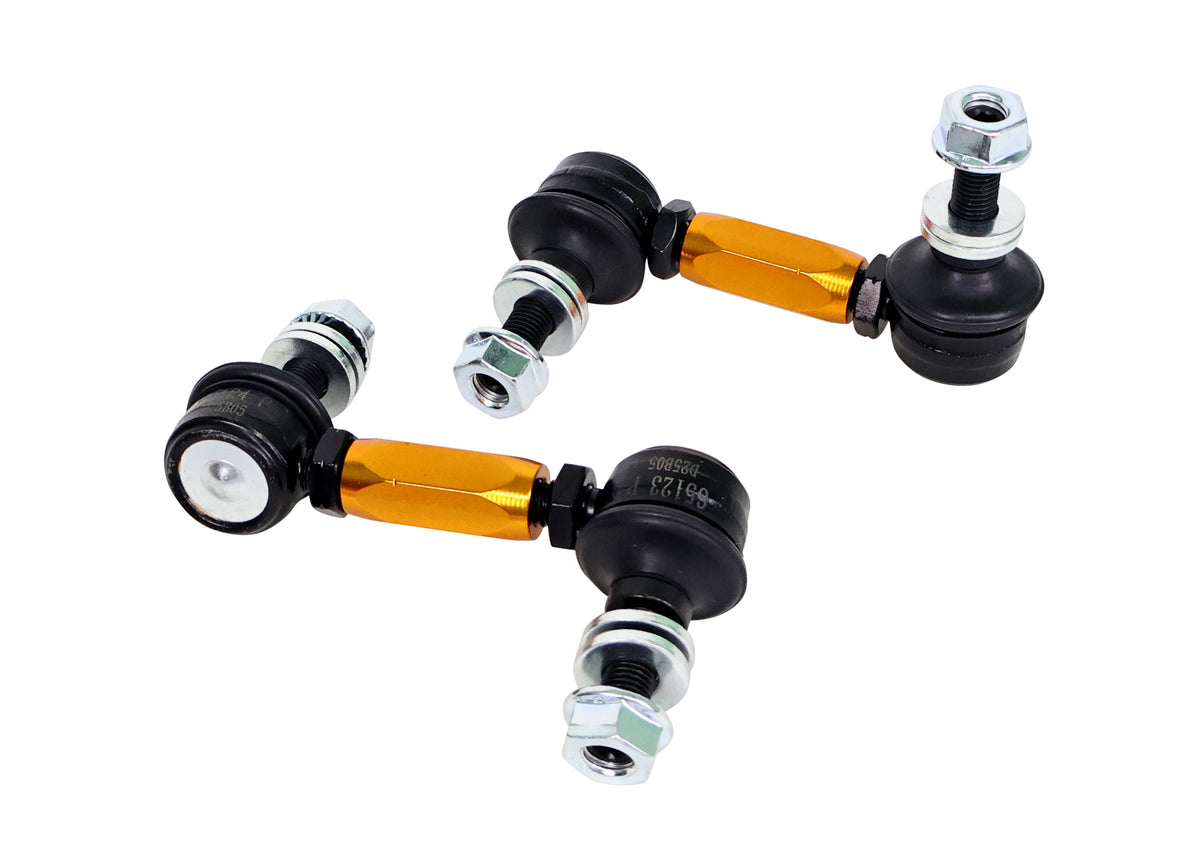

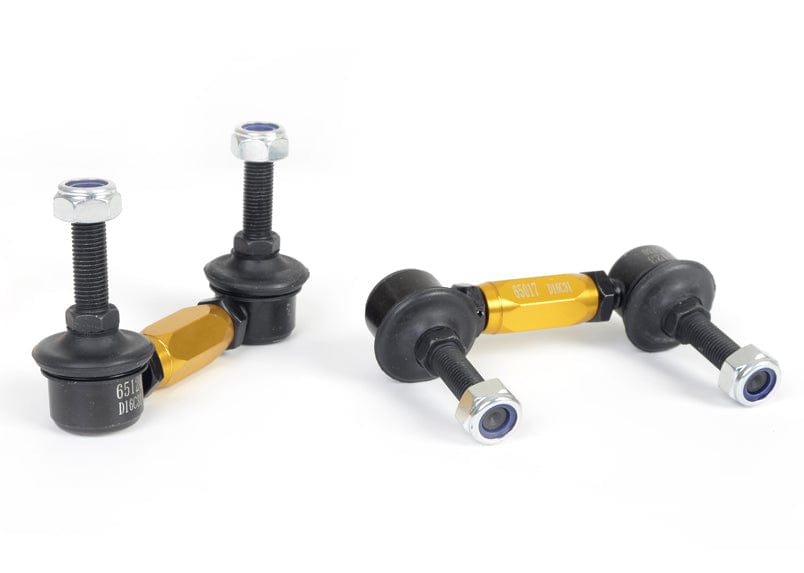

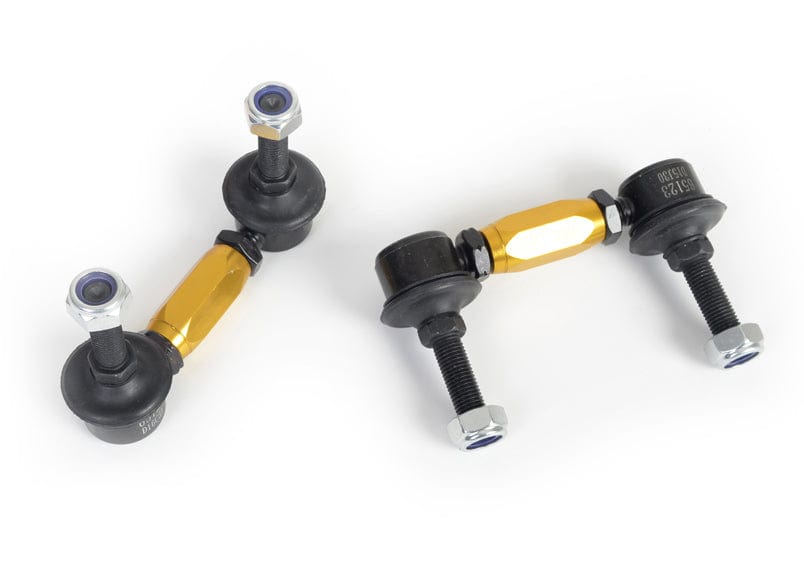

This Whiteline Adjustable Rear Sway Bar Link fits the 2001-2005 Toyota RAV4 Base (XA20). Part number KLC144. In the box: 2 links. Application note: Adjustable Extra Heavy Duty. Placement: rear.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. No alignment is needed afterward. We also list Front Control Arm Lower Inner Front Bushing, 15mm Adjustable Front Camber Bolts, and Front Upper Shock Absorber Bushing Kit for the RAV4.

Features

  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Install guide: An install guide comes in the box.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Construction: High-strength alloy gives the strength needed without much weight.
Specifications
Part Number KLC144
Part Name Sway Bar Link
Vehicle 2001-2005 Toyota RAV4 Base
Drivetrain FWD/AWD
Chassis Code XA20
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001ToyotaRAV4FWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2001ToyotaRAV4AWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2002ToyotaRAV4FWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2002ToyotaRAV4AWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2003ToyotaRAV4FWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2003ToyotaRAV4AWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2004ToyotaRAV4FWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2004ToyotaRAV4AWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2005ToyotaRAV4FWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
2005ToyotaRAV4AWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 10mm.
