Product Details

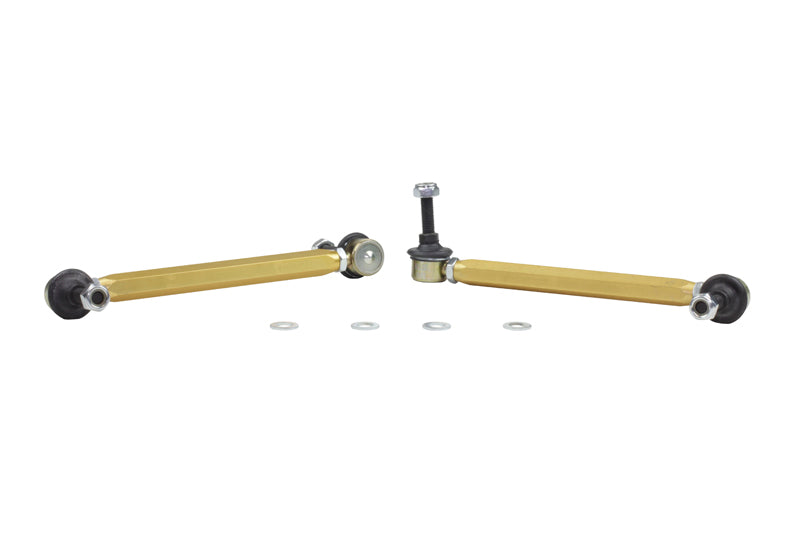

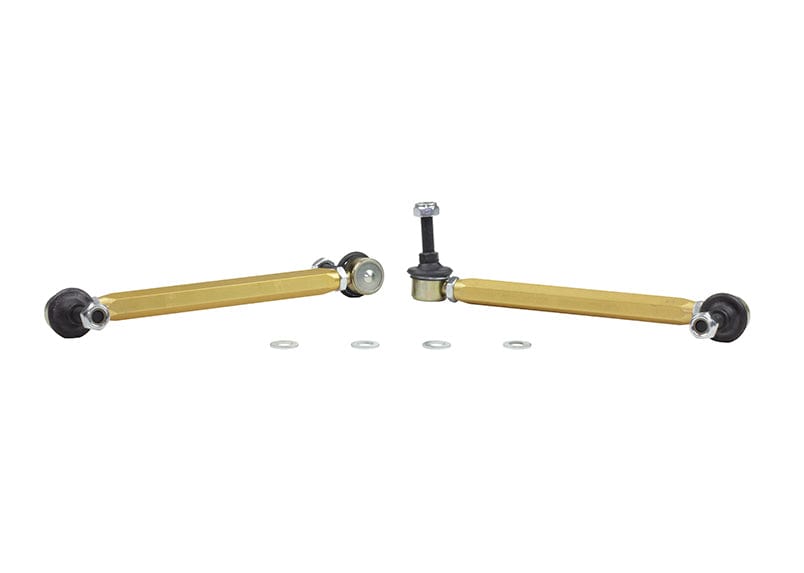

This Whiteline Adjustable Rear Sway Bar Link fits the 2007-2012 Lexus RX350 (XU30). You receive 2 links. The part number is KLC106. Position: rear. Chassis code: XU30.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. To go with it on the RX350, see 17mm Adjustable Front Camber Bolts and Front Control Arm Lower Inner Rear Bushing.

Features

  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Install guide: Instructions for fitting are packed in the box.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
Specifications
Part Number KLC106
Part Name Sway Bar Link
Vehicle 2007-2012 Lexus RX350
Drivetrain FWD/AWD
Chassis Code XU30
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 230-255 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007LexusRX350FWD
2007LexusRX350AWD
2008LexusRX350FWD
2008LexusRX350AWD
2009LexusRX350FWD
2009LexusRX350AWD
2010LexusRX350FWD
2010LexusRX350AWD
2011LexusRX350FWD
2011LexusRX350AWD
2012LexusRX350FWD
2012LexusRX350AWD
