Product Details

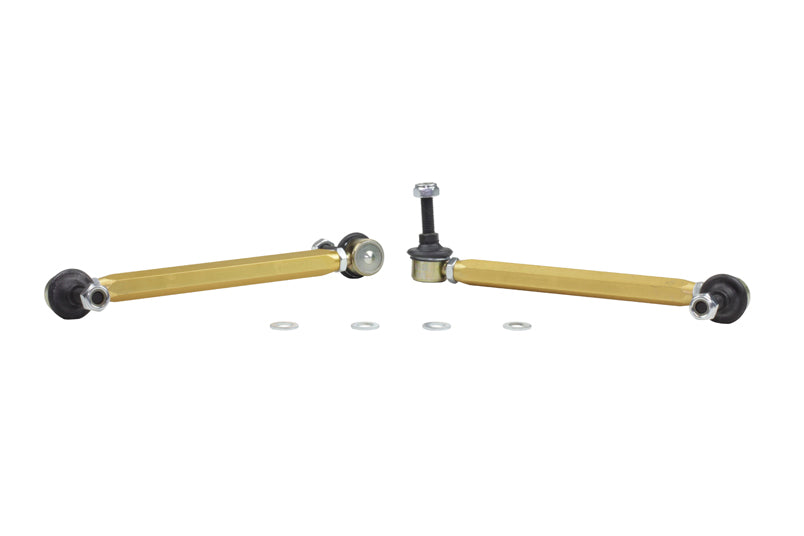

This Whiteline Adjustable Rear Sway Bar Link fits the 2004-2006 Lexus RX330 (XU30). The part number is KLC106. Position: rear. The kit contains 2 links.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. We also list 17mm Adjustable Front Camber Bolts and Front Control Arm Lower Inner Rear Bushing for the RX330.

Features

  • Construction: Made from strong, light alloy.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
Specifications
Part Number KLC106
Part Name Sway Bar Link
Vehicle 2004-2006 Lexus RX330
Drivetrain FWD/AWD
Chassis Code XU30
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 230-255 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004LexusRX330FWD
2004LexusRX330AWD
2005LexusRX330FWD
2005LexusRX330AWD
2006LexusRX330FWD
2006LexusRX330AWD
