Product Details

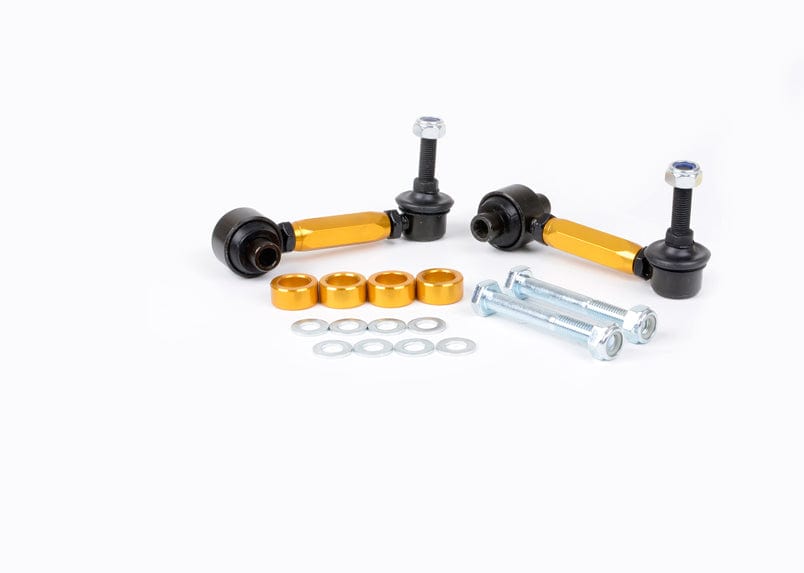

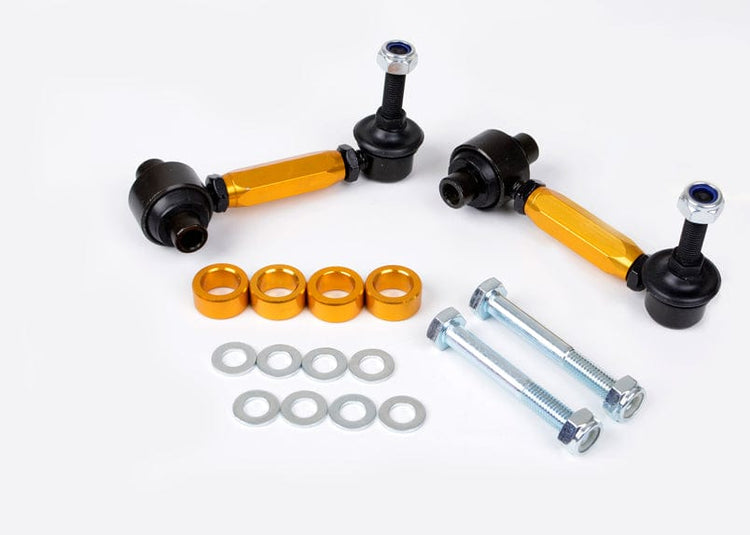

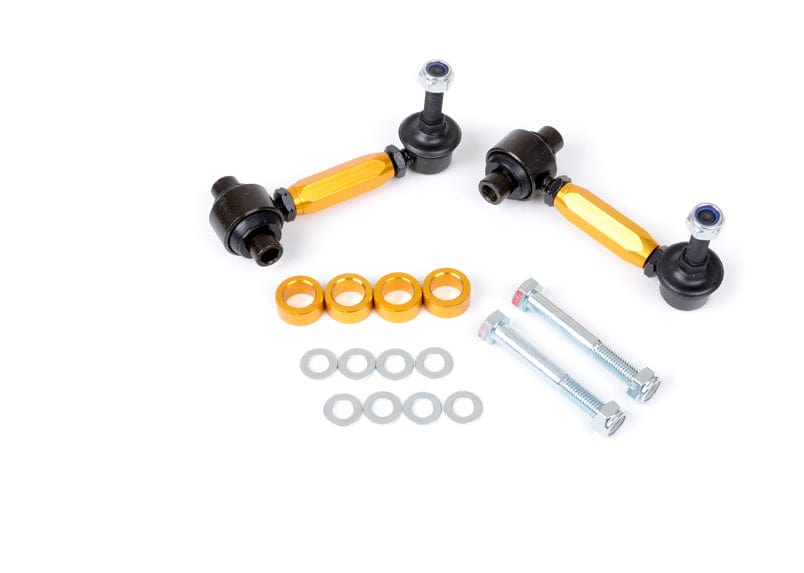

This Whiteline Adjustable Rear Sway Bar Link (110-135mm Length) fits the 2013-2015 Subaru XV Crosstrek Limited, Premium (GP). Order it as part number KLC200. Placement: rear. In the box: 2 links, 4 spacers, 2 bolts, 8 washers, and 2 nuts. Whiteline's note for this fit: Adjustable Extra Heavy Duty.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. We also list Front Control Arm Lower Inner Front Bushing, 14mm Adjustable Front Camber Bolts, and Front Strut Tower Brace Quick Release Kit for the XV Crosstrek.

Features

  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Hardware: Supplied with locking nuts and washers.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Finish: The metal parts are powder coated for durability.
Specifications
Part Number KLC200
Part Name Sway Bar Link
Vehicle 2013-2015 Subaru XV Crosstrek Limited, Premium
Chassis Code GP
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushing Color Black
Bushing Material Polyurethane
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Spacers, 2 Bolts, 8 Washers, 2 Nuts
Length 110-135 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013SubaruCrosstrekAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2014SubaruCrosstrekAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2015SubaruCrosstrekAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
