Product Details

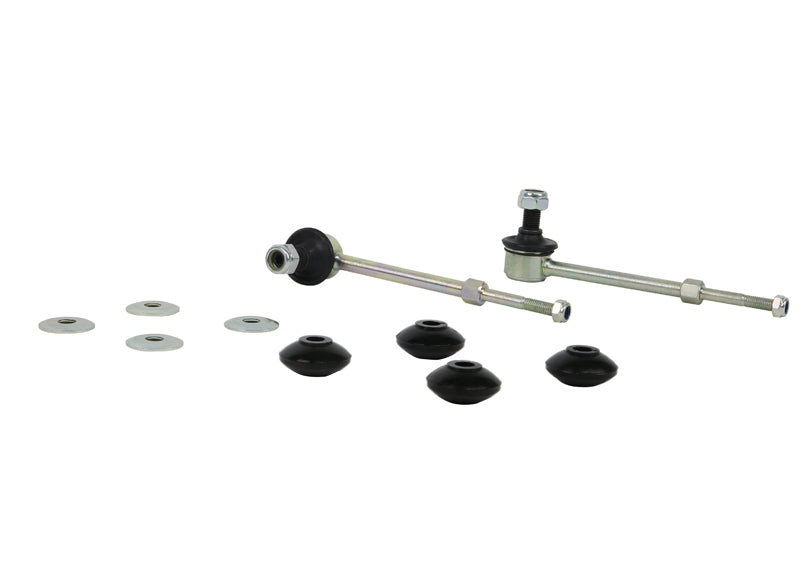

This Whiteline Rear Sway Bar Link fits the 2010-2016 Lexus GX460 Premium (J150). Whiteline's note for this fit: Pair: vehicle specific ball/bushing style link. Whiteline part number: W23440. Position: rear. Included: 2 links, 4 bushings, and 4 washers.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system.

Installation is rated easy, with about 1 hour of work listed. It does not require a wheel alignment. We also list Front Sway Bar Link, Front Upper Control Arm Bushing Kit, and Front Strut Mount Bushing for the GX460.

Features

  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number W23440
Part Name Sway Bar Link
Vehicle 2010-2016 Lexus GX460 Premium
Chassis Code J150
Bolt Thread Diameter 12 mm
Bushing Material Polyurethane
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Bushings, 4 Washers
Length 140 mm
Vehicle Placement Rear
Wheel Alignment Required No
Notes Pair - vehicle specific ball/bushing style link

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010LexusGX4604WDPair - vehicle specific ball/bushing style link
2011LexusGX4604WDPair - vehicle specific ball/bushing style link
2012LexusGX4604WDPair - vehicle specific ball/bushing style link
2013LexusGX4604WDPair - vehicle specific ball/bushing style link
2014LexusGX4604WDPair - vehicle specific ball/bushing style link
2015LexusGX4604WDPair - vehicle specific ball/bushing style link
2016LexusGX4604WDPair - vehicle specific ball/bushing style link
