Product Details

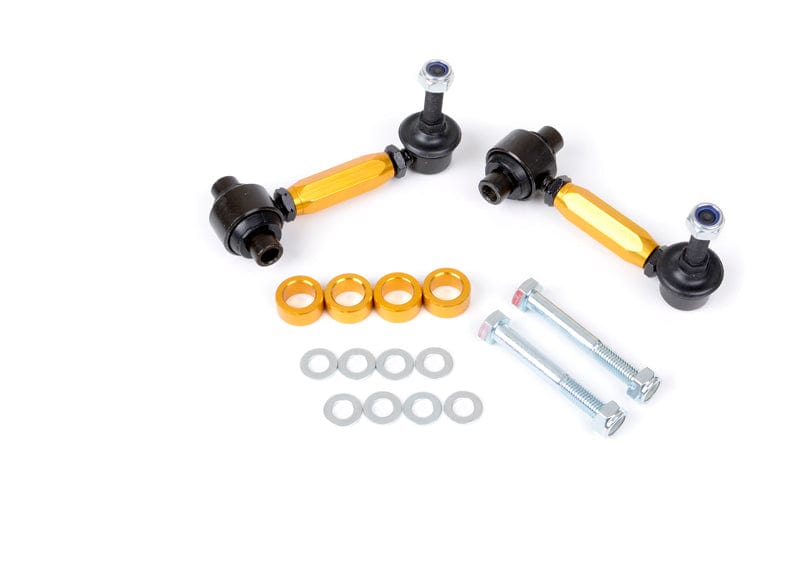

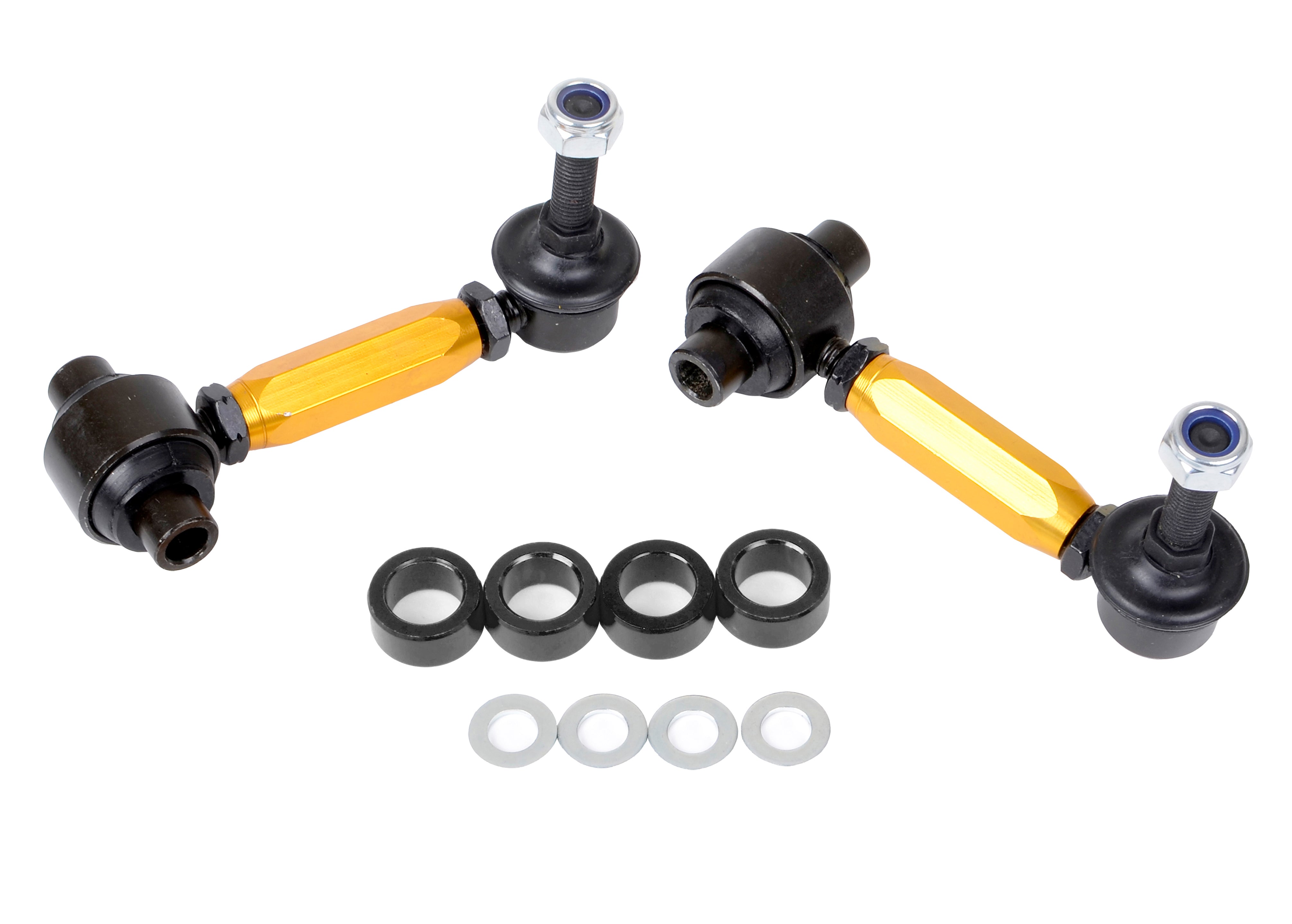

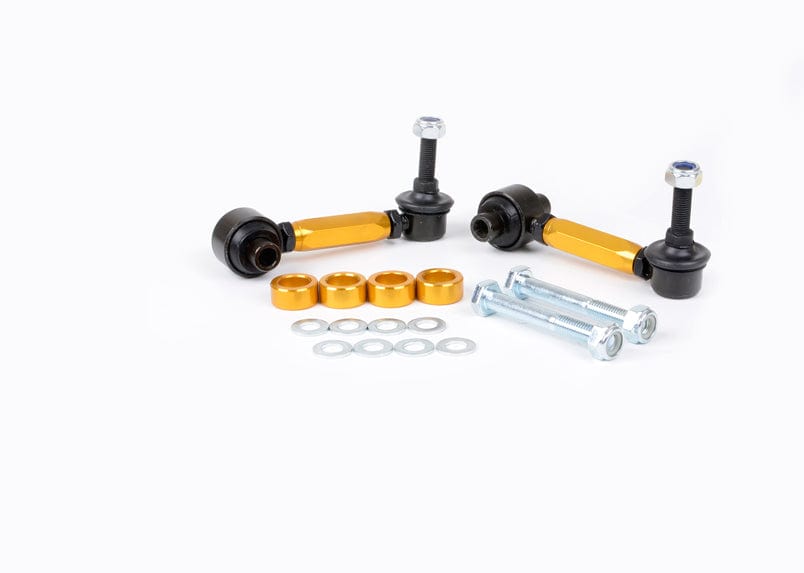

This Whiteline Adjustable Rear Sway Bar Link fits the 2010-2013 Subaru Forester XT Premium (SH). Part number KLC200. Whiteline's note for this fit: Adjustable Extra Heavy Duty. It goes on the rear of the vehicle. You receive 2 links, 4 spacers, 2 bolts, 8 washers, and 2 nuts.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. Other Whiteline parts we list for the Forester: 14mm Adjustable Front Camber Bolts, Adjustable Sway Bar Vehicle Link Kit, and Rear Subframe Mount Bushing.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Hardware: Hardware supplied: locking nuts and washers.
  • Construction: The body is made from high-grade alloy for strength without added weight.
Specifications
Part Number KLC200
Part Name Sway Bar Link
Vehicle 2010-2013 Subaru Forester XT Premium
Chassis Code SH
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushing Color Black
Bushing Material Polyurethane
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Spacers, 2 Bolts, 8 Washers, 2 Nuts
Length 110-135 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2011SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2012SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2013SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
